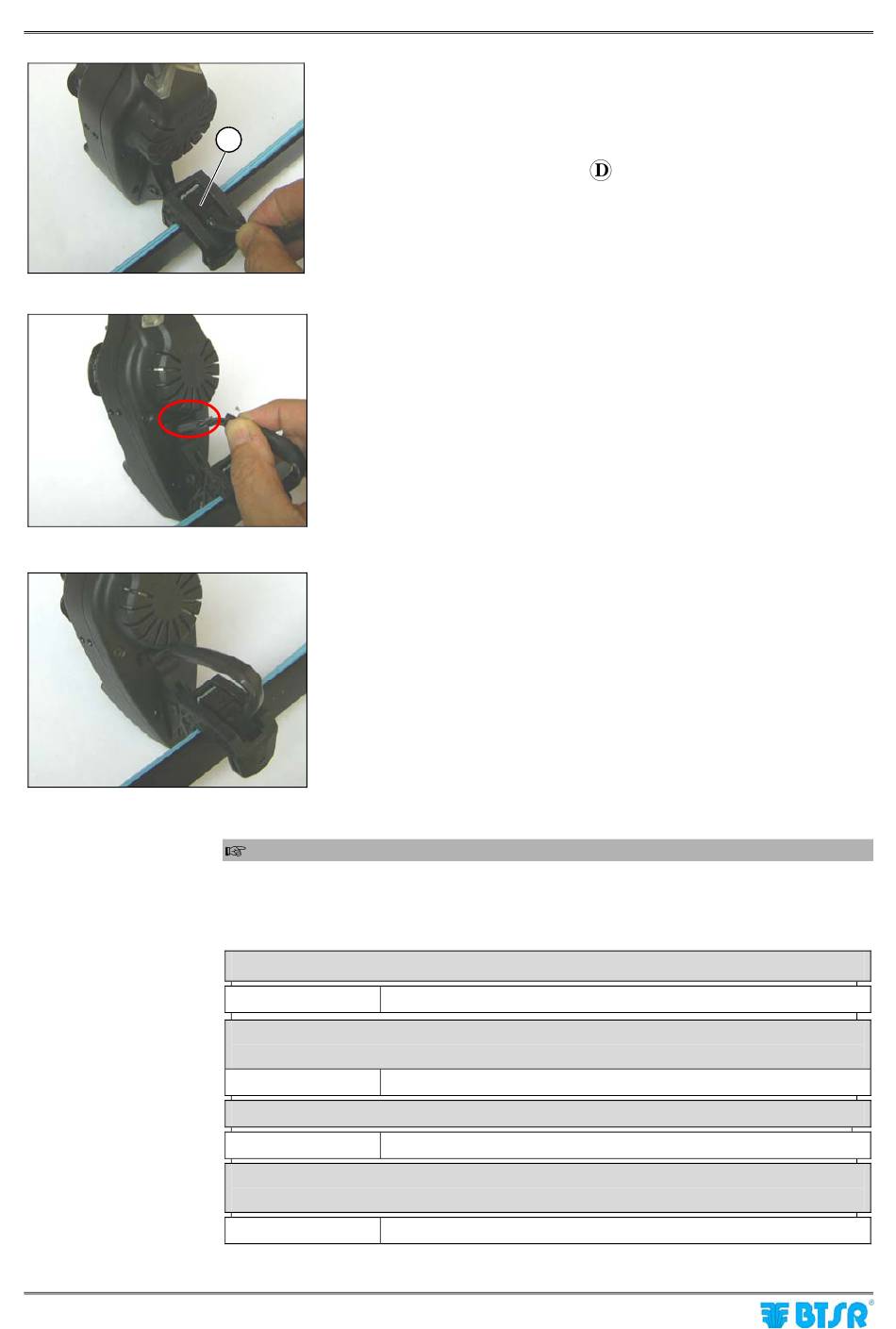

Connection cables and accessories in case of installation with flat cable KTF/FLAT

- 2.22 -
D
Connect the KTF10/FIX cable
Connect the KTF10/FIX cable to the 8 pin connector of
MULTIFEEDER
MULTIFEEDER correctly connected to the flat cable through
KTF/FIX clamping bracket
The flat cable support bar must have a height of 25 mm.
Flat cable KTF/FLAT for KTF/FIX
KTF/FLAT Variable length
Flat cable KTF/FLAT for KTF/FIX with connectors for BX4030RTP-X4
power supply module connection
500/FLAT/PW4 Length 500 cm, with connector for KTF/PW4
Connection cable between MULTIFEEDER and KTF/FIX
KTF10/FIX Length 10 cm
Quick multi-connection clamping of MULTIFEEDER with flat cable
KTF/FLAT
KTF/FIX Insulation pass-through rapid clamping bracket
MULTIFEEDER
Technical Data and Installation
to the KTF/FIX connector
