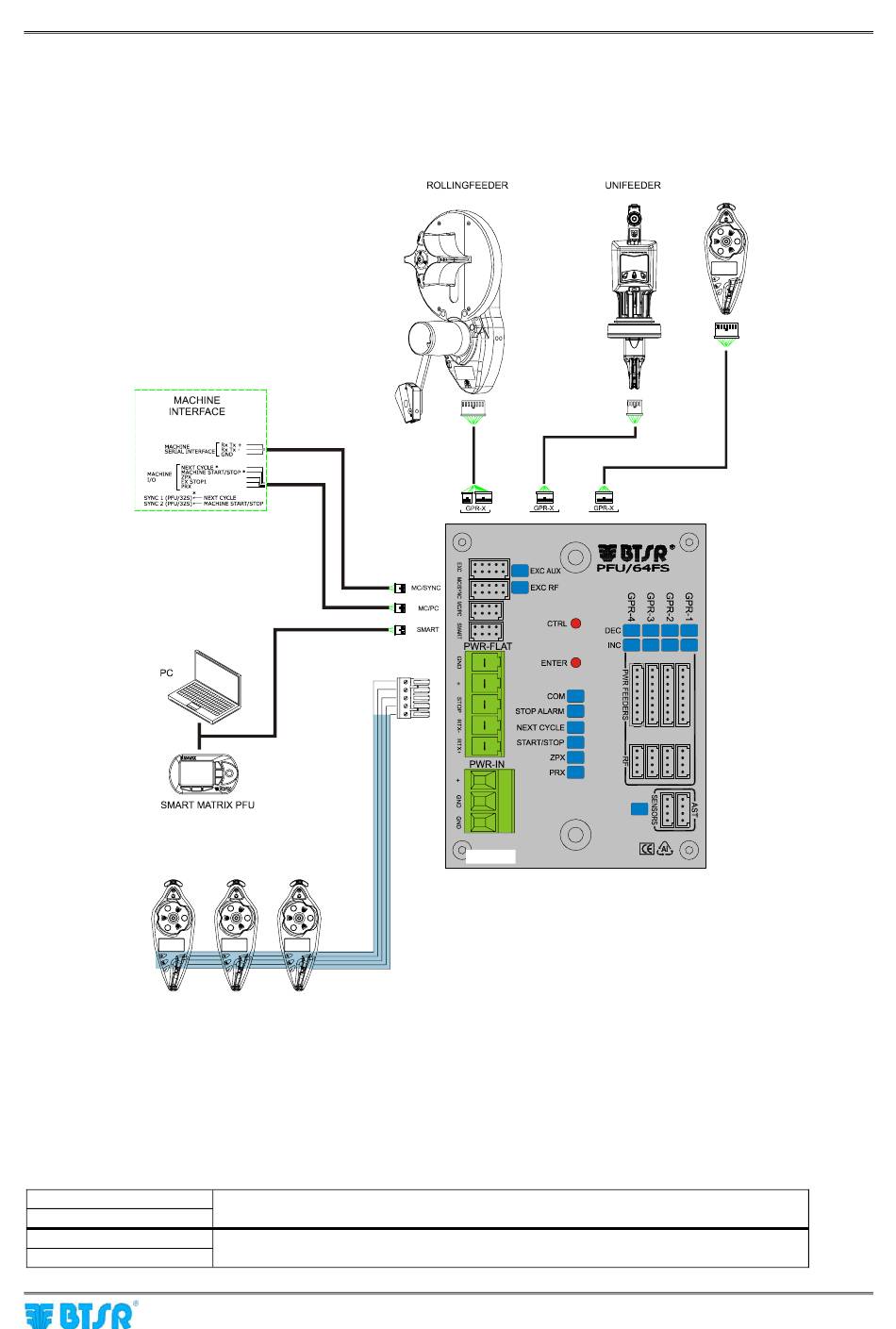

PFU/64FS –Software Mode
This mode allows you to entirely manage the yarn feeding devices connected via serial communication line.
This configuration is intended for system integrators and applications using the PC LINK BTSR program
family.
The functions available by means of the different machine interface connectors are described in detail below.
For the Pin assignment, please refer to paragraph "PFU/64FS power supplier electrical interface" on page
2.10.
SMART connector
This connector makes available 2 serial lines:
SMART RxTx+
SMART RxTx-
AUX RxTx+
AUX RxTx-
MULTIFEEDER
Serial line reserved for SMART MATRIX PFU terminal connection (communication
speed 345600 Bps)
Serial line reserved for communication with PC LINK BTSR software
(communication speed 115200 Bps)
SMART-IN
MULTIFEEDER
MULTIFEEDER
