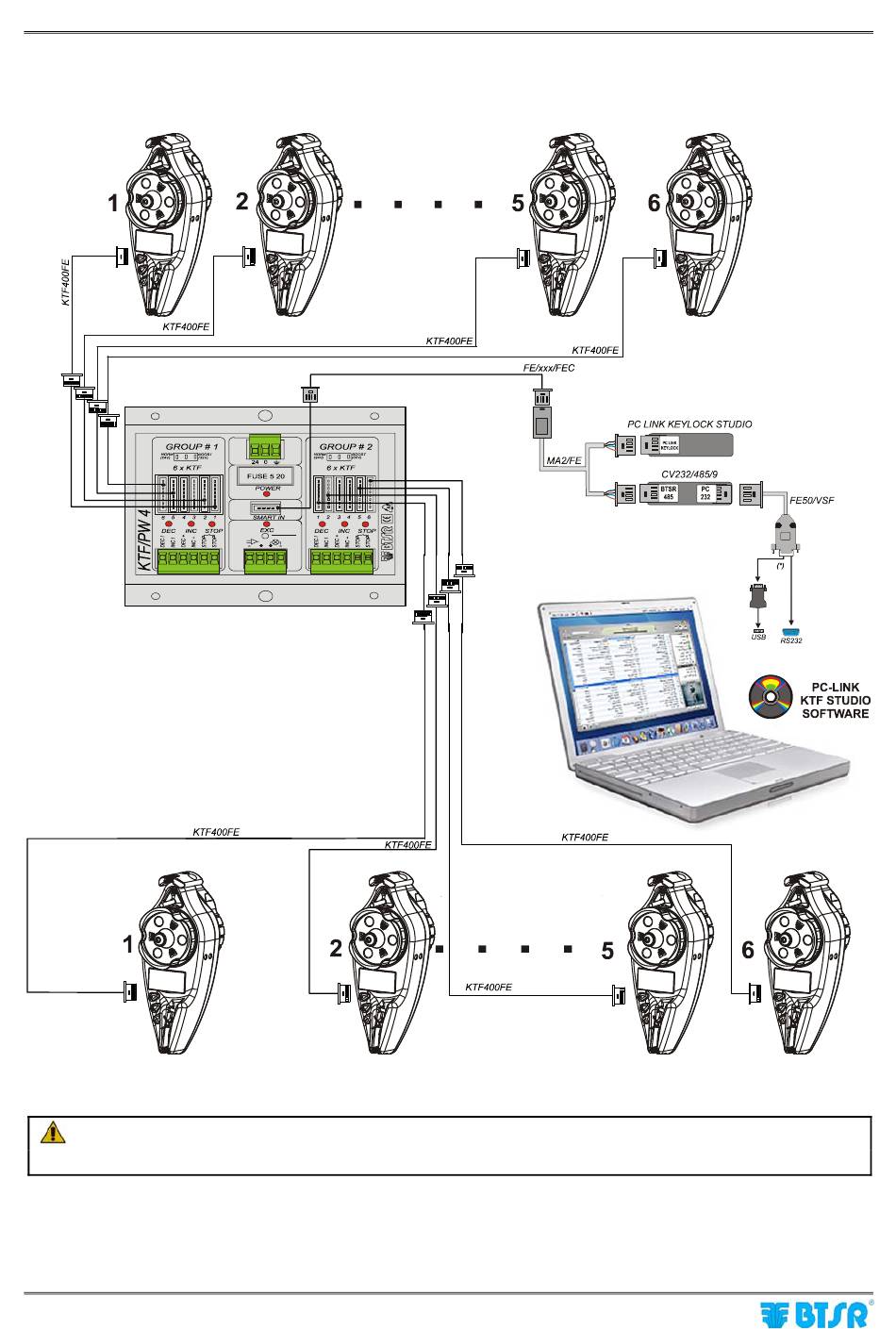

Connection Example of a Complete System including MULTIFEEDER Devices, KTF/PW4 Power Supply
and Notebook with PC-LINK KTF Studio Analysis/Monitoring Software
(*) as alternative
Concerning all electrical systems, it is a suggested rule to ensure that the ground cable
(GND) is connected to the device support.
- 2.8 - MULTIFEEDER
Technical Data and Installation
