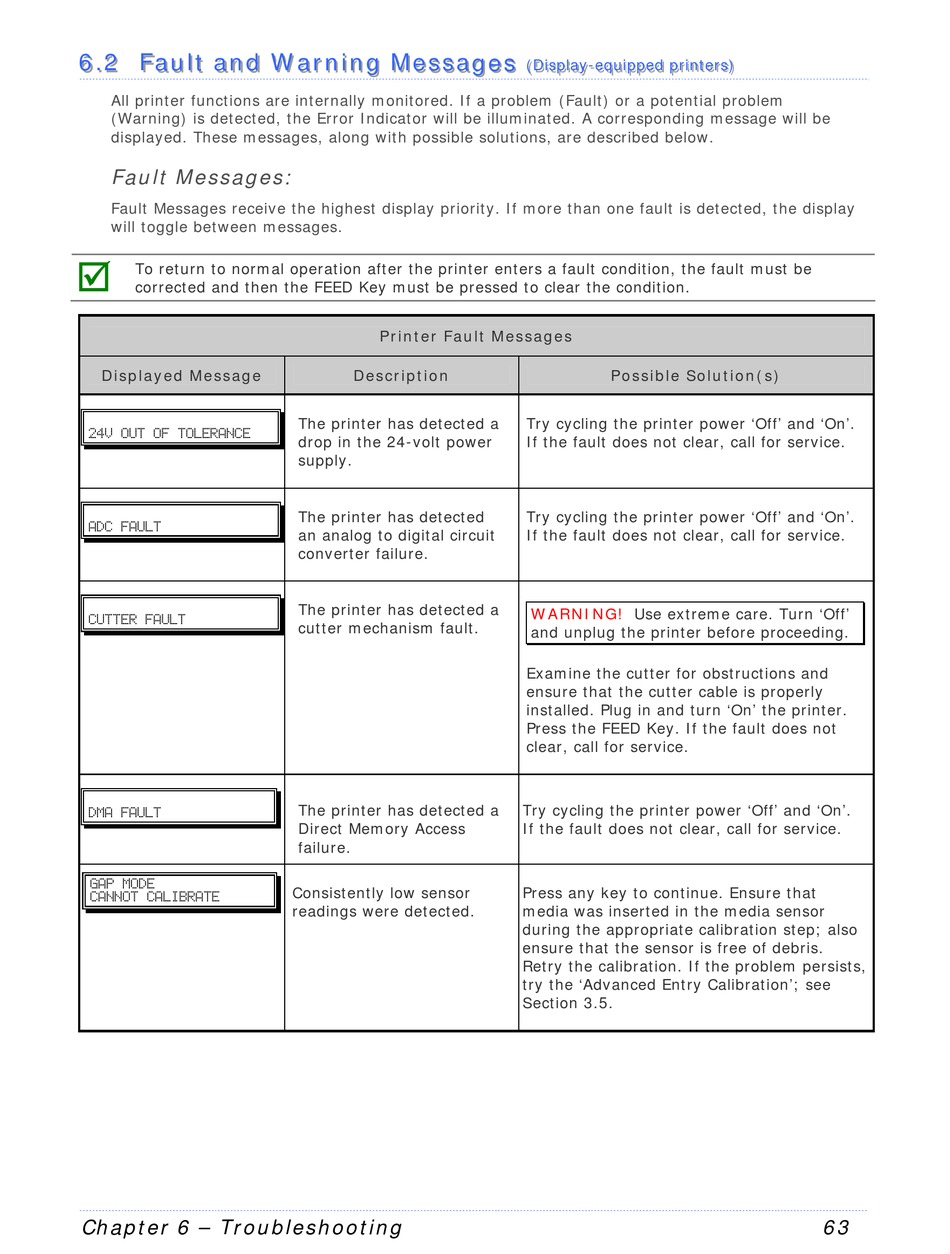

Fault And Warning Messages (Display-Equipped Models) - Datamax M-Class Mark II Operator's Manual

6 . 2 F a u l t a n d
6 . 2 F a u l t a n d
6 . 2 F a u l t a n d
All printer functions are internally monitored. If a problem (Fault) or a potential problem
(Warning) is detected, the Error Indicator will be illuminated. A corresponding message will be
displayed. These messages, along with possible solutions, are described below.
Fault Messages:
Fault Messages receive the highest display priority. If more than one fault is detected, the display
will toggle between messages.

To return to normal operation after the printer enters a fault condition, the fault must be
corrected and then the FEED Key must be pressed to clear the condition.
Displayed Message



















Chapter 6 – Troubleshooting
W a r n i n g M e s s
W a r n i n g M e s s
W a r n i n g M e s s
Printer Fault Messages
Description
The printer has detected a
drop in the 24-volt power
supply.
The printer has detected
an analog to digital circuit
converter failure.
The printer has detected a
cutter mechanism fault.
The printer has detected a
Direct Memory Access
failure.
Consistently low sensor
readings were detected.
a g e s
a g e s
a g e s
( D i s p l a y - e q u i p
( D i s p l a y - e q u i p
( D i s p l a y - e q u i p
Possible Solution(s)
Try cycling the printer power 'Off' and 'On'.
If the fault does not clear, call for service.
Try cycling the printer power 'Off' and 'On'.
If the fault does not clear, call for service.
WARNING!
and unplug the printer before proceeding.
Examine the cutter for obstructions and
ensure that the cutter cable is properly
installed. Plug in and turn 'On' the printer.
Press the FEED Key. If the fault does not
clear, call for service.
Try cycling the printer power 'Off' and 'On'.
If the fault does not clear, call for service.
Press any key to continue. Ensure that
media was inserted in the media sensor
during the appropriate calibration step; also
ensure that the sensor is free of debris.
Retry the calibration. If the problem persists,
try the 'Advanced Entry Calibration'; see
Section 3.5.
p e d p r i n t e r s )
p e d p r i n t e r s )
p e d p r i n t e r s )
Use extreme care. Turn 'Off'
63
