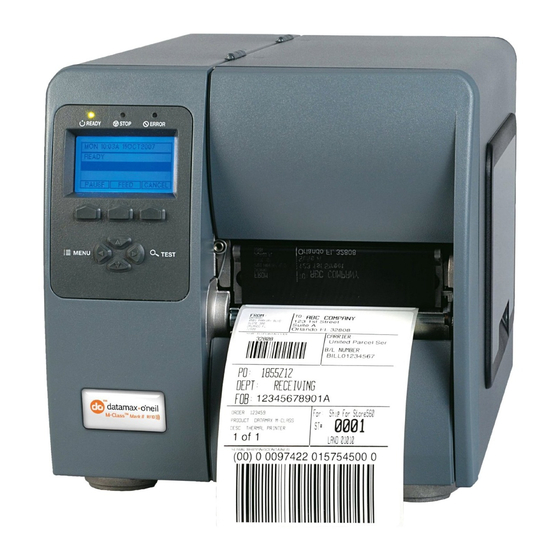

Datamax M-Class Mark II Quick Start Manual
Internal rewinder option
Hide thumbs
Also See for M-Class Mark II:
- Operator's manual (100 pages) ,
- Maintenance manual (94 pages) ,
- Manual (10 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Datamax M-Class Mark II
Summary of Contents for Datamax M-Class Mark II

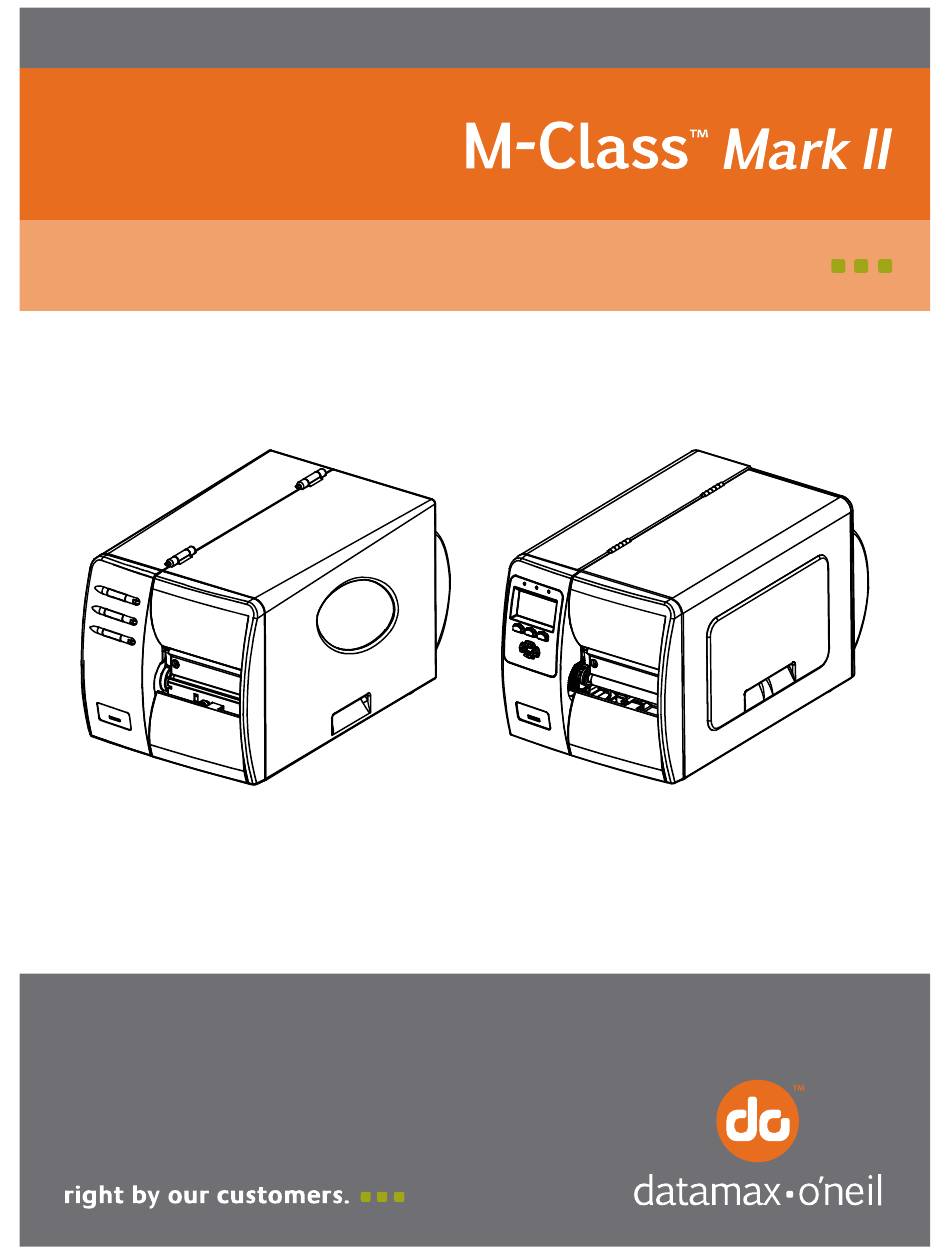

- Page 1 92-2477-01 Rev.C Internal Rewinder Option...
- Page 3 Contents of the Internal Rewinder Kit This kit contains the following items: Arc Plate, Internal Rewinder Assembly Media Clip Media Retainer Screws (3) Follow the steps listed below to install this option. Tools Required To install this option you will need a #2 Phillips head screwdriver. Step 1: Preparing the Printer ...
- Page 4 Remove the three Screws that secure the Cover Plate to the printer. Remove the Cover Plate. Screws Cover Plate Step 2: Installing the Internal Rewinder Centerplate Carefully position the Internal Rewinder into the Centerplate of the printer, as shown. ...
- Page 5 Media Loading Load media into the printer as you normally would for tear-off operation (see the Operator’s Manual for details), however, extend an additional 12 inches (30 cm) of media out the front of the printer. Route the Media over the Arc Plate and around the Internal Rewinder, as shown below. Media Media Slots...
