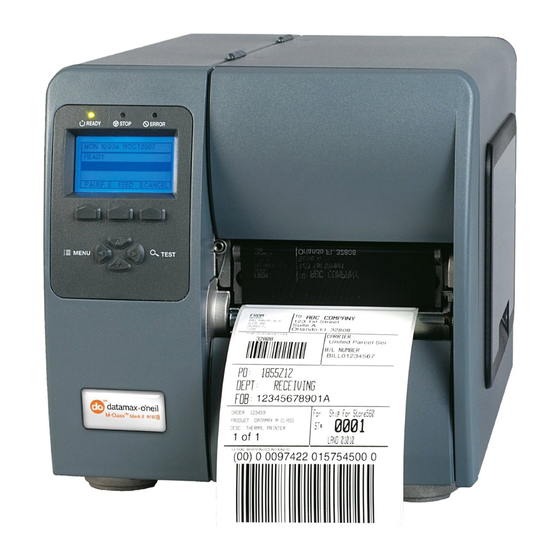

Datamax M-class Mark II Manual

Cutter option

Hide thumbs Also See for M-class Mark II:

Download this manual

92-2478-01 Rev.C

Cutter Option

Table of Contents

Page 1 92-2478-01 Rev.C Cutter Option...
Page 3: Tools Required
Contents of the Cutter Kit This kit contains the following item: Cutter Assembly Follow the steps listed below to install this option. Tools Required To install this option you will need a #2 Philips screwdriver. Step 1: Preparing the Printer For your safety and to avoid damaging the equipment, turn ‘Off’...
Page 4: Step 2: Installing The Cutter
Step 2: Installing the Cutter  Position the Cutter for mounting on the front of the printer.  Tighten the Mounting Screw to secure the mechanism to the printer. This completes the installation process. Proceed to Loading Media. Cutter Mounting Screw Loading Media Before proceeding, ensure that the free end of the media has a clean, straight edge.
Page 5: Cutter Maintenance
Cutter Maintenance To ensure peak performance, the Cutter should be cleaned on a regular basis: after each roll or box of labels. In addition to the regularly scheduled maintenance, if the performance becomes sluggish, cleaning should be performed immediately. To clean the Cutter: For your safety and to avoid damaging the equipment, turn ‘Off’...
