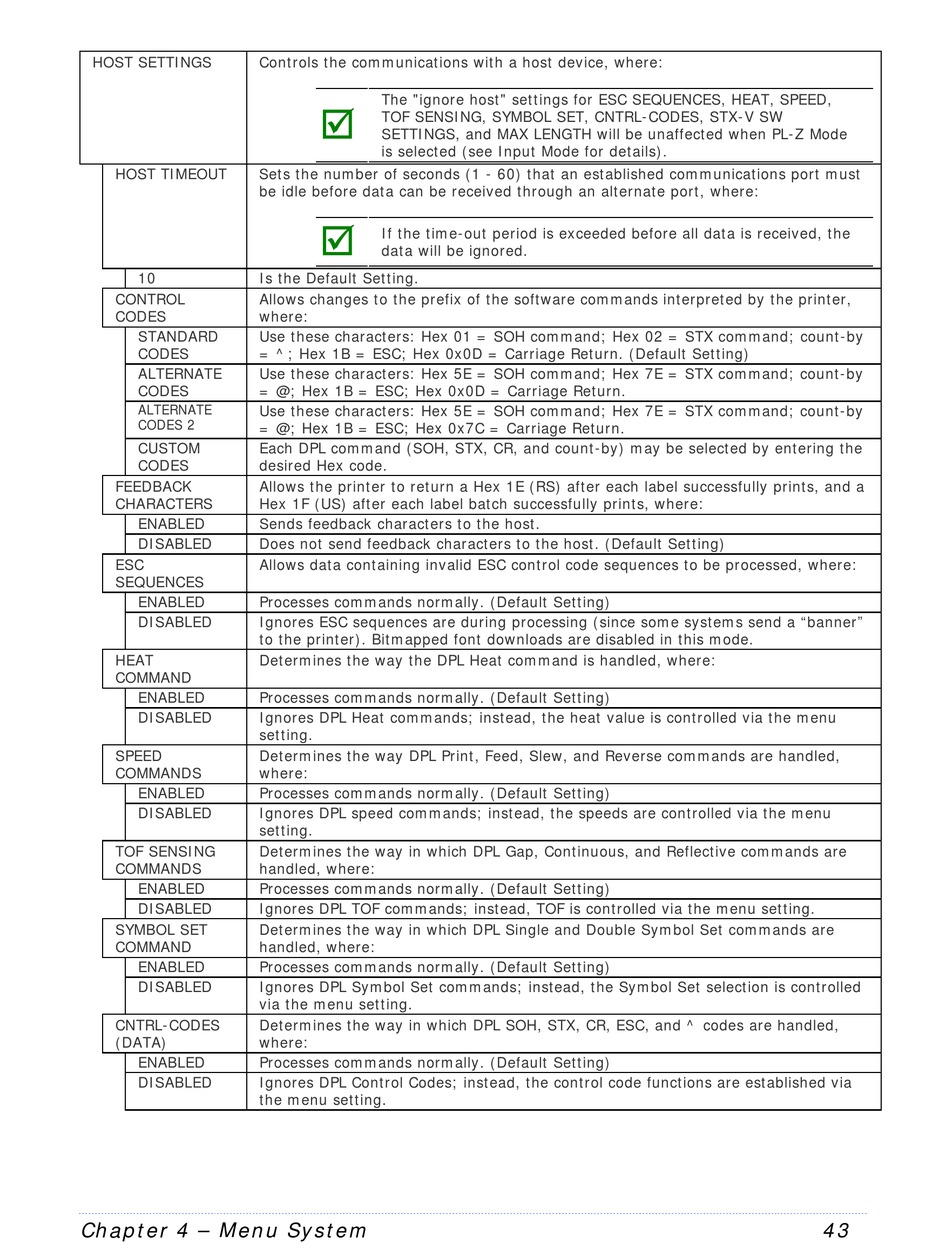

Datamax M-Class Mark II Operator's Manual page 49

HOST SETTINGS
HOST TIMEOUT
10
CONTROL
CODES
STANDARD
CODES
ALTERNATE
CODES
ALTERNATE
CODES 2
CUSTOM
CODES
FEEDBACK
CHARACTERS
ENABLED
DISABLED
ESC
SEQUENCES
ENABLED
DISABLED
HEAT
COMMAND
ENABLED
DISABLED
SPEED
COMMANDS
ENABLED
DISABLED
TOF SENSING
COMMANDS
ENABLED
DISABLED
SYMBOL SET
COMMAND
ENABLED
DISABLED
CNTRL-CODES
(DATA)
ENABLED
DISABLED
Chapter 4 – Menu System
Controls the communications with a host device, where:
The "ignore host" settings for ESC SEQUENCES, HEAT, SPEED,

TOF SENSING, SYMBOL SET, CNTRL-CODES, STX-V SW
SETTINGS, and MAX LENGTH will be unaffected when PL-Z Mode
is selected (see Input Mode for details).
Sets the number of seconds (1 - 60) that an established communications port must
be idle before data can be received through an alternate port, where:

If the time-out period is exceeded before all data is received, the
data will be ignored.
Is the Default Setting.
Allows changes to the prefix of the software commands interpreted by the printer,
where:
Use these characters: Hex 01 = SOH command; Hex 02 = STX command; count-by
= ^; Hex 1B = ESC; Hex 0x0D = Carriage Return. (Default Setting)
Use these characters: Hex 5E = SOH command; Hex 7E = STX command; count-by
= @; Hex 1B = ESC; Hex 0x0D = Carriage Return.
Use these characters: Hex 5E = SOH command; Hex 7E = STX command; count-by
= @; Hex 1B = ESC; Hex 0x7C = Carriage Return.
Each DPL command (SOH, STX, CR, and count-by) may be selected by entering the
desired Hex code.
Allows the printer to return a Hex 1E (RS) after each label successfully prints, and a
Hex 1F (US) after each label batch successfully prints, where:
Sends feedback characters to the host.
Does not send feedback characters to the host. (Default Setting)
Allows data containing invalid ESC control code sequences to be processed, where:
Processes commands normally. (Default Setting)
Ignores ESC sequences are during processing (since some systems send a "banner"
to the printer). Bitmapped font downloads are disabled in this mode.
Determines the way the DPL Heat command is handled, where:
Processes commands normally. (Default Setting)
Ignores DPL Heat commands; instead, the heat value is controlled via the menu
setting.
Determines the way DPL Print, Feed, Slew, and Reverse commands are handled,
where:
Processes commands normally. (Default Setting)
Ignores DPL speed commands; instead, the speeds are controlled via the menu
setting.
Determines the way in which DPL Gap, Continuous, and Reflective commands are
handled, where:
Processes commands normally. (Default Setting)
Ignores DPL TOF commands; instead, TOF is controlled via the menu setting.
Determines the way in which DPL Single and Double Symbol Set commands are
handled, where:
Processes commands normally. (Default Setting)
Ignores DPL Symbol Set commands; instead, the Symbol Set selection is controlled
via the menu setting.
Determines the way in which DPL SOH, STX, CR, ESC, and ^ codes are handled,
where:
Processes commands normally. (Default Setting)
Ignores DPL Control Codes; instead, the control code functions are established via
the menu setting.
