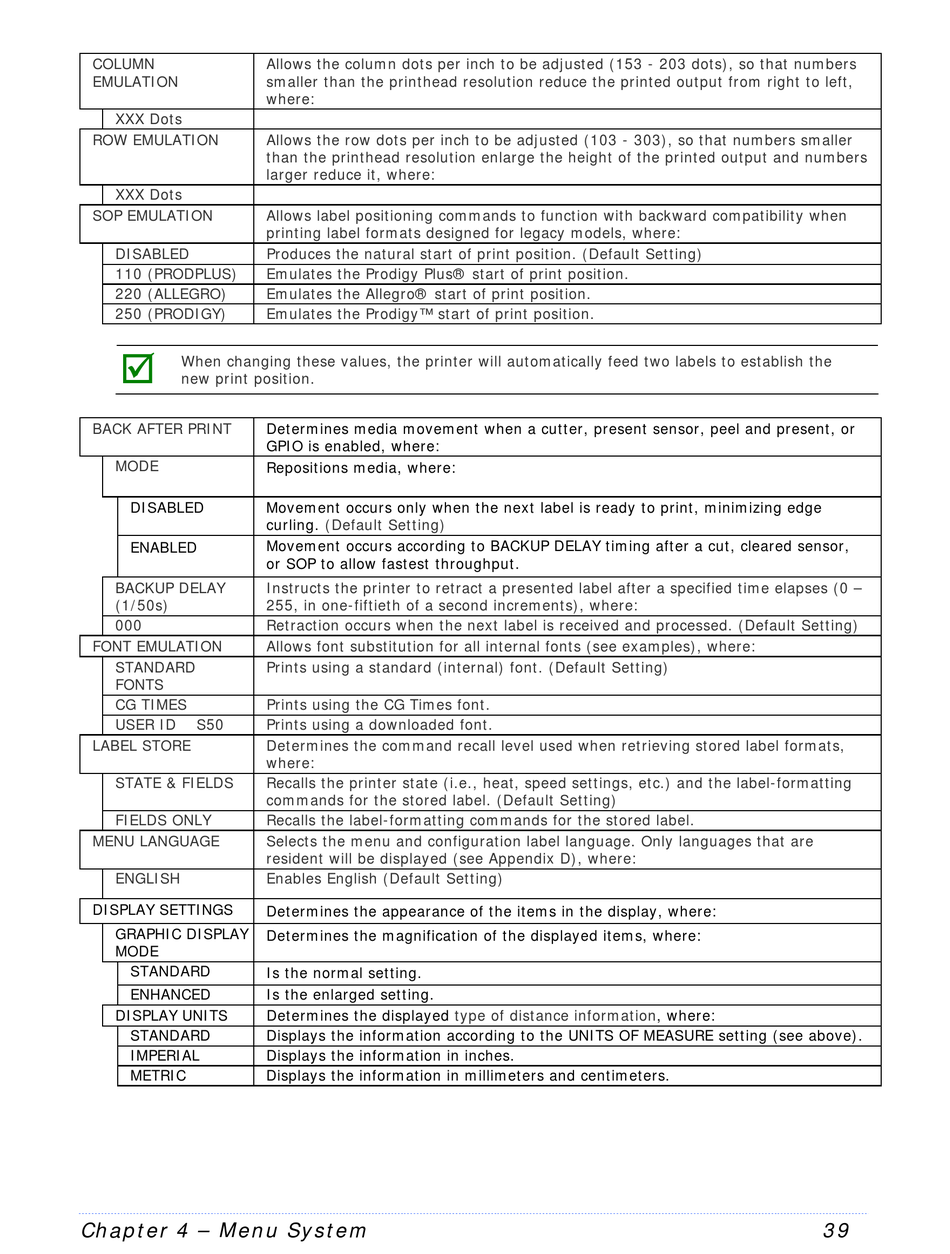

Datamax M-Class Mark II Operator's Manual page 45

COLUMN
EMULATION
XXX Dots
ROW EMULATION
XXX Dots
SOP EMULATION
DISABLED
110 (PRODPLUS)
220 (ALLEGRO)
250 (PRODIGY)

When changing these values, the printer will automatically feed two labels to establish the
new print position.
BACK AFTER PRINT
MODE
DISABLED
ENABLED
BACKUP DELAY
(1/50s)
000
FONT EMULATION
STANDARD
FONTS
CG TIMES
USER ID S50
LABEL STORE
STATE & FIELDS
FIELDS ONLY
MENU LANGUAGE
ENGLISH
DISPLAY SETTINGS
GRAPHIC DISPLAY
MODE
STANDARD
ENHANCED
DISPLAY UNITS
STANDARD
IMPERIAL
METRIC
Chapter 4 – Menu System
Allows the column dots per inch to be adjusted (153 - 203 dots), so that numbers
smaller than the printhead resolution reduce the printed output from right to left,
where:
Allows the row dots per inch to be adjusted (103 - 303), so that numbers smaller
than the printhead resolution enlarge the height of the printed output and numbers
larger reduce it, where:
Allows label positioning commands to function with backward compatibility when
printing label formats designed for legacy models, where:
Produces the natural start of print position. (Default Setting)
Emulates the Prodigy Plus® start of print position.
Emulates the Allegro® start of print position.
Emulates the Prodigy™ start of print position.
Determines media movement when a cutter, present sensor, peel and present, or
GPIO is enabled, where:
Repositions media, where:
Movement occurs only when the next label is ready to print, minimizing edge
curling. (Default Setting)
Movement occurs according to BACKUP DELAY timing after a cut, cleared sensor,
or SOP to allow fastest throughput.
Instructs the printer to retract a presented label after a specified time elapses (0 –
255, in one-fiftieth of a second increments), where:
Retraction occurs when the next label is received and processed. (Default Setting)
Allows font substitution for all internal fonts (see examples), where:
Prints using a standard (internal) font. (Default Setting)
Prints using the CG Times font.
Prints using a downloaded font.
Determines the command recall level used when retrieving stored label formats,
where:
Recalls the printer state (i.e., heat, speed settings, etc.) and the label-formatting
commands for the stored label. (Default Setting)
Recalls the label-formatting commands for the stored label.
Selects the menu and configuration label language. Only languages that are
resident will be displayed (see Appendix D), where:
Enables English (Default Setting)
Determines the appearance of the items in the display, where:
Determines the magnification of the displayed items, where:
Is the normal setting.
Is the enlarged setting.
Determines the displayed
Displays the information according to the UNITS OF MEASURE setting (see above).
Displays the information in inches.
Displays the information in millimeters and centimeters.
type of distance information, where:
39
