Assembly

5.
5.1
NOTICE
Tighten by hand
only!
> Damage of the
device
NOTICE
Always let the
threaded protective
cap or the adapter
for protecting the
thread of the probe
tip.
> Damage of the
device
A small gap will be present when the prism tip is fully tightened in place.
Top-Line Video Endoscope
Assembly

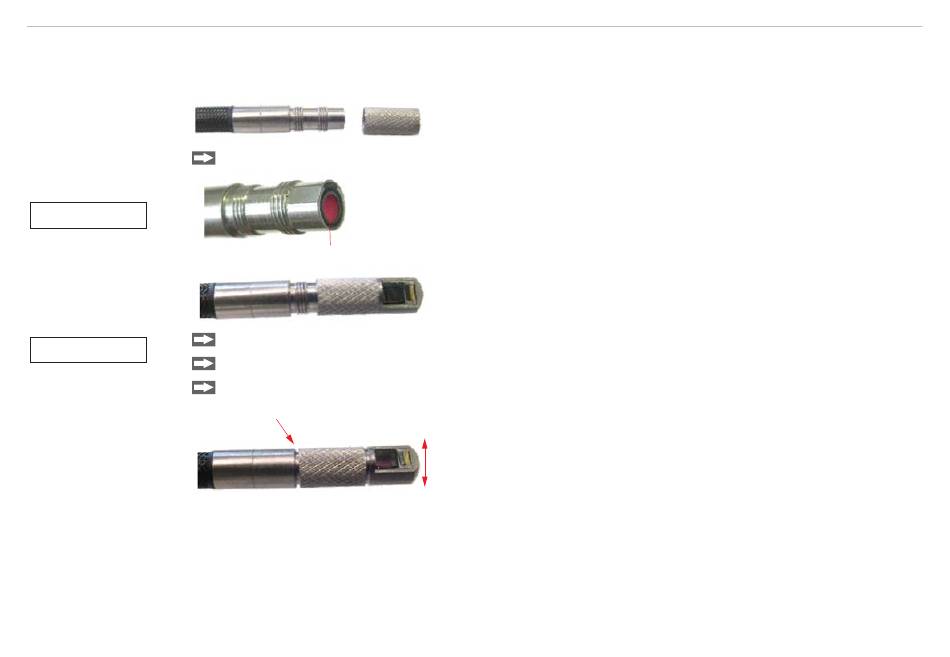

Screwing the 90 ° Prism Head
Unscrew the threaded protective cap.
Shim ring
Screw the knurled part of the prism head, but only on the first set of threads on the probe tip.
Rotate the prism head tip until the inner level of the shim ring engages.
Then continue threading the prism head, until there is no side play on the prism head.
Stop threading at that point.
No side play
