Assembly

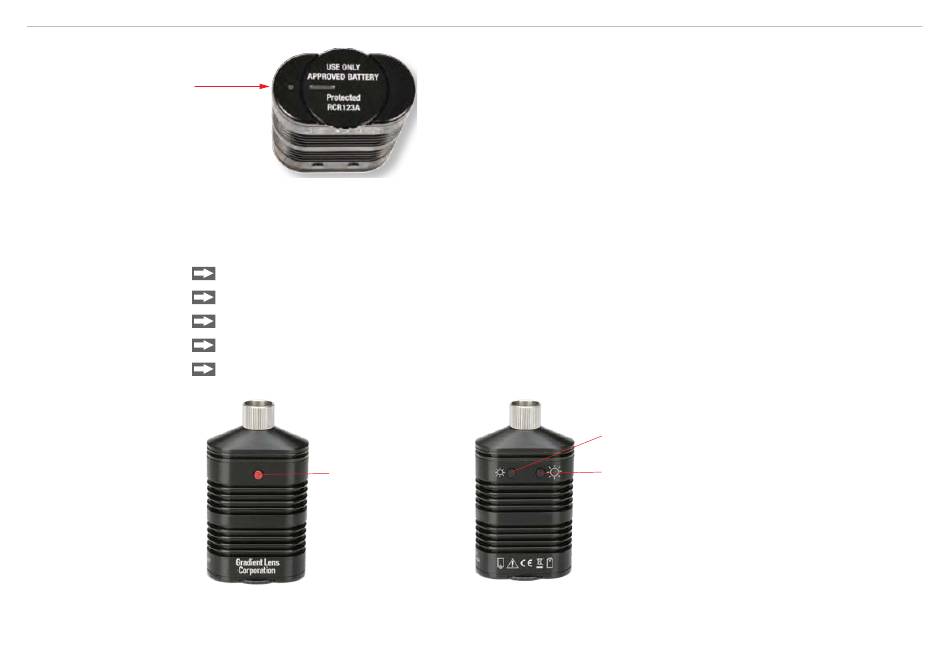

Fig. 6 View on light source from above after battery change
i
Fig. 7 Turn on/off the light source
Top-Line Video Endoscope
Cover will only fit when oriented correctly.
Rotate cover dial until index marks are aligned as shown, see
Check the operation of the light source.
Press the red power button to turn the light source on, see
Press again to turn the light source off, see
Press and hold one or the other of the intensity buttons to brighten or dim the light, see
On / Off button
Fig.
Fig.
Fig. 7.
Dim the light
Brighten the light
Fig. 8 Brighten or dim the light
6, to lock the cover in place.
7.
Fig. 8.
