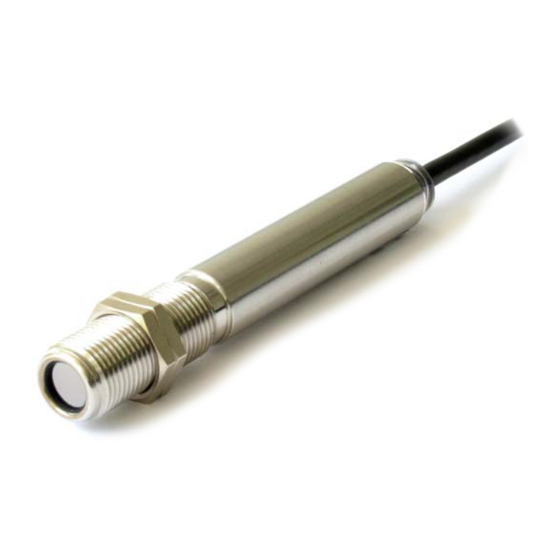

MICRO-EPSILON thermoMETER CS Assembly Instructions

Liability for Material Defects
All components of the device have been checked and tested for functionality
at the factory. However, if defects occur despite our careful quality control,
MICRO-EPSILON or your dealer must be notified immediately.
The liability for material defects is 12 months from delivery.
Within this period, defective parts, except for wearing parts, will be repaired
or replaced free of charge, if the device is returned to MICRO-EPSILON with
shipping costs prepaid. Any damage that is caused by improper handling,
the use of force or by repairs or modifications by third parties is not covered
by the liability for material defects. Repairs are carried out exclusively by
MICRO-EPSILON.
Further claims can not be made. Claims arising from the purchase contract
remain unaffected. In particular, MICRO-EPSILON shall not be liable for any
consequential, special, indirect or incidental damage. In the interest of further
development, MICRO-EPSILON reserves the right to make design changes
without notification.
For translations into other languages, the German version shall prevail.
You can download a detailed instruction manual as PDF file from our web site
under http://www.micro-epsilon.de/download/manuals/man--thermoMETER-
CS--com.pdf
MICRO-EPSILON MESSTECHNIK GmbH & Co. KG
Königbacher Straße 15
94496 Ortenburg / Germany
Tel. +49 8542 / 168-0 / Fax +49 8542 / 168-90
X9771203-A021118HDR
e-mail info@micro-epsilon.de
*X9771203-A02*
www.micro-epsilon.com

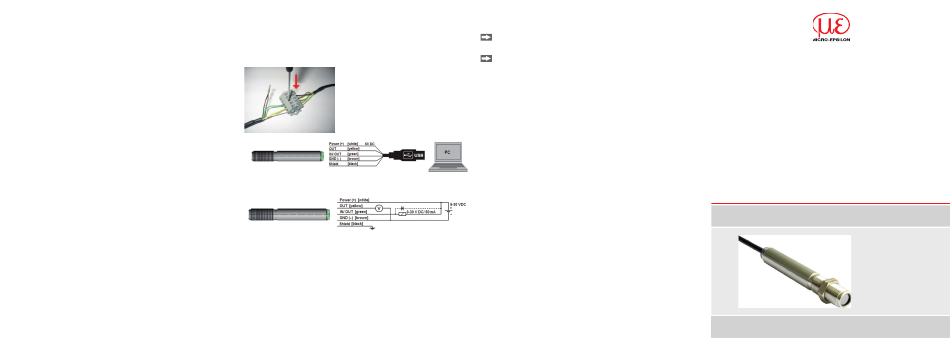

Digital Communication
For a digital communication the optional USB programming kit is required.
The sensor is offering two ways of digital communication:
- Bidirectional communication (sending and receiving data)
- Unidirectional communication (burst mode – the sensor is sending data
only)
Open Collector Output
The open collector output is an additional alarm output on the thermoMETER
CS and can control an external relay e.g. In addition the analog output can be
used simultaneously.
Direct Connection to an RS232 Interface on the PC
The thermoMETER CS works with a UART voltage of 3.3 V. For a bidirectional
RS232 connection of the sensor the following interface circuits can be used:
MAX3381E (manufacturer: Maxim), see Chapter Direct Connection to an RS232
Interface on the PC.
Software (Optional)
Installation
Insert the installation CD into the according drive on your computer
If the autorun option is activated the installation wizard will start automatically.
Otherwise please start setup.exe from the CD-ROM. Follow the instruc-
tions of the wizard until the installation is finished.
The installation wizard will place a launch icon on the desktop and in the start
menu.
If you want to uninstall the software from your system please use the un-
install icon in the start menu.
Main Features
- Graphic display for temperature trends and automatic data logging for
analysis and documentation
- Complete sensor setup and remote controlling
- Adjustment of signal processing functions
- Programming of outputs and functional inputs
You will find a detailed software manual on the CD.
Minimum System Requirements
- Windows XP , Windows Vista, Windows 7, Windows 8, Windows 10
- USB interface
- Hard disc with at least 30 MByte free space
- At least 128 MByte RAM
- CD-ROM drive
Assembly Instructions
thermoMETER CS
