Optional Ceiling Bracket Kit

The optional SMK C SF 26PT Extron Ceiling Bracket Kit allows the SF 26PT speaker
assembly to be suspended from a junction box. The kit consists of a ceiling bracket and a
matching magnetic cover.

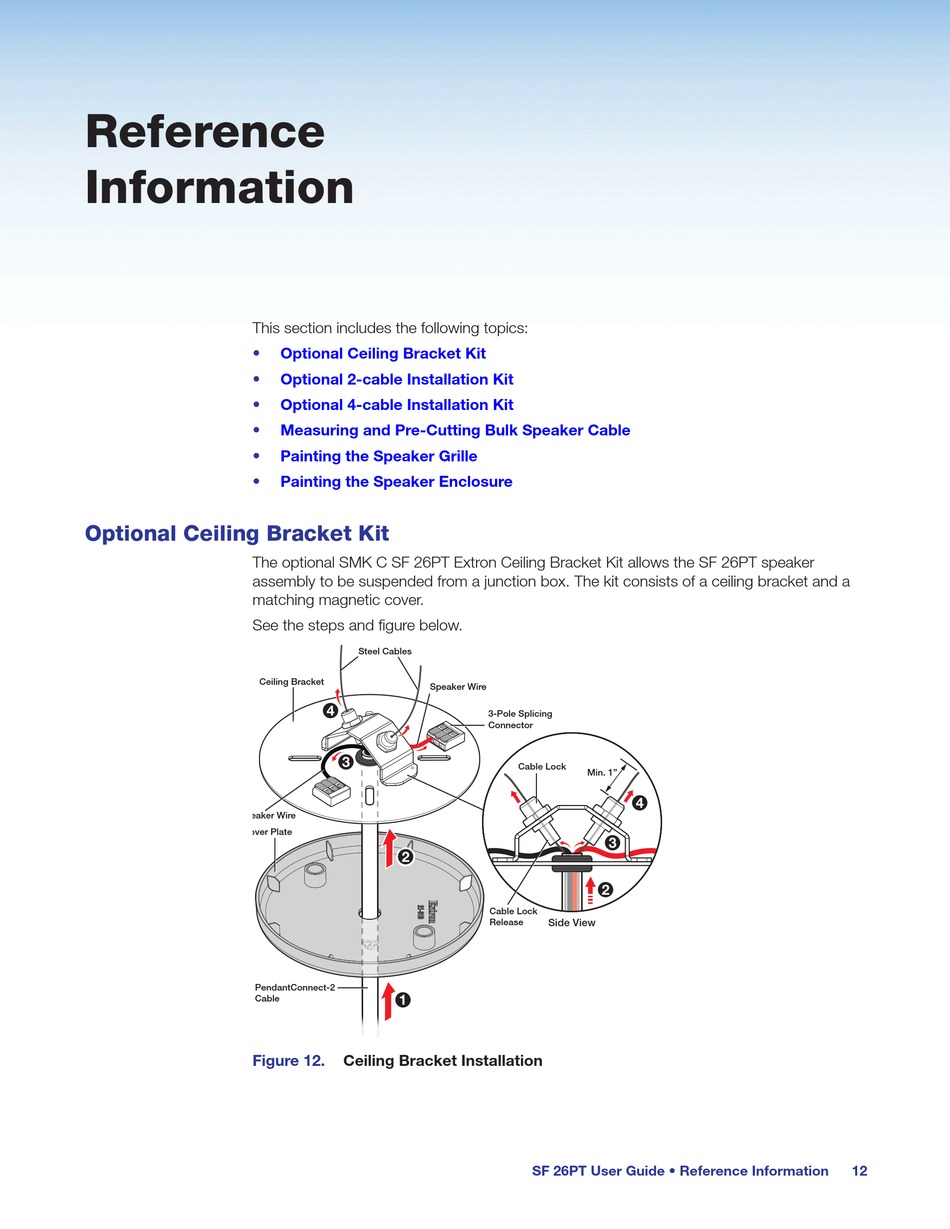

See the steps and figure below.
Ceiling Bracket
Speaker Wire
Cover Plate
PendantConnect-2
Cable
Figure 12.
Optional Ceiling Bracket Kit
Optional 2-cable Installation Kit
Optional 4-cable Installation Kit
Measuring and Pre-Cutting Bulk Speaker Cable
Painting the Speaker Grille
Painting the Speaker Enclosure
Steel Cables
Speaker Wire
4 4
3 3
2 2
1 1
Ceiling Bracket Installation
Cable Lock
3-Pole Splicing
Connector
Cable Lock
Min. 1"
4 4
3 3
2 2
Cable Lock
Side View
Release
SF 26PT User Guide • Reference Information
Min. 1"
12
