7. DISASSEMBLY AND ADJUSTMENT

7.5.5 Y Belt

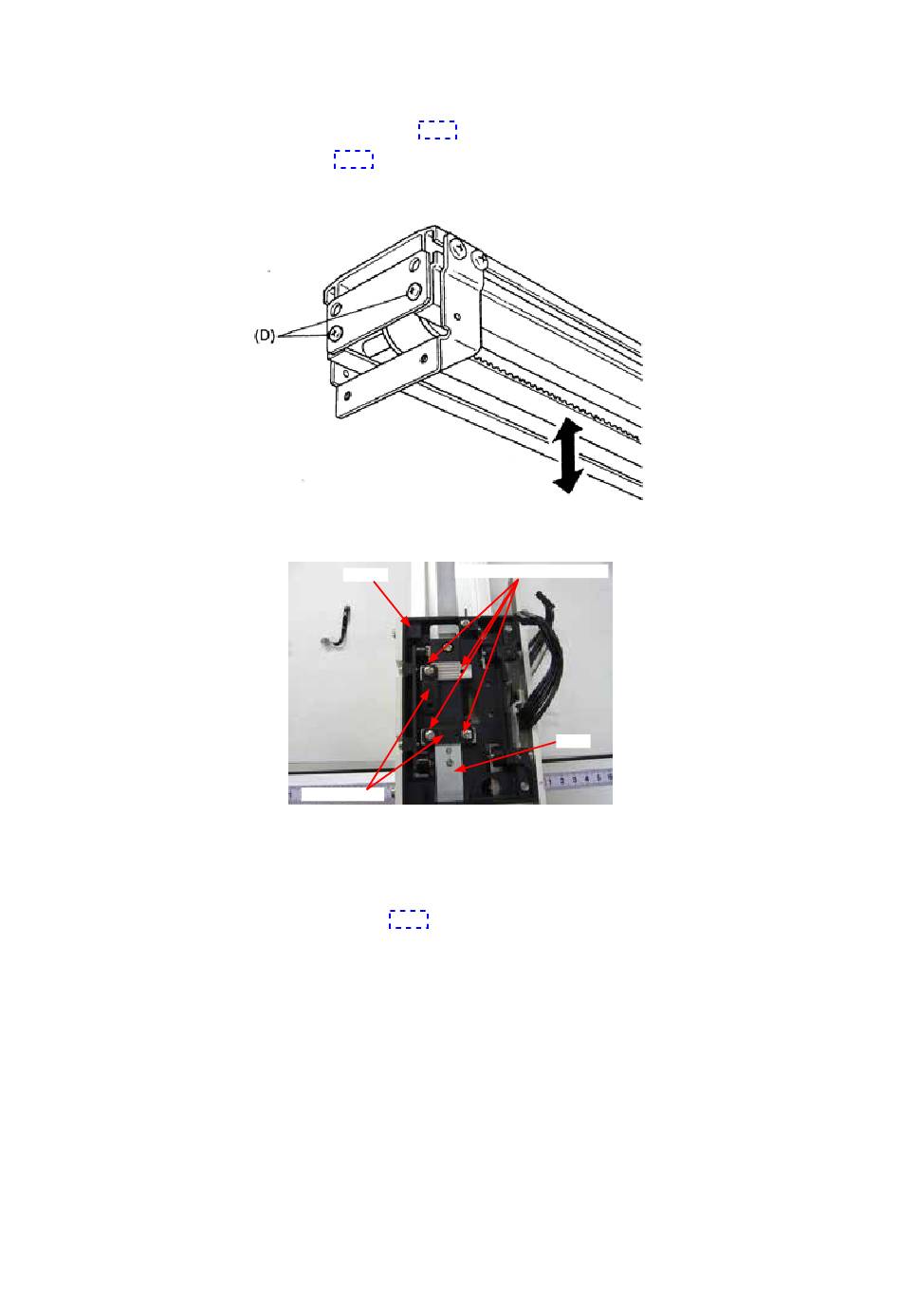

How to detach the Y belt
(1) Detach the front Y bar cover (See the section 7.1.6).
(2) Detach the Y bar (See the section 7.5.1).
(3) Loosen the two Y belt tension adjustment screws.
(4) Remove the four M3L6 binding head screws holding the Y belt stopper.
M3L6 binding head screw
Y slider
Y belt
Y belt stopper
(5) Detach the Y belt.
How to reinstall the Y belt
(1) Reattach the Y belt in the reverse order in which it was detached.
(2) Adjust the Y belt tension (See the section 7.5.6).
FC2250-UM-251-9370 7-42
