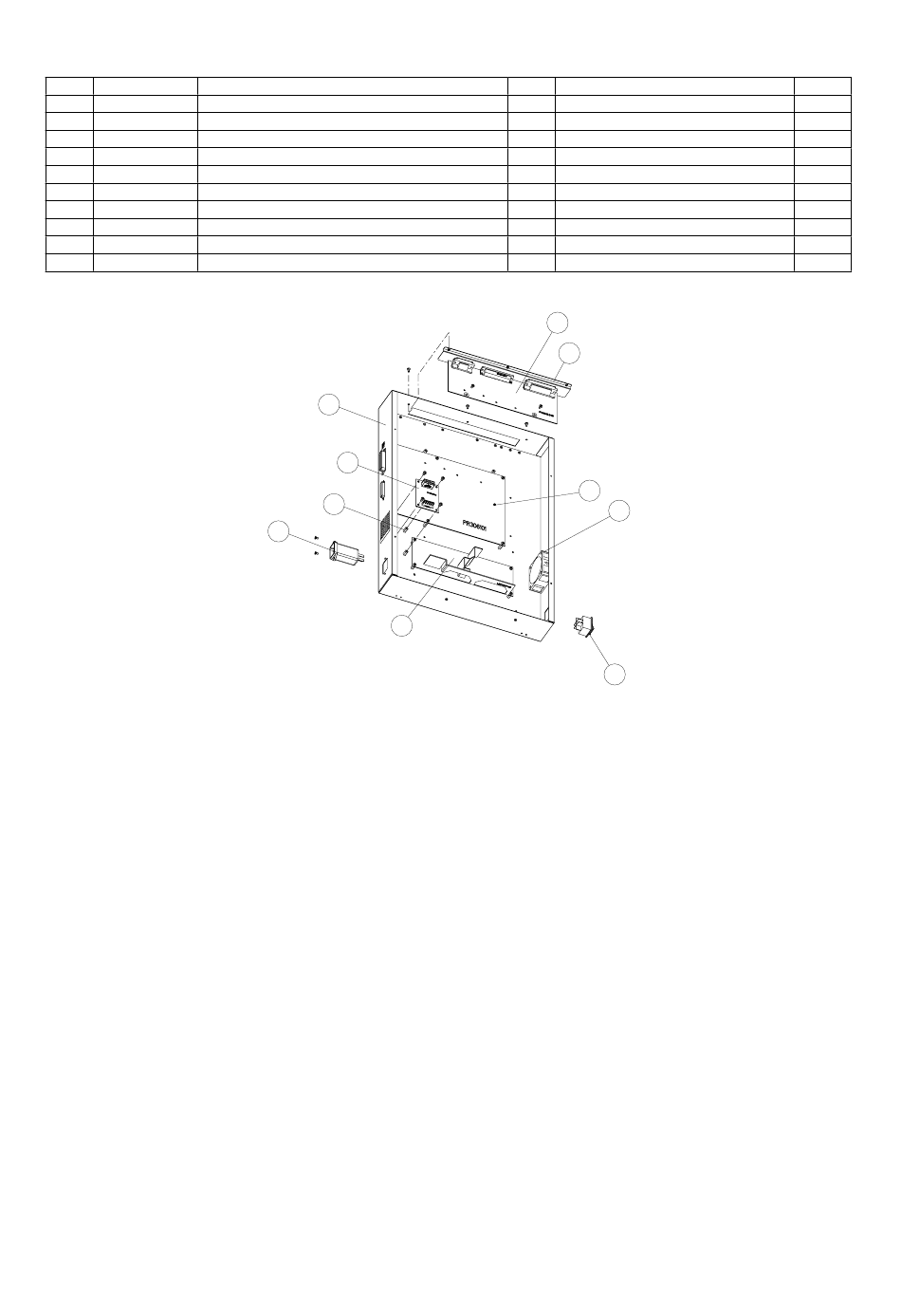

Control Unit - GRAPHTEC FC2250 Service Manual

10.4 Control Unit

No. Part No.
1 508102306 Power Switch
2 518000033 AC Inlet
3 792256700 Main Board
4 792256701 Main Relay Board
5 682247530 Switching Power Supply
6 500050273 Fan
7 621476141 Connector Panel
8 621476123 Control Box
9 395030100 Stud, ASB-310E
10 772247591 Power Supply Relay Board
Control Unit
FC2250-UM-251-9370
Description
8
10
9
2
5
Q'ty
1 SW,2WI36/92
1 SUP-B3G-E
1 PN6121-01
1 PN6121-02
1 LEP100F-36
1 TUDC24B4
1
1
8
1 PN5042-04
4
7
3
6
1
10-5
10. PARTS LIST
Remarks Rank
C
C
A
A
A
A
C
C
D
A
