7. DISASSEMBLY AND ADJUSTMENT

7.5.11 Y Slider

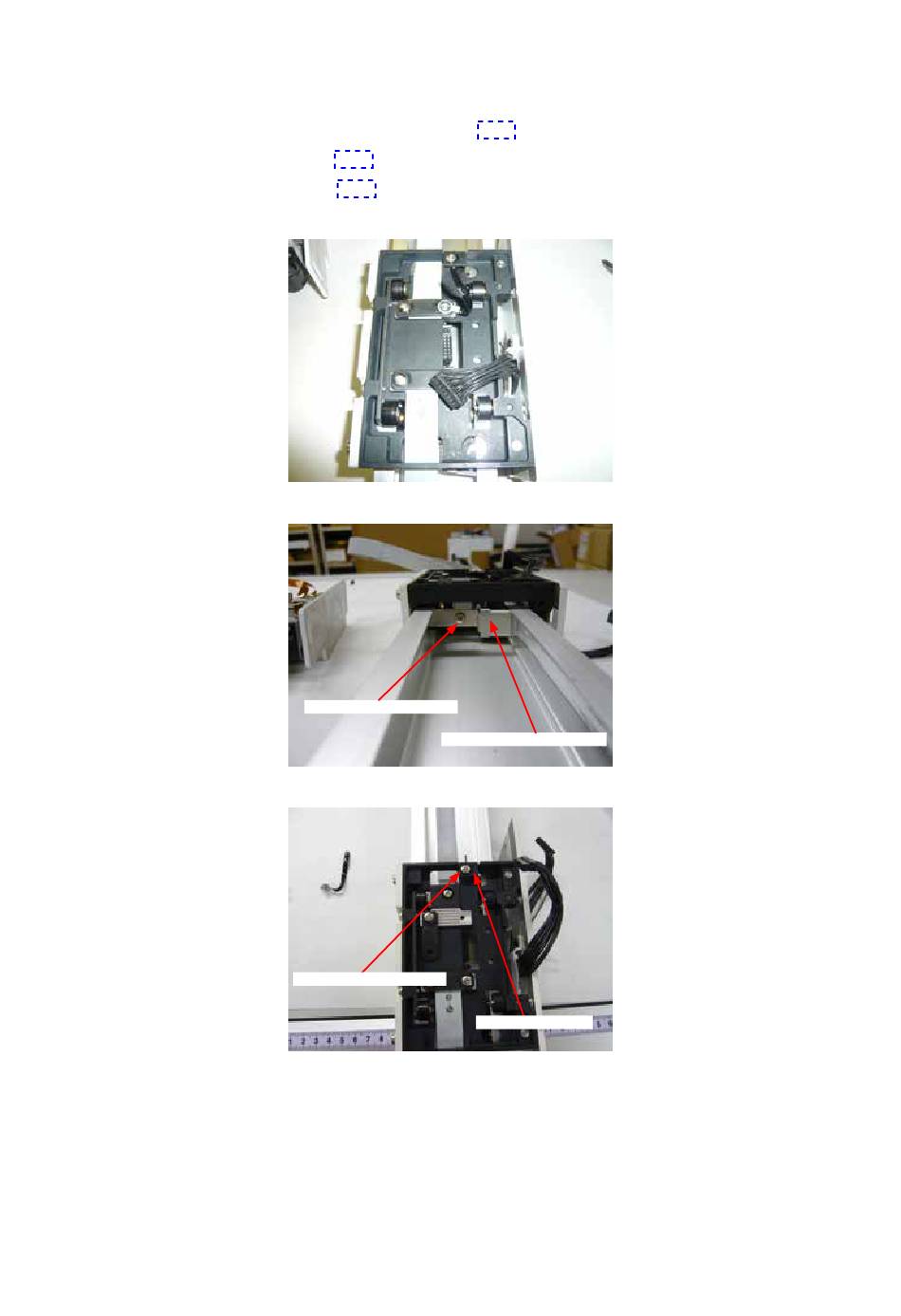

How to detach the Y slider
(1) Detach the pen block from the Y bar (See the section 7.3.1).
(2) Detach the Y bar (See the section 7.5.1).
(3) Detach the Y belt (See the section 7.5.5).
(4) Disconnect the cable from connector J62 on the pen flexible cable relay board.
(5) Remove the M3L4 binding head screw holding the flexible cable fixing bracket, and then detach it.
M3L4 binding head screw
Flexible cable fixing bracket
(6) Remove the M3L4 binding head screw holding the Y home sensor dog, and then detach it.
M3L4 binding head screw
Y home sensor dog
FC2250-UM-251-9370 7-58
