7. DISASSEMBLY AND ADJUSTMENT

7.3 Pen Block Part

7.3.1 Pen Block

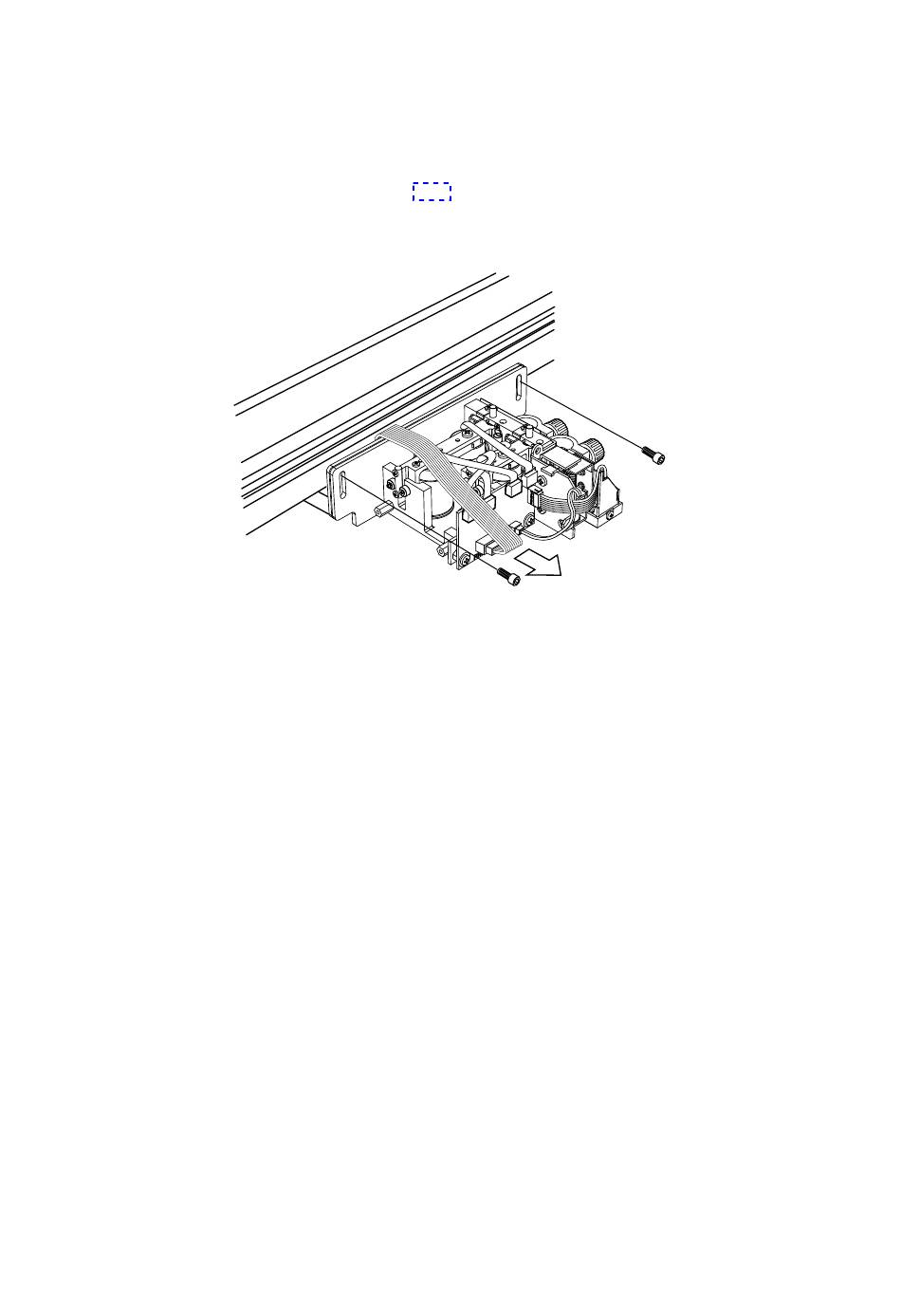

How to detach the pen block
(1) Detach the pen block cover (See the section 7.1.5).
(2) Disconnect the cable from the connector J800 on the pen board.
(3) Remove the two screws holding the pen block, and then detach the pen block from the Y bar.
FC2250-UM-251-9370 7-25
