7.5.8 Preparing the Y Flexible Cable Assembly

Assemble the Y flexible cable assembly if you have the Y flexible cable (PN:162291101) and the Y flexible
cable reinforcement (PN:022904331) separately.
You don't need to assemble if you have the Y flexible cable assembly (PN:772258520).
How to assemble the Y flexible cable assembly
(1) Prepare following size of the double-sided adhesive tapes. And affix those pieces of double-sided
adhesive tape to the flexible cable and the flexible cable guide as shown in figure below.
(2) Write down the connector number at the end of the flexible cable by using oil based fiber tip pen as
shown in figure below.
Prepare following size of the double-sided adhesive tapes.
1
2
3
4
5

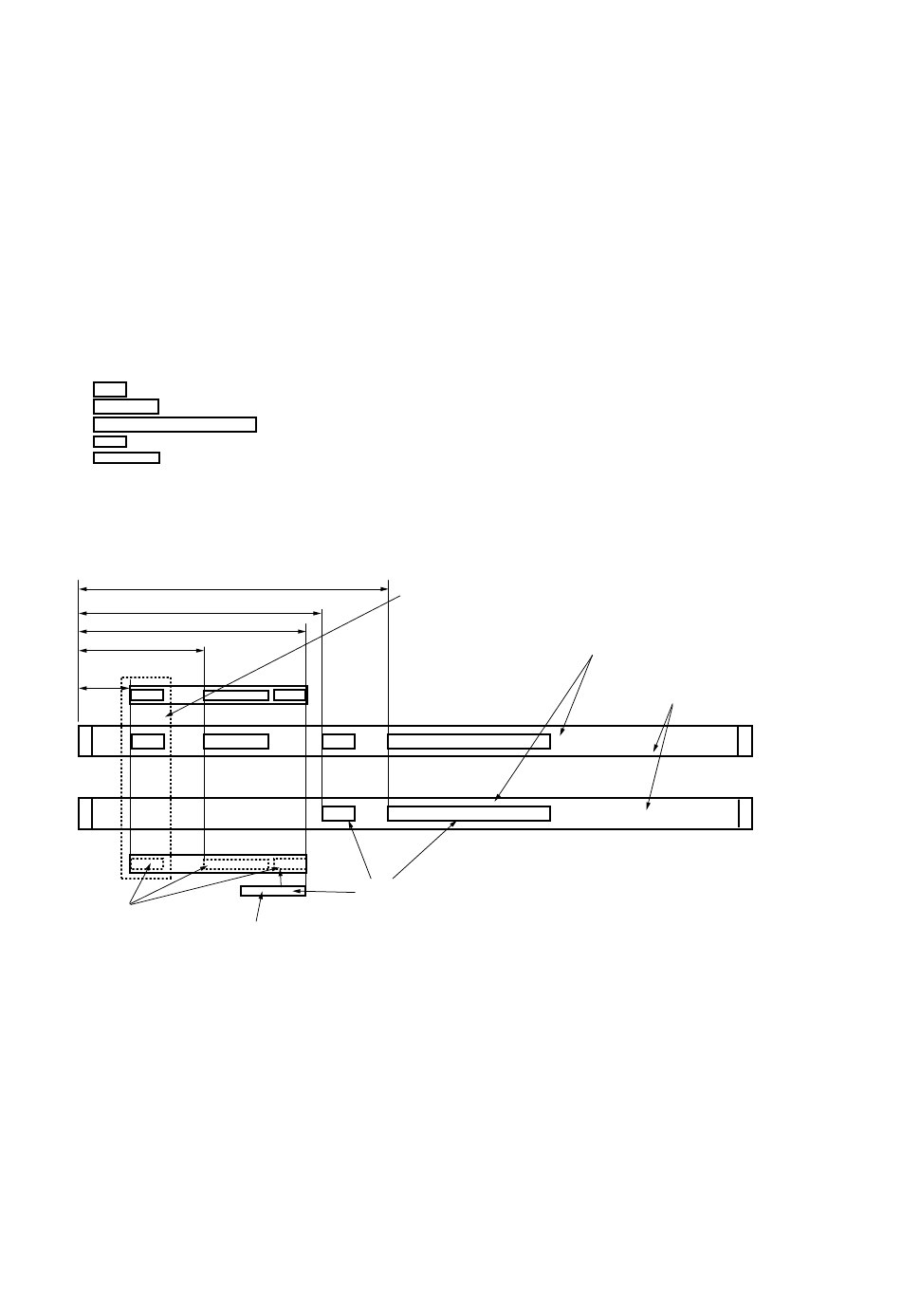

Affix those pieces of double-sided adhesive tapes to the flexible cables
and the flexible cable guides as shown in figure below.
905mm
735mm
625mm
35mm
4
FLEXG2
J671
1
J561
4
FLEXG1
Affix to
the reverse side.
FC2250-UM-251-9370
10 X 20mm (3)
10 X 40mm (1)
10 X 200mm (2)
5 X 20mm (4)
5 X 40mm (2)
985mm
5
4
1
2
1
4
5
Remove the protection labels for these double-sided
5
adhesive tapes when installing the flexible cable to the Y bar.
Affix to the front side.
7. DISASSEMBLY AND ADJUSTMENT
Remove these three protection labels for these double-sided
adhesive tapes after connect the flexible cable to
the connector J671 and J561.
3
3
7-52
Flexible cable
Face up where character is printed.
J453
J452
