7.6.4 Adjusting the Roller Tension of the Rear X Slider

(1) Using gauze or a soft cloth moistened with ethyl alcohol, clean the sliding surface of the rear X rail. At
this time, confirm the absence of scratches or dents in the sliding surface.
(2) Loosen the screw of the pressure (adjustable) roller of the rear X slider. When inserting the rear X rail
from the belt tension adjustment holder side, take care that the plastic roller is not scratched by the edge
of the rear X rail.

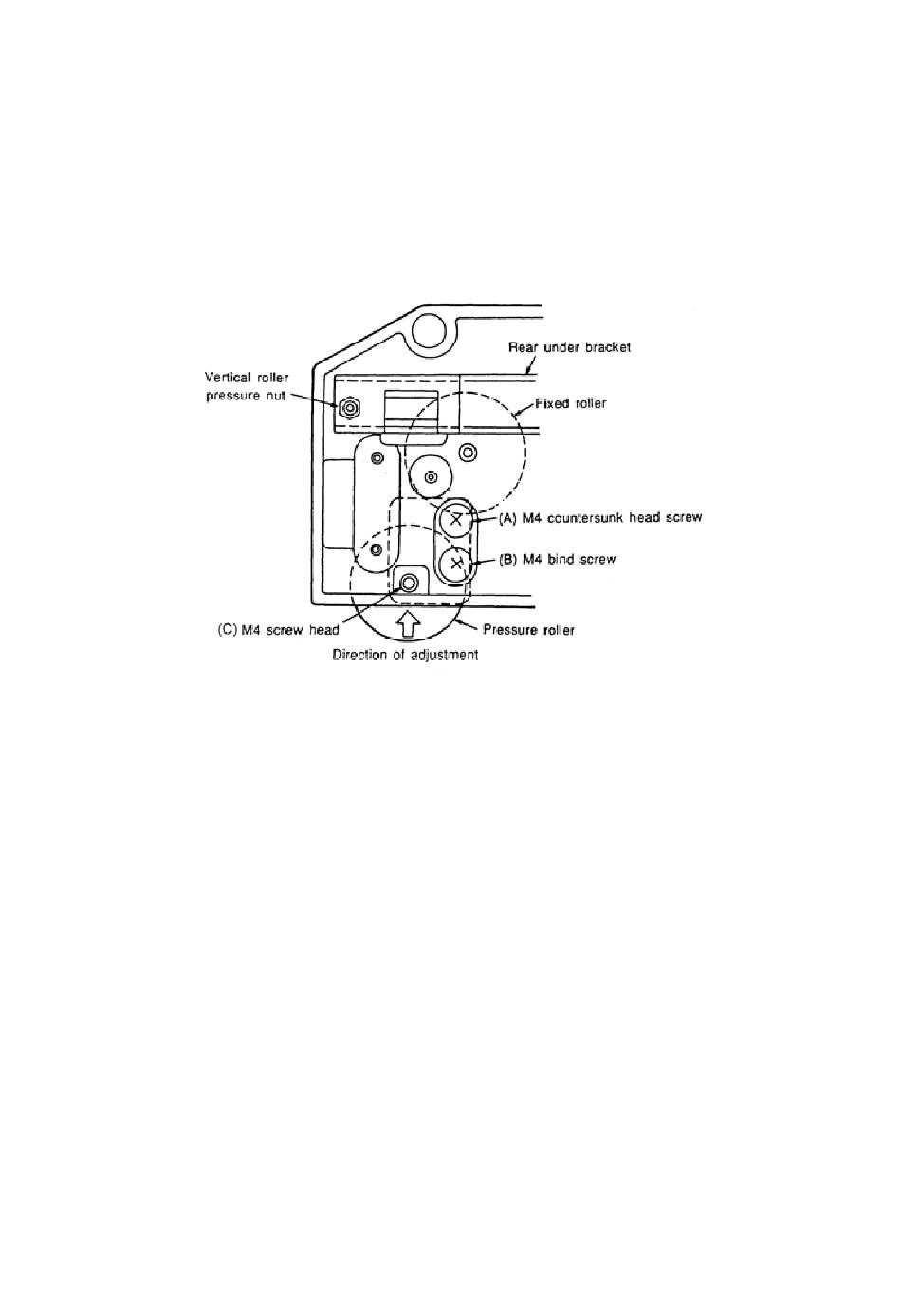

(3) Adjusting the horizontal roller pressure
• After adjusting the screws indicated by (A) and (B), be sure to lock them in place with adhesive.
• After tightening screw (A), loosen it by a quarter turn. Use a blade screwdriver to press the screw head
(C) in the direction indicated by the arrow, then tighten screws (A) and (B) at the position where the
pressure roller contacts the sliding surface of the rear X rail. (Repeat this same procedure for the right
roller.)
Confirm that the rollers remain in contact with the sliding surface throughout their entire stroke, the
sound made by the rollers turning is constantly the same, and the rollers slide smoothly.
