1-Pen Board (Pr223107) - GRAPHTEC Cutting PRO FC2230 Series Service Manual

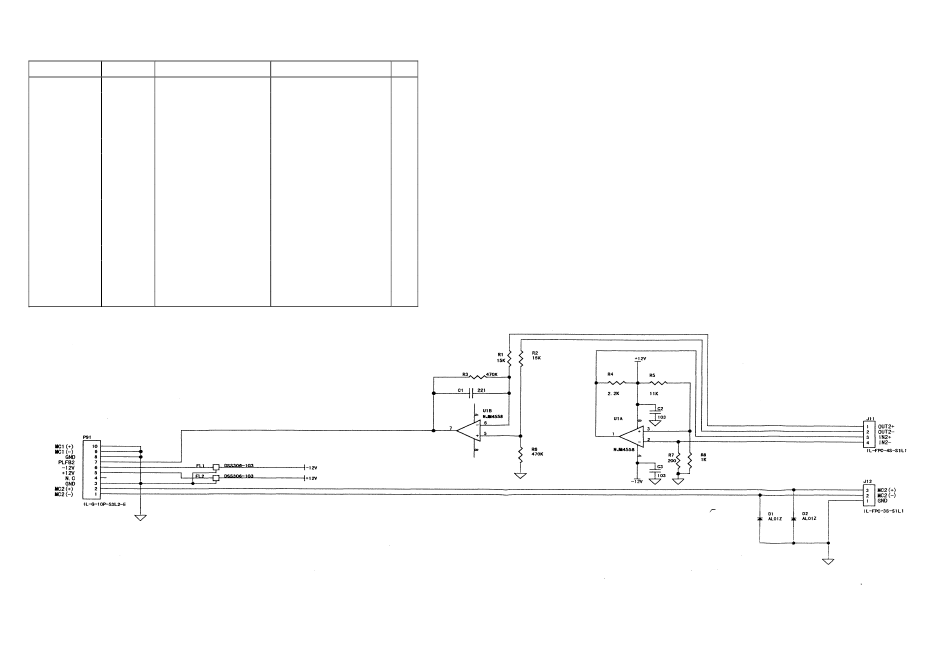

10.8 1-Pen Board (PR223107)

Circuit No. Part No. Description
PCB 682807070 PCB
U1 504084558 IC
R1, R2 501303777 Resistor
R3, R6 501303735 Resistor
R4 501303715 Resistor
R5 501303779 Resistor
R7 501303744 Resistor
R8 501303712 Resistor
C1 500000642 Capacitor, ceramic
C2, C3 500000645 Capacitor, ceramic
D1, D2 500000731 Diode
FL1, FL2 502010002 Filter
J11 505000040 Connector
J12 513100949 Connector
P91 513100926 Connector
FC2230-UM251-01-1600
Rating Q'ty
PR223107 1
NJM4558D 1
RNM1/4S-15KF 2
RNM1/4S-470KF 2
RNM1/4S-2.2KF 1
RNM1/4S-11KF 1
RNM1/4S-200ΩF
1
RNM1/4S-1KF 1
CC, RPU04B221K-T 1
CC, RPU08F103Z-T 2
SD, AL01Z 2
DSS306-55FZ103N1 2
IL-FPC-4S-S1L1 1
CN, IL-FPC3S-S1L1 1
CN, IL-G-10PS3L2E 1
10-11
