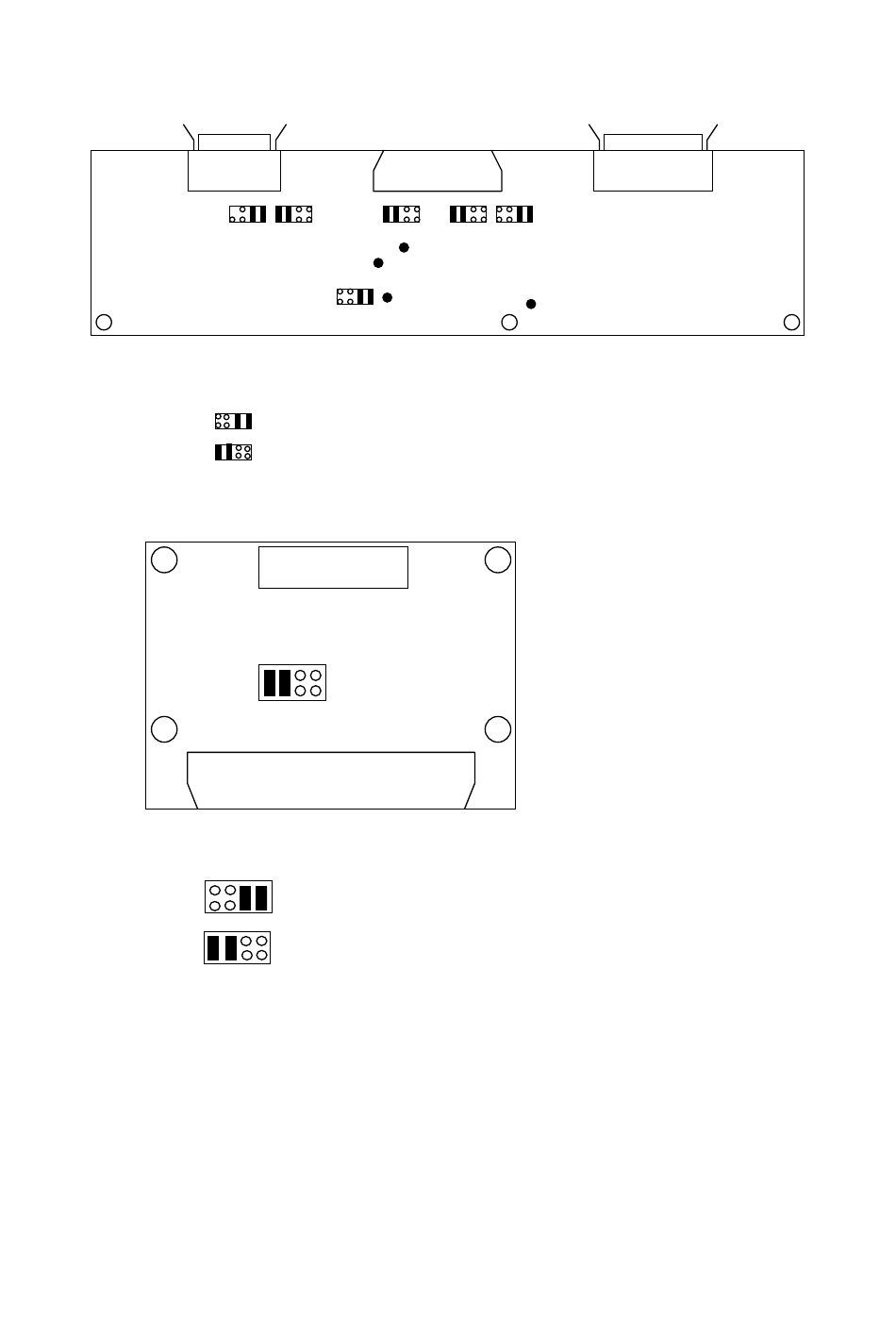

7.2.2 Main Joint Board (PR223282)

Jumper switch setting of JP6.
1 pen type.
2 pen type.
7.2.3 X Flex. Board (PR223224)
Jumper switch setting of JP6.
1 pen type.
2 pen type.
FC2230-UM251-01-1600
JP2 JP1 JP6
TP3
TP1
JP5
JP1
JP4 JP3
TP2
TP4
7-3
