7.14 DIP Switch Factory Settings

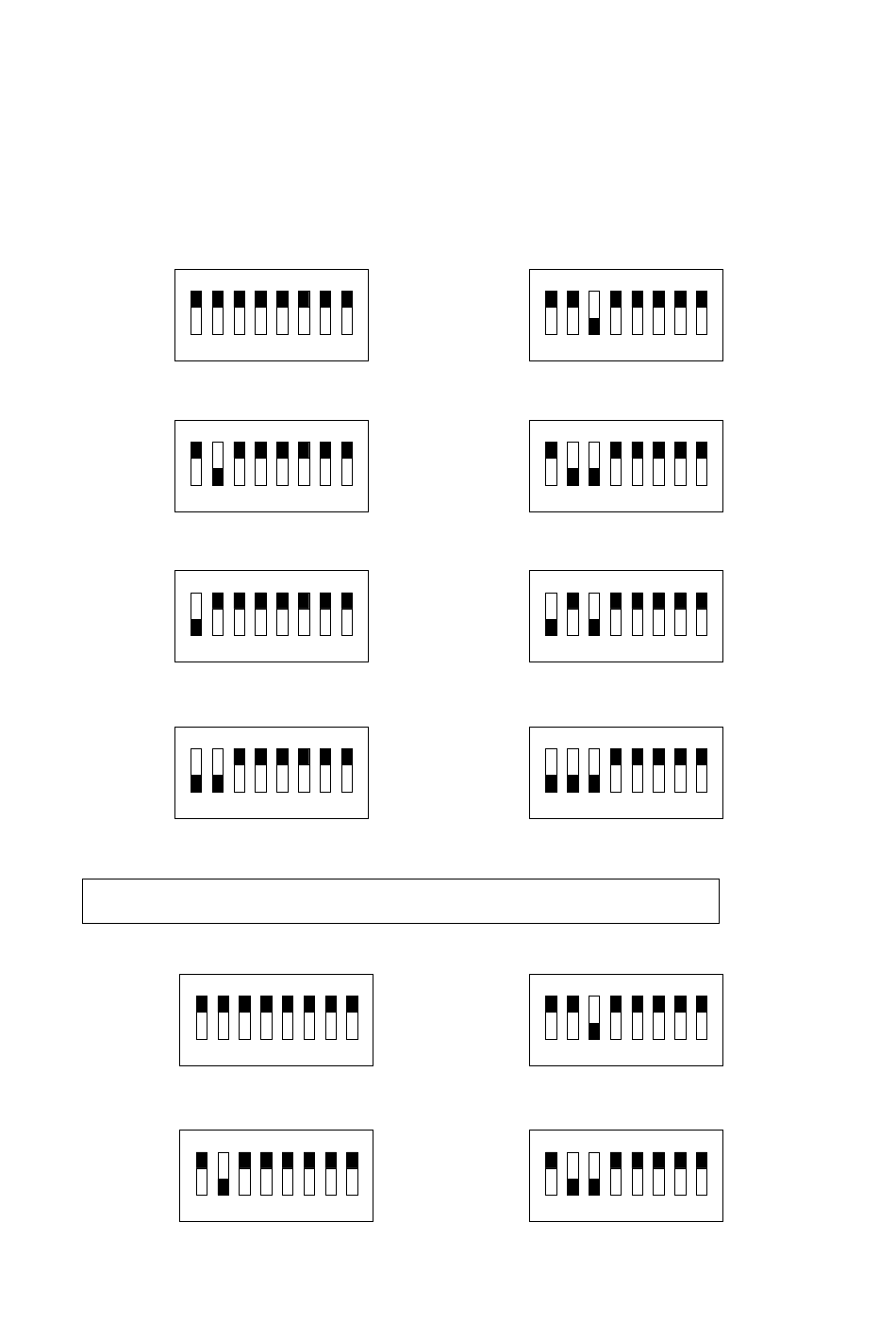

Settings for DIP Switch on the Main Board
1. FC2231-90/90EX/90T/90EXT, FC2232-90/90EX/90T/90EXT
FC2231-90
Set Bits all ON
ON
1
FC2232-90
Set Bit 2 to OFF
ON
1
FC2231-90EX
Set Bit 1 to OFF
ON
1
FC2232-90EX
Set Bits 1 and 2 to OFF
ON
1
2. FC2231-60/60T, FC2232-60/60T
NOTE: ROM is different from -60/60T in the case of -90/90EX.
FC2231-60
Set Bits all ON
ON
1
FC2232-60
Set Bit 2 to OFF
ON
1
FC2230-UM251-01-1600
8
8
8
8
8
8
FC2231-90T
Set Bit 3 to OFF
ON
1
8
FC2232-90T
Set Bits 2 and 3 to OFF
ON
1 8
FC2231-90EXT
Set Bits 1 and 3 to OFF
ON
1 8
FC2232-90EXT
Set Bits 1, 2 and 3 to OFF
ON
1 8
FC2231-60T
Set Bit 3 to OFF
ON
1 8
FC2232-60
Set Bits 2 and 3 to OFF
ON
8
1
7-19
