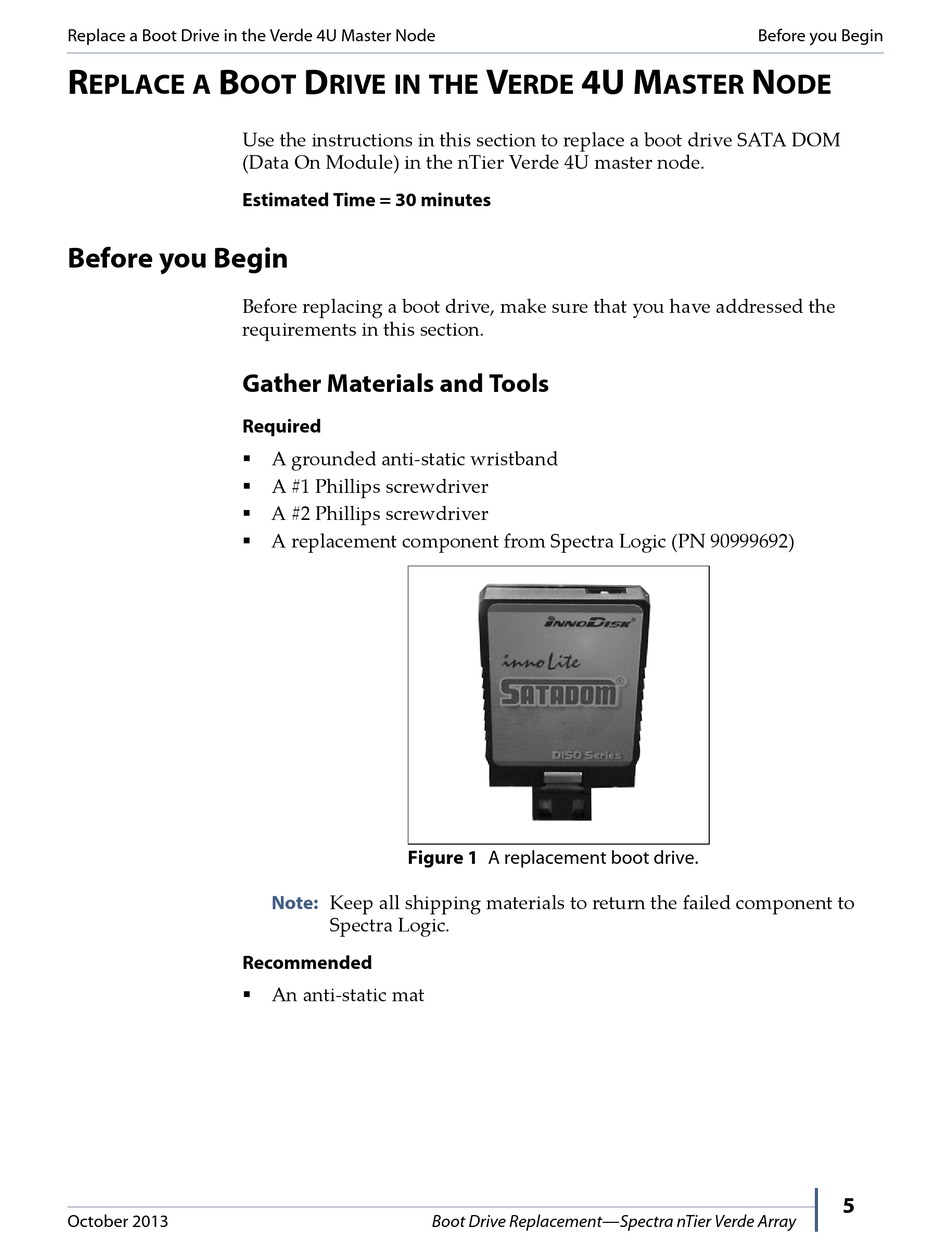

Replace a Boot Drive in the Verde 4U Master Node
R B
EPLACE A OOT
Use the instructions in this section to replace a boot drive SATA DOM
(Data On Module) in the nTier Verde 4U master node.
Estimated Time = 30 minutes

Before you Begin

Before replacing a boot drive, make sure that you have addressed the
requirements in this section.
Gather Materials and Tools
Required
 A grounded anti‐static wristband
 A #1 Phillips screwdriver
 A #2 Phillips screwdriver
 A replacement component from Spectra Logic (PN 90999692)
Recommended
 An anti‐static mat
October 2013
D
RIVE IN THE
Figure 1 A replacement boot drive.
Note: Keep all shipping materials to return the failed component to
Spectra Logic.
Boot Drive Replacement—Spectra nTier Verde Array
V 4U M
ERDE ASTER
Before you Begin
N
ODE
5
