Replace a Boot Drive in the Verde 4U Master Node
2. Grasp both handles of the front panel of the nTier Verde array and pull
3. While supporting the front of the chassis with one hand, press and hold
4. Move the array to a sturdy work surface.
October 2013
the array out of the rack until the outer rails are fully extended and the
self‐locking latches engage on each rack rail.
Extended outer rail

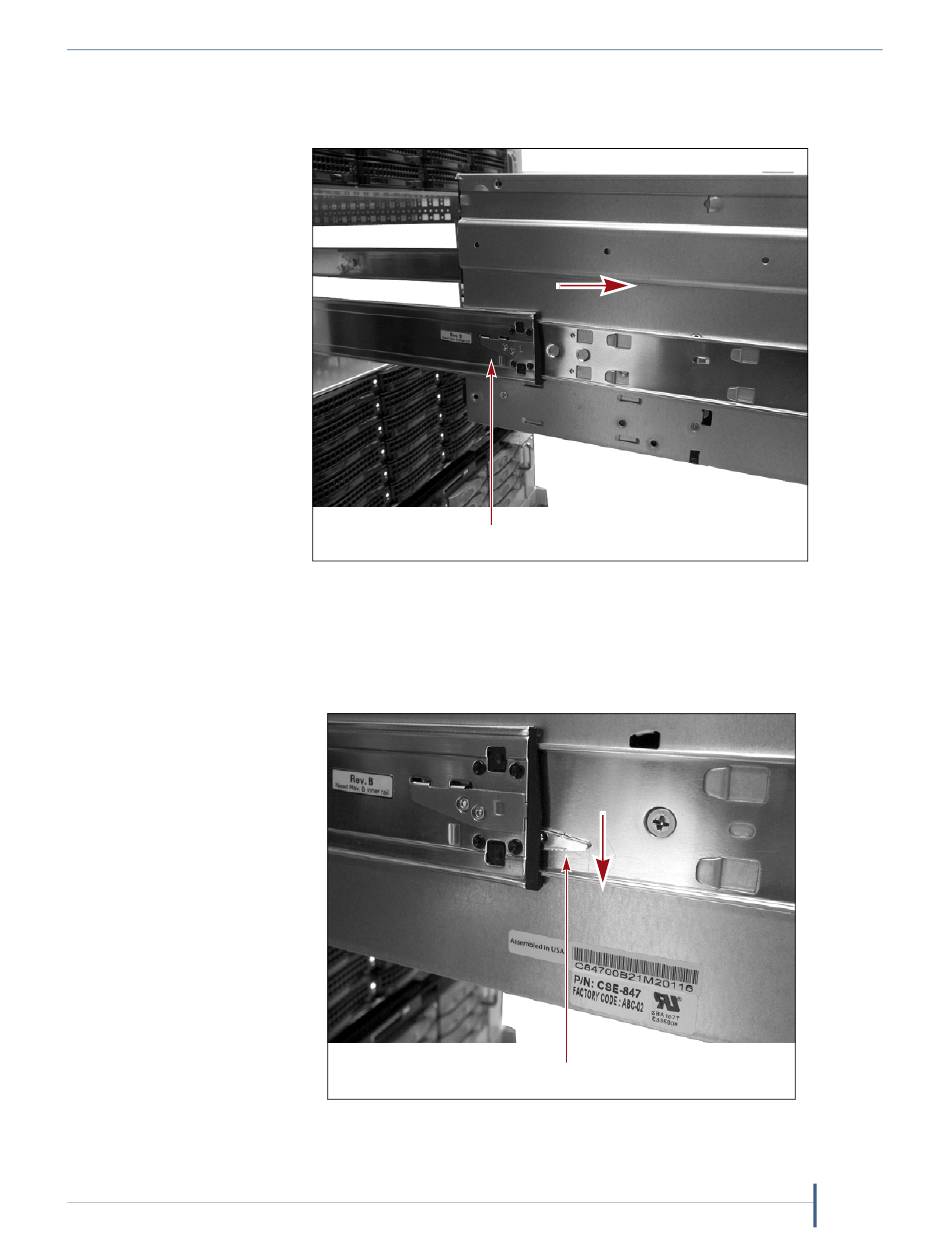

Figure 5 Pull the array out of the rack to extend the outer
rails.
the self‐locking latches on both inner rails downward. While
supporting the array, pull the chassis the rest of the way out of the rack.
Figure 6 Press the self-locking latch downward.
Boot Drive Replacement—Spectra nTier Verde Array
Locking latch
Replace a Boot Drive
