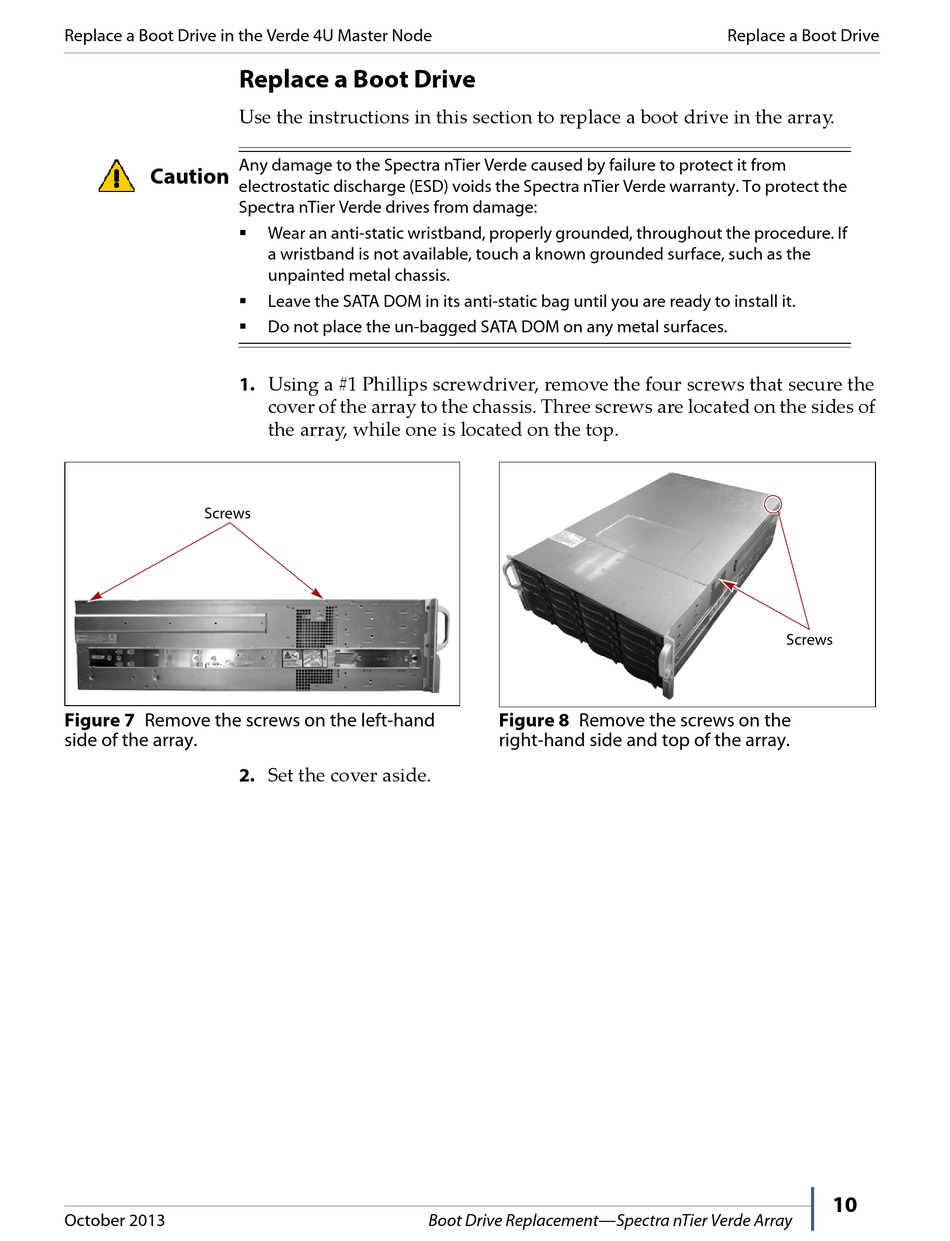

Spectra nTier Verde Array Manual page 10

Replace a Boot Drive in the Verde 4U Master Node
Replace a Boot Drive
Use the instructions in this section to replace a boot drive in the array.
Any damage to the Spectra nTier Verde caused by failure to protect it from
Caution
electrostatic discharge (ESD) voids the Spectra nTier Verde warranty. To protect the
Spectra nTier Verde drives from damage:



1. Using a #1 Phillips screwdriver, remove the four screws that secure the
Screws
Figure 7 Remove the screws on the left-hand
side of the array.
2. Set the cover aside.
October 2013
Wear an anti-static wristband, properly grounded, throughout the procedure. If
a wristband is not available, touch a known grounded surface, such as the
unpainted metal chassis.
Leave the SATA DOM in its anti-static bag until you are ready to install it.
Do not place the un-bagged SATA DOM on any metal surfaces.
cover of the array to the chassis. Three screws are located on the sides of
the array, while one is located on the top.
Boot Drive Replacement—Spectra nTier Verde Array
Figure 8 Remove the screws on the
right-hand side and top of the array.
Replace a Boot Drive
Screws
