Replace a Boot Drive in the Verde 4U Master Node
2. Position the chassis in front of the rack rails and lift it so that the inner
3. Slide the chassis into the rack until the self‐locking latches engage.
4. While supporting the front of the chassis with one hand, press the
October 2013
rails are at the same height as the extended sections of the outer rails
attached to the rack.
Extended outer rail

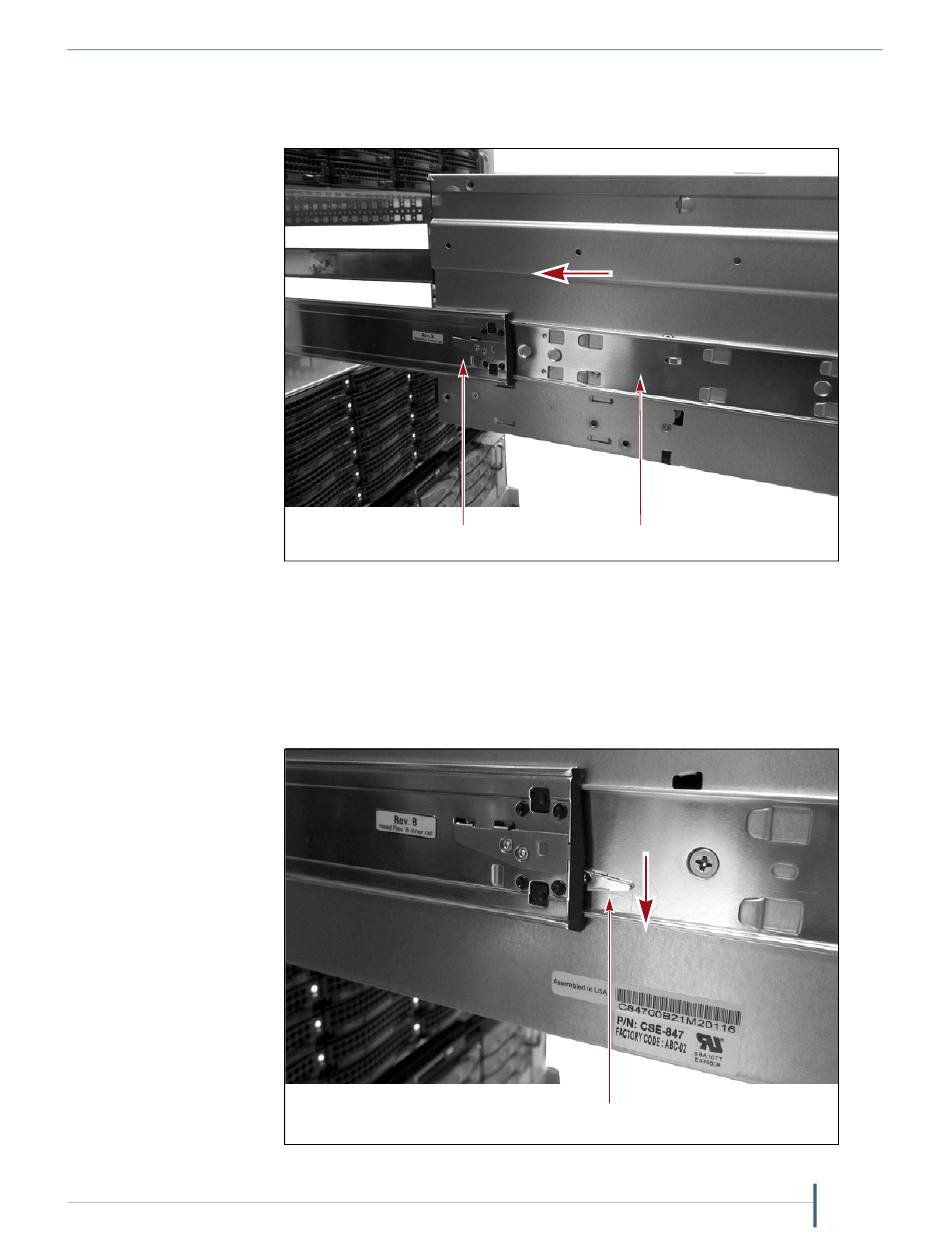

Figure 13 Extend the outer rails and slide the chassis into the rack.
self‐locking latches on both inner rails downward. Push the chassis the
rest of the way into the rack until the mounting brackets on the front of
the chassis are flush with the front posts of the rack.
Figure 14 Press the self-locking latch downward.
Boot Drive Replacement—Spectra nTier Verde Array
Replace a Boot Drive
Inner rail
Locking latch
