Replace a Boot Drive in the Verde 4U Master Node
3. Locate the failed boot drive in the array. Boot drive 1 is toward the center,

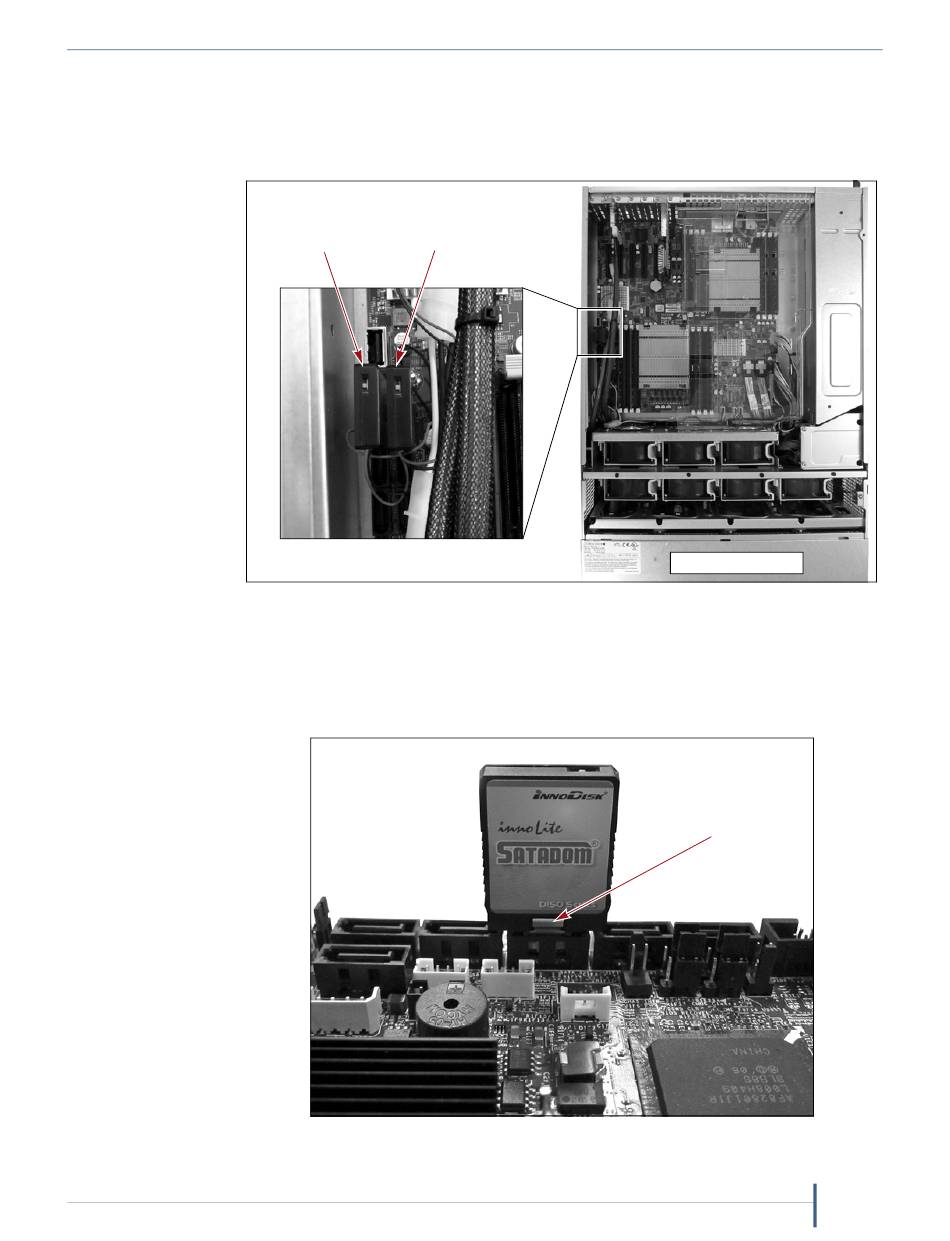

Figure 9 Locate the boot drive to remove.
4.
October 2013
closest to the system memory, while boot drive 2 is closest to the chassis
wall.
Note: To remove boot drive 2, you must first remove boot drive 1.
Boot drive 2 Boot drive 1
Locate the clip securing the boot drive to the motherboard. Figure
shows the clip holding the drive. You will not be able to see the clip
from your viewing angle; this picture is intended to give you a frame of
reference.
Figure 10 The clip securing the boot drive to the
motherboard.
Boot Drive Replacement—Spectra nTier Verde Array
Replace a Boot Drive
Front of chassis
10
Clip
