Replace a Boot Drive in the Verde 4U Master Node
Replace a Boot Drive
To replace a boot drive in the nTier Verde array, the array must be taken
out of its rack. If the array is not mounted in a rack, skip to Replace a Boot
Drive on page

Remove the Front Bezel

You need to remove the front bezel prior to removing the array from a
rack. The bezel is held in place with magnets. Grasp the sides of the bezel
and pull it straight off the array.
Remove the Array From a Rack
Use these instructions to remove the array from a rack.
The Spectra nTier Verde array weighs between 57 lb (25.8 kg) and 136 lb (61.9 kg)
Warning
depending on how many drives are installed. Use extreme caution when moving it.
Always use two people, one on each side, when lifting or moving it.
WARNUNG
nachdem, wie viele Laufwerke installiert sind. Seien Sie besonders vorsichtig, wenn
Sie es bewegen. Immer zwei Personen, eine auf jeder Seite, beim Heben oder
Bewegen.
1. Using a #2 Phillips screwdriver, remove the screw on each side of the
October 2013
10.
Die Spectra nTier Verde wiegt zwischen 25,8 kg und 61,9 kg je
front of the array.
Screw

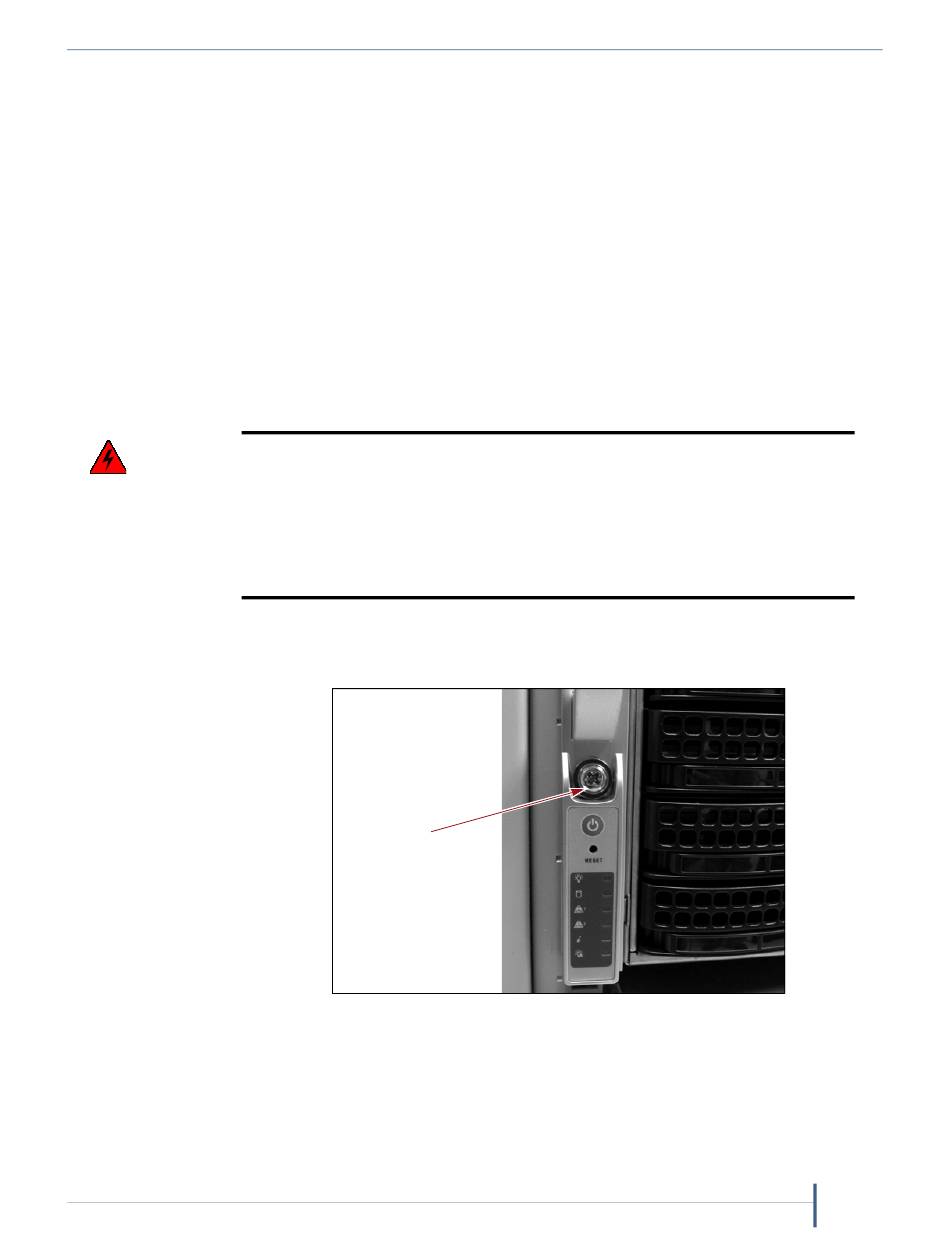

Figure 4 Remove the screw on each side of the front of
the array.
Boot Drive Replacement—Spectra nTier Verde Array
Replace a Boot Drive
8
