EVAL-ADXRS290Z-M
1. Select the destination directory. The installer autopopulates
the names of the directories in which to store the software
GUI and required National Instruments products (see
Figure 11). You can change these directories; however,
most installations can proceed with the default values.
2. When you finish selecting a directory, click Next. The
National Instruments Software License Agreement is
displayed.
3. Read the license agreement before accepting it; then, click
Next. The installer lists the required components to install
on your PC (see Figure 12).
4. To start the installation, click Next. The installer completes
installation of the software evaluation GUI and all required
National Instruments drivers and run-time engines. After
the installation is complete, the box shown in Figure 13 is
displayed.
5. Click Finish to complete the installation.

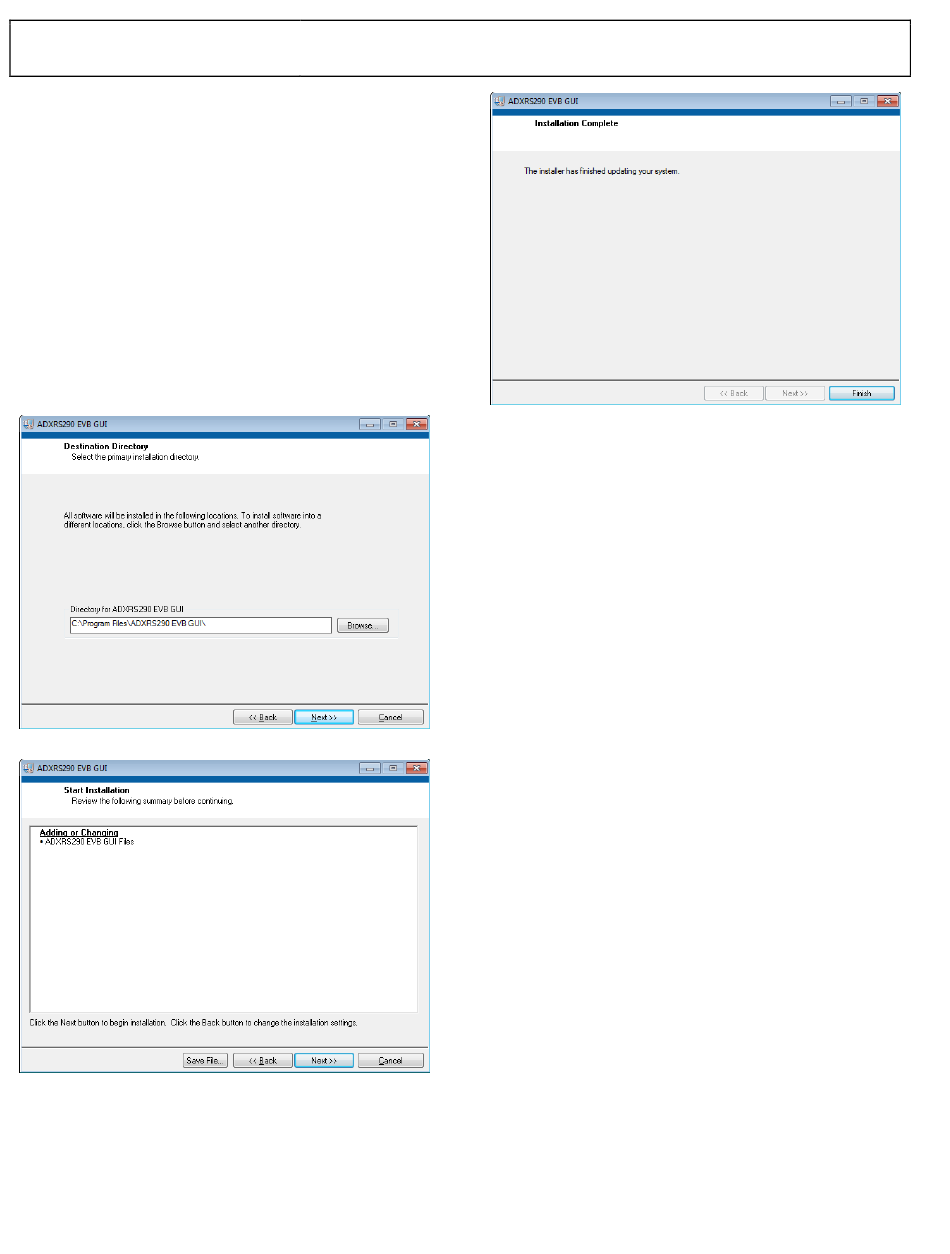

Figure 11. ADXRS290 EVB GUI Destination Directory Selection
Figure 12. ADXRS290 EVB GUI Start Installation (Listing Varies
Based on PC Requirements)
Figure 13. ADXRS290 EVB GUI Installation Complete

EVALUATION BOARD SETUP PROCEDURES

Before using the software for testing, configure the evaluation
board as follows:
1. Connect the EVAL-ADXRS290Z-S with ISEB using the
18-inch, 20-pin ribbon cable. This cable is keyed to prevent
inserting it backwards and causing damage to the system.
2. Connect the ISEB to the USB cable.
3. Plug the USB A to Mini-B cable into the PC, if prompted
to install the device, see the Install USB Drivers section
for details on how to install and select the correct driver.
The ADXRS290 evaluation system should now be set up and
ready to use.

EVALUATION BOARD HARDWARE

The EVAL- ADXRS290Z-M provides all of the support
circuitry required to operate the ADXRS290 in its various
modes of configurations. Figure 1 shows typical bench
characterization setup used to evaluate the EVAL-
ADXRS290Z-M.
Firstly, the EVAL-ADXRS290Z-M could be used to study and
evaluate ADXRS290. User can view and save the real time
output of ADXRS290 on PC for algorithm developing; check
the noise performance of ADXRS290; check the power
consumption of ADXRS290 under different work mode; view
and save ADXRS290 temperature drift data; change the power
supply and check the ADXRS290 performance under different
power supply.
Secondly, the EVAL-ADXRS290-M could be used to do
secondary development by user. Different reference designs
can be realized based on it.

POWER SUPPLIES

All kinds of EVAL- ADXRS290Z-M functions can be
supported by USB directly, no other power supply needed to
run the board. There are on board DC-DC, LDO and Voltage
References to adjust the supply for each part on the evaluation
board.
