Evaluating the ADIN1100 Robust, Industrial, Low Power 10BASE-T1L PHY, and Media Converter to 10BASE-T with

FEATURES

User friendly access to all
GUI software on PC or standalone hardware configured opera-
tion
Flexible power supplies and prototyping options
On-board Arm Cortex-M
ADuCM4050
10BASE-T1L to 10BASE-T media converter

EVALUATION KIT CONTENTS

EVAL-ADIN1100EBZ board
2× plugin screw terminal connectors for 10BASE-T1L cable and
external power supply
Category 5e Ethernet cable with RJ45 connectors (1 meter)
USB-A to micro USB-B cable (1 meter)

EQUIPMENT NEEDED

Link partner with 10BASE-T1L interface
10BASE-T1L-compatible, single-pair cable (1.5 mm
16 American wire gauge (AWG) to fit screw terminal connector)
Power supply source: 5 V dc to 32 V dc, 0.6 W, or USB as power
for the board
Optional: link partner with standard RJ45 Ethernet interface,
autonegotiation resolving to 10BASE-T full duplex
Optional: PC running Windows
interface

SOFTWARE (OPTIONAL)

ADIN1100 graphical user interface (GUI) software package
Future Technology Devices International Limited (FTDI) USB
virtual COM port driver for selected host
Serial port terminal software

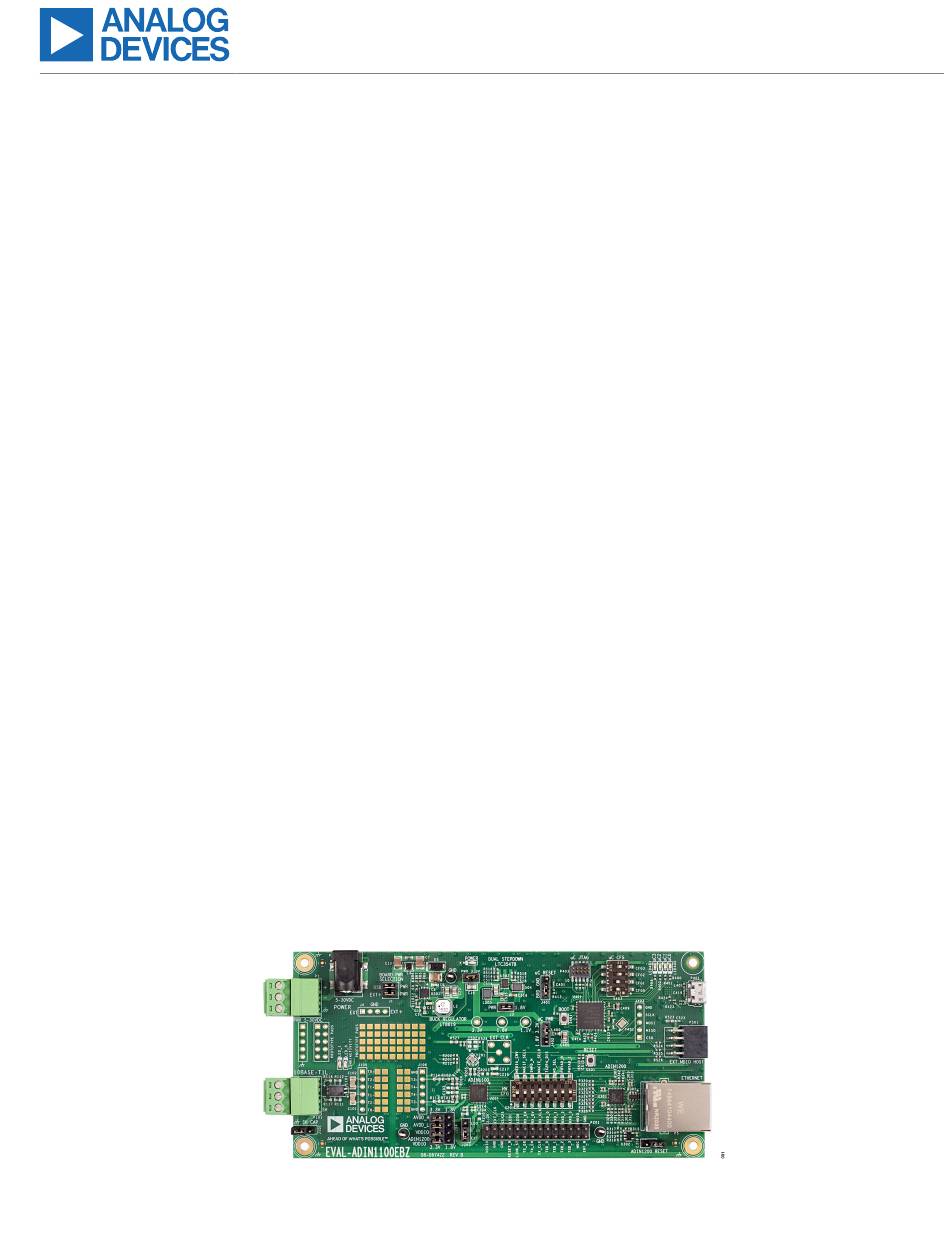

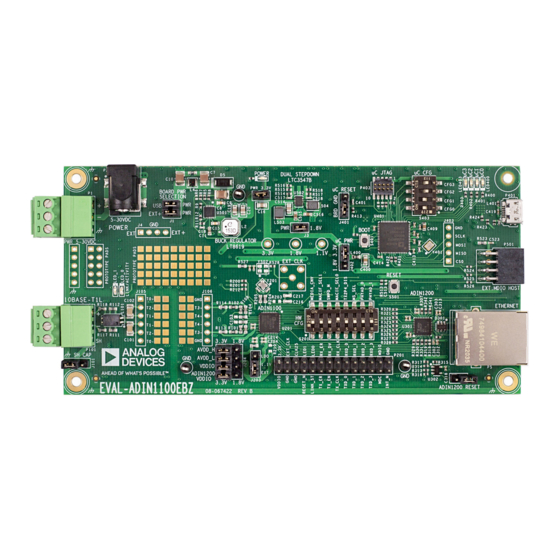

EVAL-ADIN1100EBZ BOARD PHOTOGRAPH

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADIN1100
features
microcontroller
2
maximum,
®
7 (or later version) with USB
User Guide | EVAL-ADIN1100
ADIN1200 Ethernet PHY

DOCUMENTATION NEEDED

ADIN1100 data sheet

GENERAL DESCRIPTION

The EVAL-ADIN1100EBZ is a flexible platform enabling quick eval-
uation of the ADIN1100 robust, low power 10BASE-T1L PHY. The
EVAL-ADIN1100EBZ provides 10 Mbps single pair Ethernet (SPE)
connections with devices across 1.7 km of cable.
The evaluation board offers two modes of operation for maximum
flexibility. Connected to a PC via USB port, the full set of ADIN1100
register settings and features such as link quality monitoring and
diagnostics can be accessed with the ADIN1100 GUI software.
Alternatively, the EVAL-ADIN1100EBZ board can operate in stand-
alone mode where it is configured by setting hardware configuration
links and switches. On-board LEDs provide status indication.
The ADIN1100 data (MII, RMII, and RGMII) and management
(MDIO) interfaces are accessible on header connectors for easy
connection to an external host controller.
A small prototyping area and test points are provided for experi-
mentation with alternative cable connection topologies including
isolation transformers and/or power coupling inductors.
The platform can perform as a 10BASE-T1L to 10BASE-T media
converter. This feature enables connection to other devices (dem-
onstration boards or custom prototypes) with a 10BASE-T1L Ether-
net port and conversion of the data to standard Ethernet, which is
accessible via the RJ45 connector.
Full details about the ADIN1100 are available in the ADIN1100
data sheet, which must be consulted when using the EVAL-
ADIN1100EBZ.
Figure 1.
UG-2011
Rev. 0 | 1 of 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-ADIN1100EBZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Analog Devices EVAL-ADIN1100EBZ

  • Page 1: Features

    GUI software on PC or standalone hardware configured opera- ► GENERAL DESCRIPTION tion Flexible power supplies and prototyping options ► The EVAL-ADIN1100EBZ is a flexible platform enabling quick eval- On-board Arm Cortex-M ADuCM4050 microcontroller uation of the ADIN1100 robust, low power 10BASE-T1L PHY. The ►...
  • Page 2: Table Of Contents

    Software (Optional)..........1 Driver for USB COM Port........8 Documentation Needed.........1 Serial COM Port and Terminal Settings....8 General Description..........1 Terminal Software..........8 EVAL-ADIN1100EBZ Board Photograph....1 Terminal Commands and Messages....8 Overview..............3 Initial Welcome Message........8 Hardware............... 5 Terminal Commands.......... 8 Power Supplies..........5 Status and Diagnostics........9...
  • Page 3: Overview

    Micro USB Connector For use of the EVAL-ADIN1100EBZ board with PC GUI software or USB COM port to host terminal software: 115,200 baud rate, 8-bit, no parity, one stop bit. The board can receive power from a USB port or charger.
  • Page 4 User Guide EVAL-ADIN1100 OVERVIEW Figure 3. EVAL-ADIN1100EBZ Simplified Block Diagram analog.com Rev. 0 | 4 of 11...
  • Page 5: Hardware

    HARDWARE POWER SUPPLIES GROUND CONNECTIONS The EVAL-ADIN1100EBZ can be powered by a power supply with The EVAL-ADIN1100EBZ board has an Earth node. Although this an output voltage between 5 V dc and 32 V dc connected via the node may or may not be electrically connected to Earth ground, in...
  • Page 6 User Guide EVAL-ADIN1100 HARDWARE Table 3. Default Firmware Mode Configuration, S403 (Labeled uC CFG) Switch Position Switch Name Default Position CFG_0 CFG_1 CFG_2 CFG_3 Mode 15 media converter (default positions for S403 when shipped). All switches off. See Table Table 4. ADIN1100 Hardware Configuration, S201 (Labeled HW CFG) Switch Position Switch Name Default Position Description...
  • Page 7: Microcontroller Modes Of Operation

    MICROCONTROLLER MODES OF OPERATION reset by pressing the S501 reset button or by applying a power The EVAL-ADIN1100EBZ can be used in various modes of opera- cycle after changing the position of the S403 DIP switch. tions implemented in the microcontroller firmware. Up to 16 modes of operations can be selected by setting the four positions of the S403 dual inline package (DIP) switch.
  • Page 8: Software

    LEDs. There is no software needed for this standalone RealTerm, Termite, and the HyperTerminal. use case. TERMINAL COMMANDS AND MESSAGES The EVAL-ADIN1100EBZ can also be connected to a PC via a USB port. The full set of ADIN1100 register settings and features such...
  • Page 9: Status And Diagnostics

    STATUS AND DIAGNOSTICS To stop the continuous update, use the stop command or reset the To see the status of the EVAL-ADIN1100EBZ, use the physta- EVAL-ADIN1100EBZ board. tus command, which reads and shows the latest status of the ADIN1200 10BASE‑T PHY and...
  • Page 10: Microcontroller Firmware Update

    PC (see Figure Target ADuCM302x 5. On the EVAL-ADIN1100EBZ board, simultaneously press and Serial Port COMx (USB Serial Port) (where x is the port number, hold the S501 (RESET) and S401 (BOOT) buttons. Release the which is set by the USB virtual COM port driver and RESET button first, followed by releasing the BOOT button.
  • Page 11: Notes

    Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
