UG-1237
Updating the firmware may require that a new evaluation GUI
be obtained. If the firmware on the website is used to flash the
ISEB, the evaluation GUI on the corresponding website is
sufficient. If the firmware used is obtained from the Analog
Devices website, use the most recent version of the evaluation
GUI, which is also located on analog.com.
Installing the
ADXL372
For proper operation, additional drivers and run-time engines
are necessary. The software GUI installation did not include the
requisite National Instruments drivers and run-time engines or
VIA. If there are no such run-time engines on your computer,
these must be installed before installing the
evaluation GUI. The run-time engine installer is found in the
/Run Time Engine/ folder on analog.com. To run the software
GUI installation routine, double-click the setup.exe file located
in the /ADXL372 Evaluation Software/ folder on the website.
Complete the following steps to install the evaluation software:
1.
Select the destination directory. The installer autopopulates
the names of the directories in which to store the software
GUI and required National Instruments products (see
Figure 7). You can change these directories; however, most
installations can proceed with the default values.
After selecting a directory, click Next. The National
2.
Instruments Software License Agreement is displayed.
Read the license agreement before accepting it. Click Next.
3.
The installer lists the required components to install on
your PC (see Figure 8).
4.
Click Next to start the installation. The installer completes
installation of the software evaluation GUI and all required
National Instruments drivers and run-time engines. After
the installation is complete, the dialog box (see Figure 9) is
displayed.
5.
Click Finish to complete the installation.

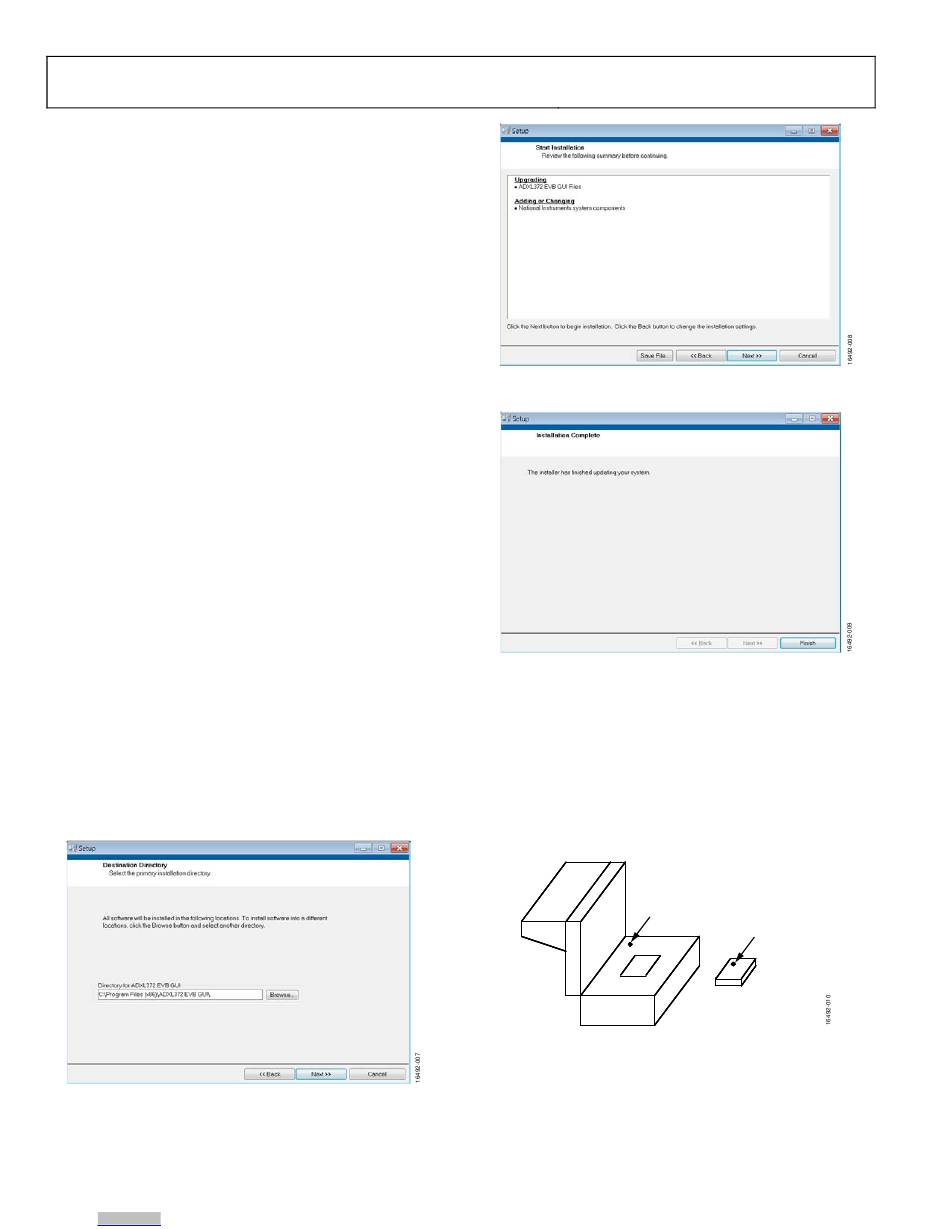

Figure 7.
ADXL372
Evaluation Board GUI Destination Director Selection
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Arrow.com.
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Downloaded from
Software Evaluation GUI
ADXL372
software
EVAL-ADXL372Z-M
Figure 8.
ADXL372
(Listing Varies Based on PC Requirements)
Figure 9.
ADXL372
EVALUATION BOARD SETUP PROCEDURES
Before using the software for testing, configure the evaluation
board as follows:
1.
Place the
ADXL372
satellite board. The Socket Pin 1 indicator is located inside
the socket near the hinge, as shown in Figure 10. Ensure
that this pin indicator aligns with the Pin 1 indicator on the
ADXL372.
Figure 10. Location of Pin 1 Indicator for the
2.
After positioning the
the socket until it latches.
3.
Connect the ISEB to the
18-inch, 20-pin ribbon cable. The ribbon cable is keyed to
Rev. 0 | Page 6 of 13
User Guide
Evaluation Board GUI Start Installation
Evaluation Board GUI Installation Complete
accelerometer into the socket on the
ADXL372 SOCKET
PIN 1 INDICATOR
ADXL372A
ACCELEROMETER
PIN 1 INDICATOR
ADXL372
Accelerometer and
Socket
ADXL372
in the socket, firmly close
ADXL372
satellite using the
