User Guide
EVALUATION BOARD SOFTWARE

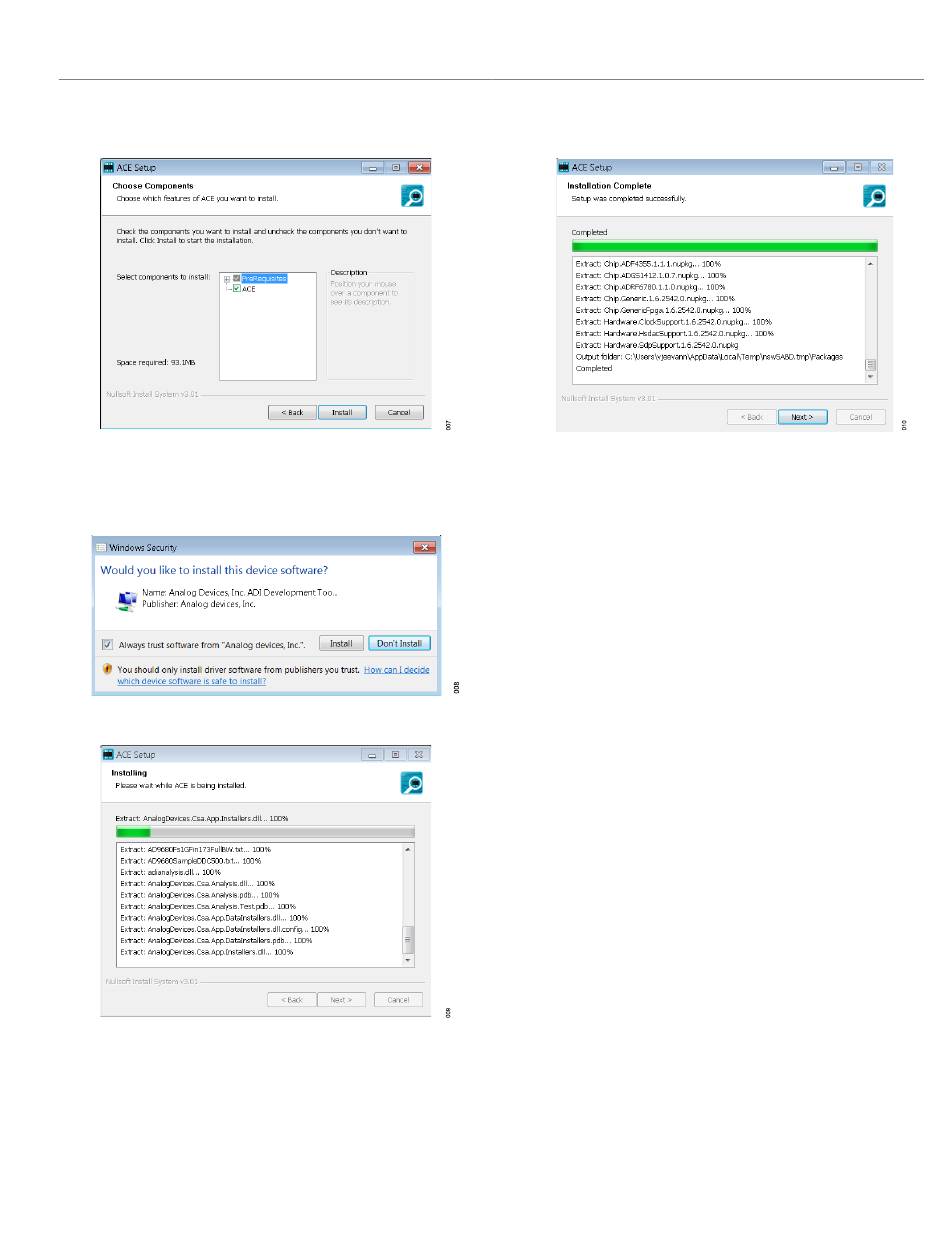

Figure 11. Choose Components
8. The Windows Security window opens (see
Install. Figure 13 shows the installation in progress. No action
is required.
Figure 12. Windows Security Window
Figure 13. Installation in Progress
9. When the installation completes, click Next > (see
and then click Finish.
analog.com
Figure 12). Click

EVALUATION BOARD SETUP PROCEDURES

The EVAL-ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ connects to
the SDP-H1. The SDP-H1 is the communication link between
the PC and the EVAL-ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ.
Figure 1
ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ and the SDP-H1.
Connecting the EVAL-ADAQ4001FMCZ or
EVAL-ADAQ4003FMCZ and the SDP-H1 to a PC
After installing the
the EVAL-ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ and the SDP-
H1:
1. Ensure that all configuration links are in the appropriate posi-
2. Connect the EVAL-ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ
3. Connect the SDP-H1 to the PC via the USB cable included in
Verifying the Board Connection
After connecting the power and the USB cable from the SDP-H1 to
the PC, take the following steps to verify the board connection:
1. After connecting the SDP-H1 to the PC, allow the Found New
Figure 14),
2. Navigate to the Device Manager window of the PC (see
3. A dialog box opens asking for permission to allow the program
EVAL-ADAQ4001/EVAL-
Figure 14. Installation Complete
shows a diagram of the connections between the EVAL-
ACE software, take the following steps to set up
tions, as detailed from Figure 4
securely to the 160-way connector on the SDP-H1. The EVAL-
ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ do not require an ex-
ternal power supply adapter.
the SDP-H1 kit.
Hardware Wizard to run. If prompted by the operating system,
choose to automatically search for the drivers for the SDP-H1.
15).
to make changes to the computer. Click Yes.
ADAQ4003
to Figure 7.
Figure
Rev. B | 10 of 31
