EV-ADF4355SD1Z User Guide

GETTING STARTED

SOFTWARE INSTALLATION PROCEDURES

See the ADF4355 product page for the
control software. For the software installation procedure, see
the PLL Software Installation
EV-ADF4355SD1Z
Guide.

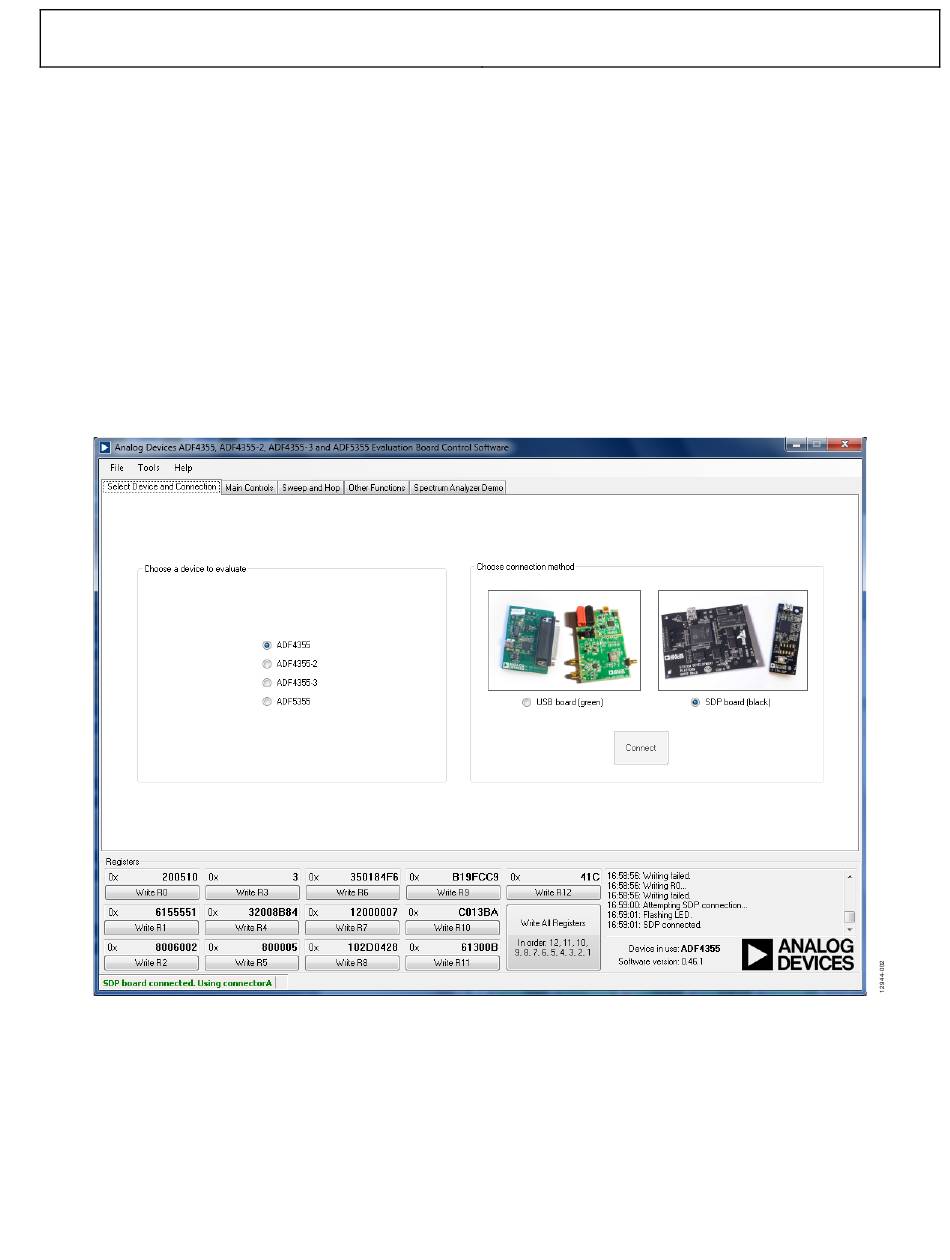

Figure 2. Software Front Panel Display—Select Device and Connection

EVALUATION BOARD SETUP PROCEDURES

To run the software,
1. Click the ADF4355 file on the desktop or from the Start
menu.
2. On the Select Device and Connection tab, choose
ADF4355 and SDP board (black), and then click Connect
(see Figure 2).
3. When connecting the board, allow 5 sec to 10 sec for the
label on the status bar to change.
Under the File menu, the current settings can be saved to, and
loaded from, a text file.
UG-805
