One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com

FEATURES

Flexible inertial sensor evaluation platform
Single main board operates with interchangeable satellite
boards
Separates DUT from controller for accurate environmental
testing
500 Hz data rate SPI interface
Continuous stream to file data recording
Standard USB cable for power and communications
PC-based graphical user interface (GUI)
Fast, easy installation

GENERAL DESCRIPTION

The
ADXRS450/ADXRS453
an easy-to-use evaluation tool targeting bench or desktop
characterization of Analog Devices, Inc., inertial sensor products.
The system consists of the inertial sensor evaluation board (ISEB),
or main board, and satellite boards for several Analog Devices
inertial sensor products. The ISEB connects directly to a PC via
a USB cable, with the USB connection providing both power
and communications to the board. The ISEB is connected to the
satellite board through a ribbon cable. This cable allows the
satellite to be easily manipulated for testing or separately placed
into an environmental chamber for temperature or humidity
testing. Separating the boards mitigates corruption of data due
to the temperature and humidity effects of other components.
The ISEB is a universal main board and is intended to be used
with various satellites of Analog Devices inertial sensors, including
analog and digital accelerometers and gyroscopes. The different
products are evaluated by means of separate GUIs that are custom-
ized for performance and characterization measurements relevant
to the inertial sensor being evaluated.
The EVAL-ADXRS450Z-M/ADXRS453Z-M system contains
the ISEB and the EVAL-ADXRS450Z-S/ADXRS453Z-S satellite.
Also included is a USB A to Mini-B cable to connect the ISEB to
a PC and an 18-inch, 20-pin ribbon cable to connect the ISEB to
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
ADXRS450/ADXRS453 Sensor Evaluation System
inertial sensor evaluation system is
Evaluation Board User Guide

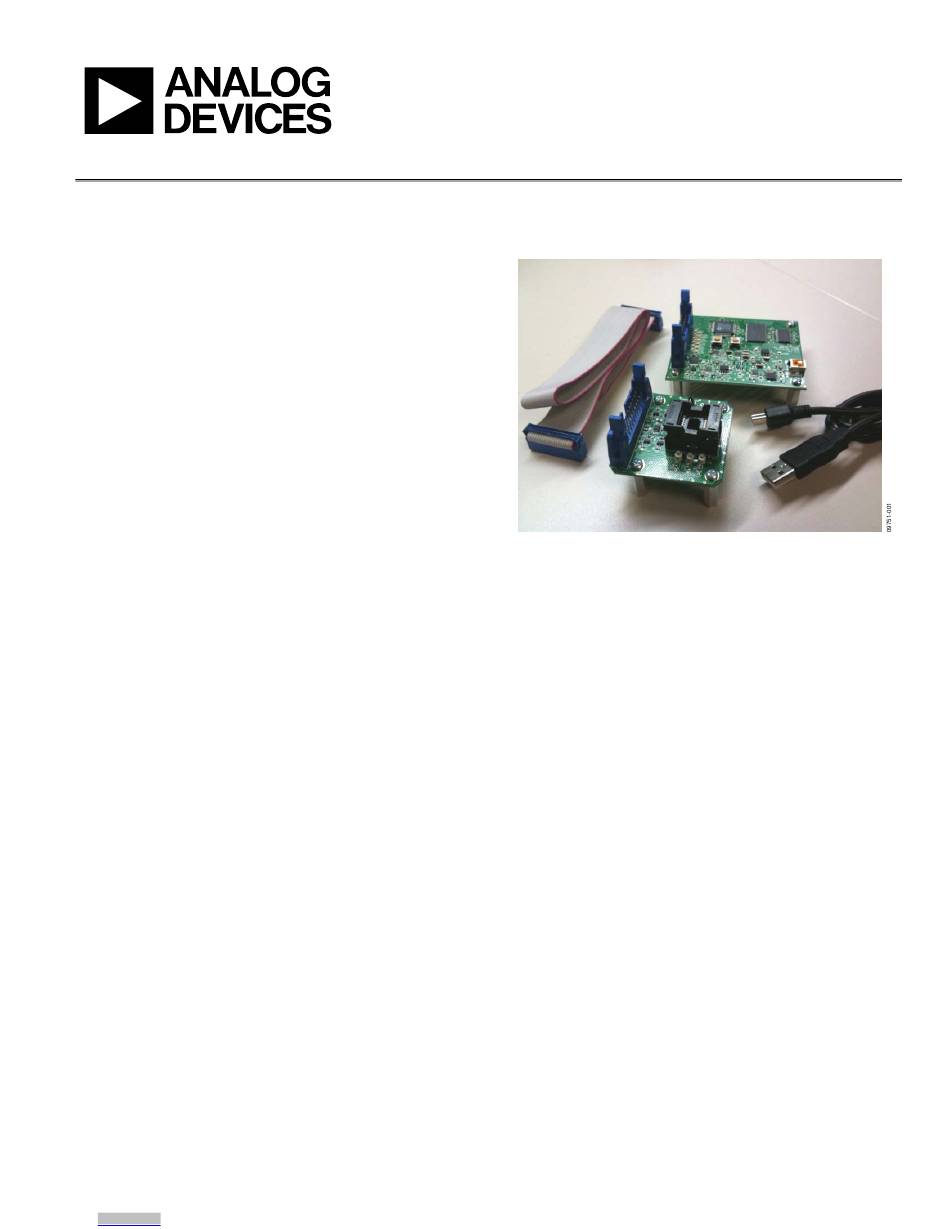

Figure 1. Inertial Sensor Evaluation System
the satellite. A CD is included with the necessary drivers and
installers to use the system and to quickly begin evaluating the
ADXRS450/ADXRS453.

INSTALLATION PROCEDURE

The following steps must be completed, in the order listed, to
successfully set up and run the
evaluation system:
1.
Install required LabView™ engines.
2.
Install the USB drivers for the inertial sensor evaluation
system (ISEB).
3.
Connect the ISEB hardware to the PC.
4.
Install the latest firmware revision into the ISEB hardware
(included on the CD-ROM).
5.
Install the
ADXRS450/ADXRS453
6.
Configure the ISEB hardware.
7.
Launch the
ADXRS450/ADXRS453
and test devices.
This guide is designed to provide all the detail necessary to install
and operate the
ADXRS450/ADXRS453
Rev. 0 | Page 1 of 20
UG-260
ADXRS450/ADXRS453
evaluation system GUI.
evaluation system GUI
evaluation system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-ADXRS450Z-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices EVAL-ADXRS450Z-M

Summary of Contents for Analog Devices EVAL-ADXRS450Z-M

  • Page 1: Features

    The system consists of the inertial sensor evaluation board (ISEB), INSTALLATION PROCEDURE or main board, and satellite boards for several Analog Devices The following steps must be completed, in the order listed, to inertial sensor products. The ISEB connects directly to a PC via...

  • Page 2: Table Of Contents

    UG-260 Evaluation Board User Guide TABLE OF CONTENTS     Features ....................1 Inertial Sensor Evaluation System Graphical User Interface..9     General Description ................. 1 Getting Started................9     Installation Procedure..............1 View and Record Data Panel ............ 10  ...

  • Page 3: Inertial Sensor Evaluation System Setup

    CD-ROM. The steps in this user guide assume you are working directly from the CD-ROM. If you are able to run the Analog Devices ISEB system, you can skip the LabVIEW and driver installation because these are already installed, and proceed directly to the COM Port Verification section.

  • Page 4: Iseb Hardware Setup

    UG-260 Evaluation Board User Guide To start the installation, click Next. The installer completes installation of the software evaluation GUI and all required National Instruments drivers and run-time engines. After the installation is complete, the box shown in Figure 5 is displayed.

  • Page 5: Com Port Verification

    Evaluation Board User Guide UG-260 The ISEB should be detected automatically in the Device Manager as the ADI Inertial Sensor Evaluation System under the Ports (COM & LPT) selection. It is recommended to open the Device Manager to verify hardware detection and to record the communication port associated with the ISEB for use in the GUI.

  • Page 6: Installing The Latest Iseb Firmware

    Figure 14. Selecting the Correct COM Port for the Downloader from the Analog Devices website (http://www.analog.com/iseb). When the COM port is selected, click OK to accept the changes To flash the ISEB microcontroller, follow these steps: and go back to the ARMWSD window (shown in Figure 13).

  • Page 7: Hardware Configuration

    Follow the on-screen instructions to install the GUI. Release SW1. The installer will place the GUI in your Start Menu under Analog Devices – Inertial Sensor Eval. If you install or have installed other inertial sensor evaluation GUIs, they ADuC7026 will also be in this folder, identified by the corresponding part number.
  • Page 8 UG-260 Evaluation Board User Guide Connect the ISEB to the ADXRS450/ADXRS453 satellite using the 18-inch, 20-pin ribbon cable. This cable is keyed to prevent inserting it backward and causing damage to the system. Connect the ADXRS450/ADXRS453 satellite to the opposite end of the ribbon cable.

  • Page 9: Inertial Sensor Evaluation System Graphical User Interface

    Verification section to determine which COM port is assigned no longer function properly. to the Analog Devices Inertial Sensor Evaluation System. Select this COM port from the drop-down list, and click Confirm COM to begin using the GUI.

  • Page 10: View And Record Data Panel

    UG-260 Evaluation Board User Guide VIEW AND RECORD DATA PANEL Figure 19. View and Record Data Panel The View and Record Data panel is the primary panel for register, sequence bits, status bits, and sensor module bits. interacting with the device. The drop-down box, located This information is described in detail in the ADXRS450 beneath the graph, contains the following three options:...

  • Page 11: Temperature Test Panel

    Evaluation Board User Guide UG-260 TEMPERATURE TEST PANEL Figure 20. Temperature Test Panel The Temperature Test panel is designed to let you easily Before recording the data on this panel, you can adjust for null perform long-term testing at a reduced bandwidth and data offset components.

  • Page 12: Noise And Root Allan Variance Panel

    UG-260 Evaluation Board User Guide NOISE AND ROOT ALLAN VARIANCE PANEL Figure 21. Noise and Root Allan Variance Panel The software GUI includes the ability to calculate and plot the rotational rate input into the gyroscope can greatly degrade the root Allan variance (RAV) and the rms noise of the ADXRS450/ validity of the resulting RAV plot.

  • Page 13: Turn-On Bias Stability Panel

    Evaluation Board User Guide UG-260 TURN-ON BIAS STABILITY PANEL Figure 22. Turn-On Bias Stability Panel Another key performance characteristic of gyroscopes is their a file name for the data upon completion of the specified number turn-on-to-turn-on bias stability, which determines the range of of turn-on cycles or upon clicking the Stop Data Record button.

  • Page 14: Turn-On Bias Settling Panel

    UG-260 Evaluation Board User Guide TURN-ON BIAS SETTLING PANEL Figure 23. Turn-On Bias Settling In addition to the bias stability from one power cycle to the the first SPI message is typically received from the device within next, it is important to understand the device behavior at the 20 ms after the ISEB supplies power to the satellite board.

  • Page 15: Sensitivity Check Panel

    Evaluation Board User Guide UG-260 SENSITIVITY CHECK PANEL Figure 24. Sensitivity Check Panel The last panel (see Figure 24) provides a method for checking When prompted, slowly rotate the satellite board through the approximate sensitivity of a given device. The data sheet 180°...

  • Page 16: Alternate External High Voltage Supply

    1 mA of current is sourced, a 12 kΩ resistor can be chosen. This sources 0.625 mA to the ADXRS450/ADXRS453. ANALOG DEVICES You can then test the satellite board in exactly the same way as ADXRS450/ADXRS453 S ATELLITE...

  • Page 17: Header Pinout

    Evaluation Board User Guide UG-260 HEADER PINOUT 3.3V SCL1 SDA1 MOSI MISO SCL1 SDA1 MOSI MISO AGND Figure 27. ISEB 20-Pin Header Pinout Rev. 0 | Page 17 of 20 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 18 UG-260 Evaluation Board User Guide NOTES Rev. 0 | Page 18 of 20 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 19 Evaluation Board User Guide UG-260 NOTES Rev. 0 | Page 19 of 20 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 20 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
