EVALUATION BOARD SETUP PROCEDURES

The EVAL-AD7606CFMCZ connects to the SDP-H1. The SDP-
H1 is the communication link between the PC and the EVAL-
AD7606CFMCZ.
Connecting the EVAL-AD7606CFMCZ and the SDP-H1 to
a PC
After the ACE software is installed, take the following steps to
set up the EVAL-AD7606CFMCZ and the SDP-H1:
1. Ensure that all configuration links are in the appropriate
positions, as detailed in Table 2.
2. Connect the EVAL-AD7606CFMCZ to the 160-way
connector on the SDP-H1. The EVAL-AD7606CFMCZ does
not require an external power supply adapter.
3. To power up the SDP-H1, insert the 12 V, dc barrel jack
(provided in the SDP-H1 kit) into the barrel connector
labeled +12V_VIN on the SDP-H1.
4. Connect the SDP-H1 to the PC via the USB cable included
in the SDP-H1 kit.
Verifying the Board Connection
After connecting the power and the USB cable from the SDP-H1
to the PC, take the following steps to verify the SDP-H1
connection:
1. After connecting the SDP-H1 to the PC, allow the Found
New Hardware Wizard to run. Choose to automatically
search for the drivers for the SDP-H1 if prompted by the
operating system.
2. Navigate to the Device Manager window on the PC
(see Figure 9).
EVAL-AD7606CFMCZ
3. A dialog box may open asking for permission to allow the
program to make changes to the computer. Click Yes.
4. The Computer Management window opens. From the list
labeled System Tools, click Device Manager. If the SDP-H1
driver is installed and the SDP-H1 is properly connected to
the PC, Analog Devices SDP-H1 is shown in the
ADI Development Tools list in the Device Manager
window, as shown in Figure 9.
Disconnecting the EVAL-AD7606CFMCZ
Disconnect power from the SDP-H1, or press the reset tact switch
located alongside the mini USB port on the SDP-H1 before
disconnecting the EVAL-AD7606CFMCZ from the SDP-H1.
Rev. A | Page 8 of 15
Evaluation Board User Guide

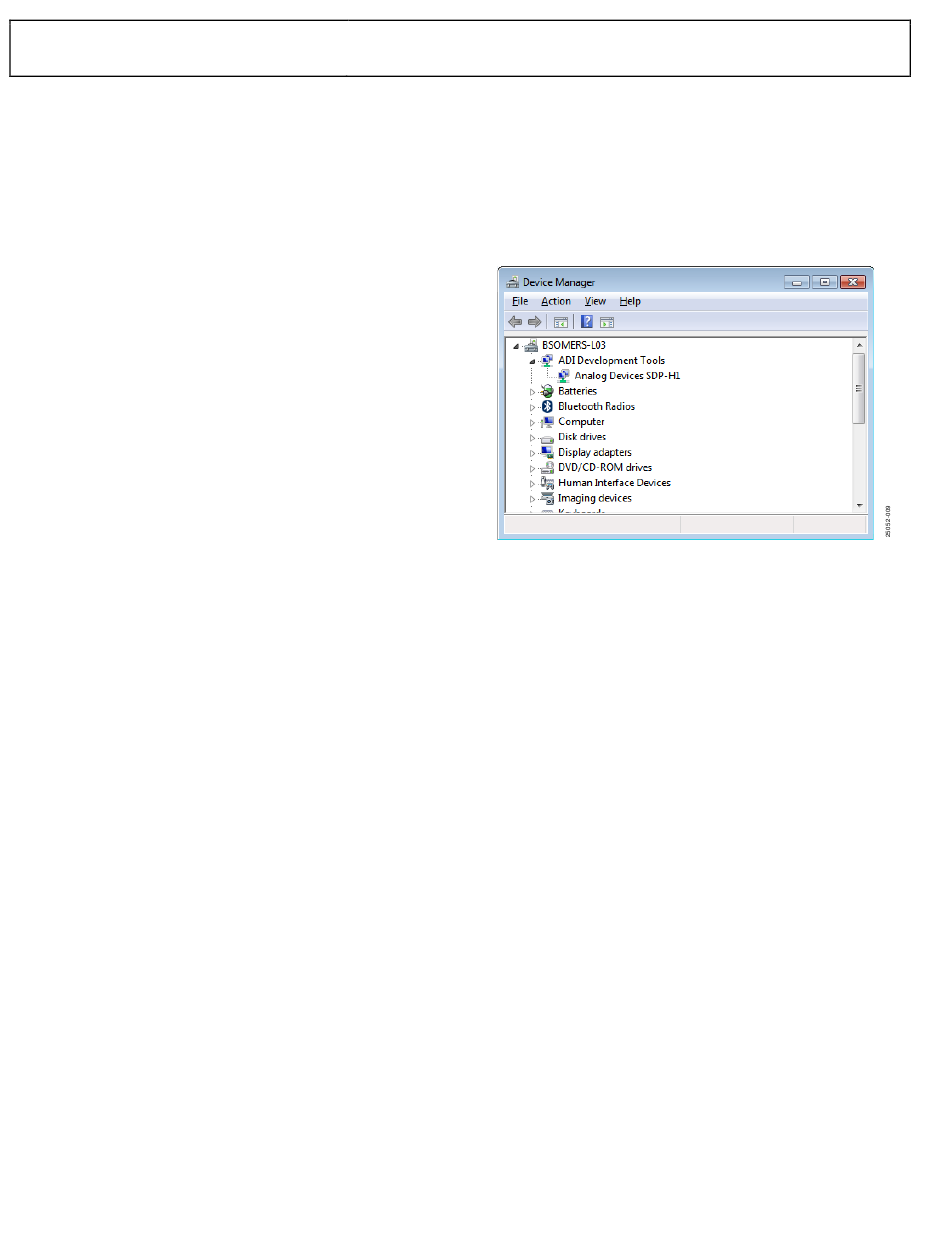

Figure 9. Device Manager Window
