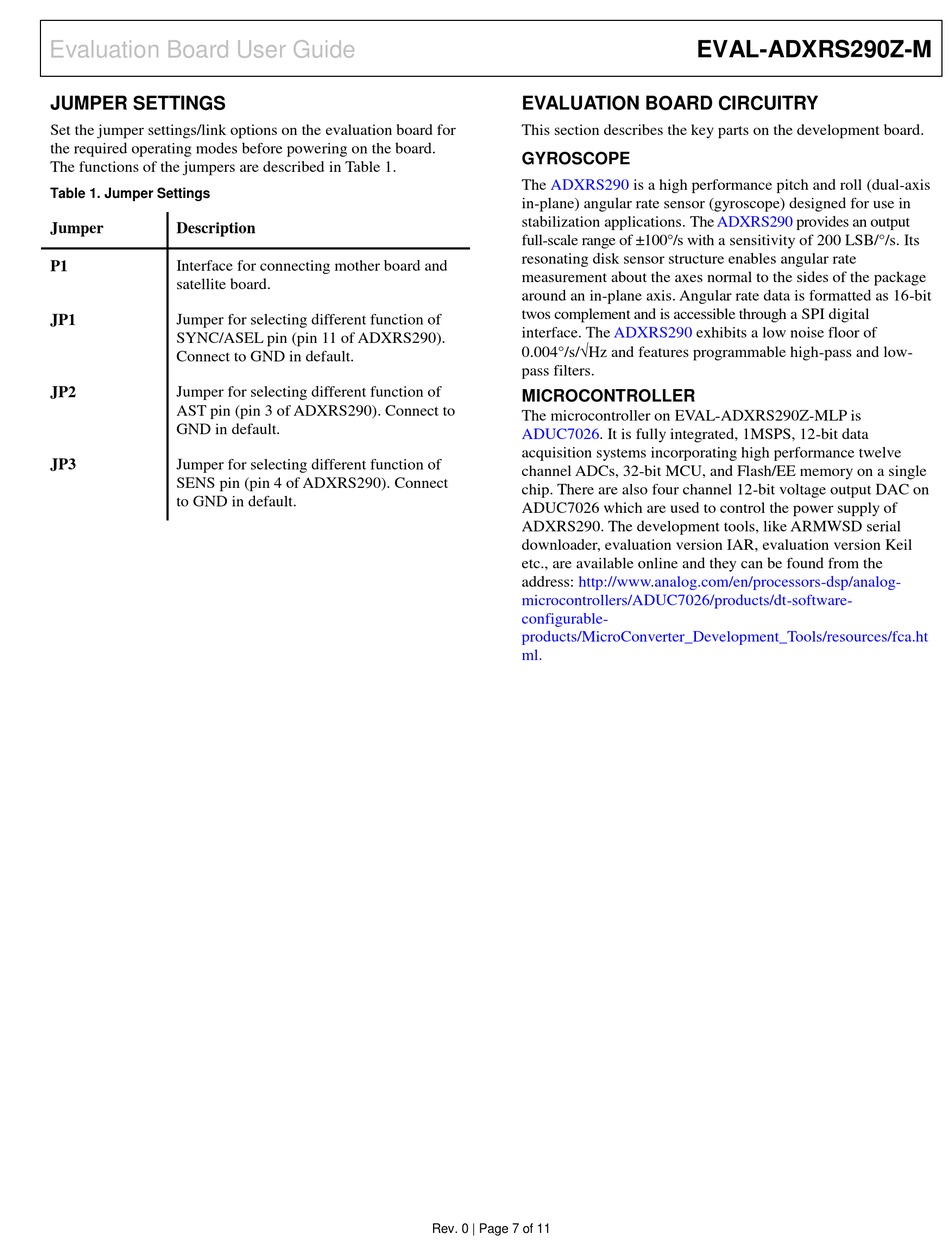

Evaluation Board User Guide

JUMPER SETTINGS

Set the jumper settings/link options on the evaluation board for
the required operating modes before powering on the board.
The functions of the jumpers are described in Table 1.
Table 1. Jumper Settings
Jumper Description
Interface for connecting mother board and
P1
satellite board.
JP1 Jumper for selecting different function of
SYNC/ASEL pin (pin 11 of ADXRS290).
Connect to GND in default.
JP2 Jumper for selecting different function of
AST pin (pin 3 of ADXRS290). Connect to
GND in default.
Jumper for selecting different function of
JP3
SENS pin (pin 4 of ADXRS290). Connect
to GND in default.

EVALUATION BOARD CIRCUITRY

This section describes the key parts on the development board.

GYROSCOPE

The ADXRS290
in-plane) angular rate sensor (gyroscope) designed for use in
stabilization applications. The
full-scale range of ± 100° /s with a sensitivity of 200 LSB/° /s. Its
resonating disk sensor structure enables angular rate
measurement about the axes normal to the sides of the package
around an in-plane axis. Angular rate data is formatted as 16-bit
twos complement and is accessible through a SPI digital
interface. The
0.004° /s/Hz and features programmable high-pass and low-
pass filters.

MICROCONTROLLER

The microcontroller on EVAL-ADXRS290Z-MLP is
ADUC7026. It is fully integrated, 1MSPS, 12-bit data
acquisition systems incorporating high performance twelve
channel ADCs, 32-bit MCU, and Flash/EE memory on a single
chip. There are also four channel 12-bit voltage output DAC on
ADUC7026 which are used to control the power supply of
ADXRS290. The development tools, like ARMWSD serial
downloader, evaluation version IAR, evaluation version Keil
etc., are available online and they can be found from the
address: http://www.analog.com/en/processors-dsp/analog-
microcontrollers/ADUC7026/products/dt-software-
configurable-
products/MicroConverter_Development_Tools/resources/fca.ht
ml.
Rev. 0 | Page 7 of 11
EVAL-ADXRS290Z-M
is a high performance pitch and roll (dual-axis
ADXRS290
ADXRS290 exhibits a low noise floor of
provides an output
