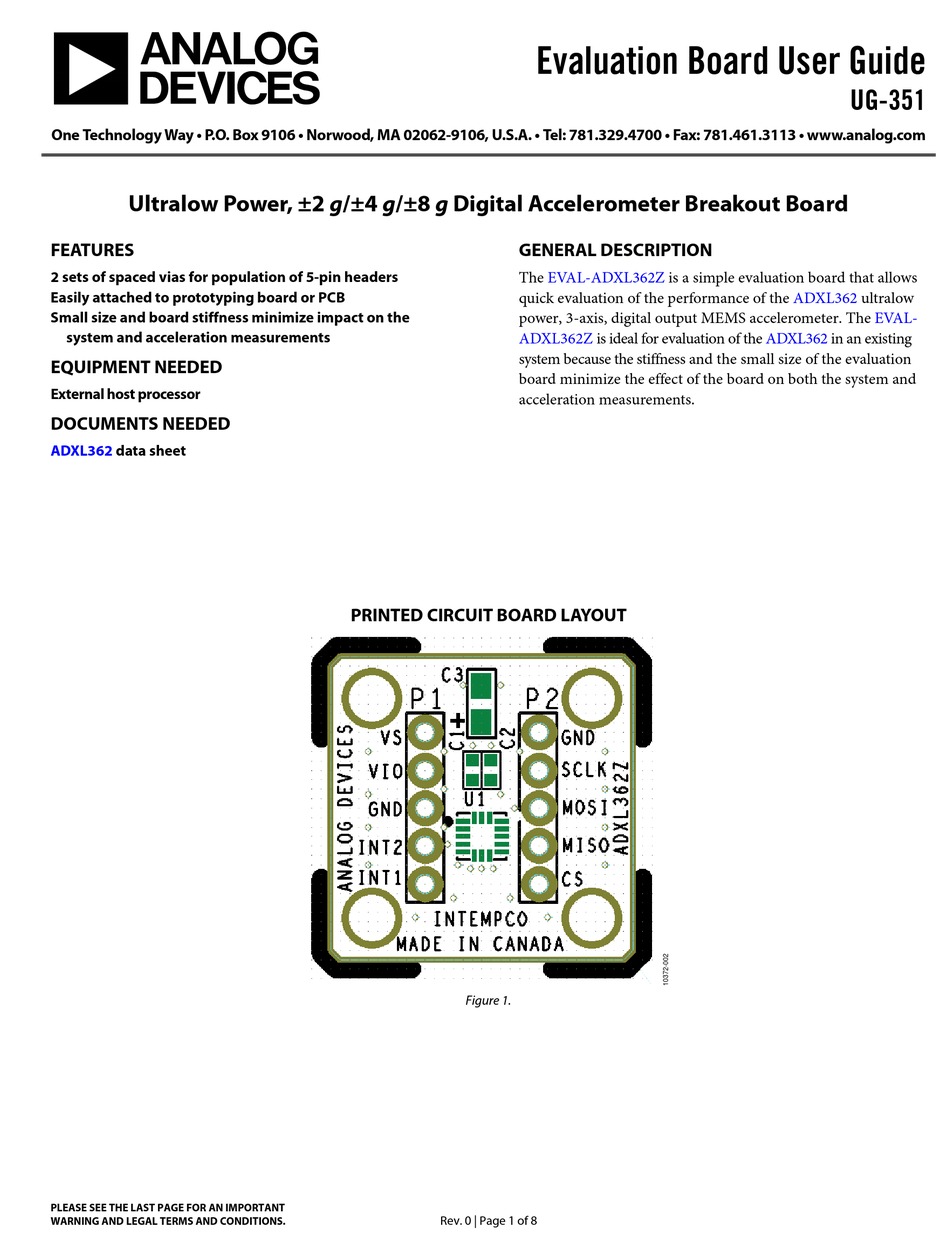

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Ultralow Power, ±2 g/±4 g/±8 g Digital Accelerometer Breakout Board
FEATURES
2 sets of spaced vias for population of 5-pin headers
Easily attached to prototyping board or PCB
Small size and board stiffness minimize impact on the
system and acceleration measurements
EQUIPMENT NEEDED
External host processor
DOCUMENTS NEEDED
ADXL362
data sheet
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
GENERAL DESCRIPTION
The
quick evaluation of the performance of the
power, 3-axis, digital output MEMS accelerometer. The
ADXL362Z
system because the stiffness and the small size of the evaluation
board minimize the effect of the board on both the system and
acceleration measurements.
PRINTED CIRCUIT BOARD LAYOUT
Figure 1.
Rev. 0 | Page 1 of 8
Evaluation Board User Guide
EVAL-ADXL362Z
is a simple evaluation board that allows
is ideal for evaluation of the
UG-351
ADXL362
ultralow
EVAL-
ADXL362
in an existing
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADXL362Z
Summary of Contents for Analog Devices EVAL-ADXL362Z
-
Page 1: Features
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Ultralow Power, ±2 g/±4 g/±8 g Digital Accelerometer Breakout Board FEATURES GENERAL DESCRIPTION EVAL-ADXL362Z is a simple evaluation board that allows 2 sets of spaced vias for population of 5-pin headers Easily attached to prototyping board or PCB... -
Page 2: Table Of Contents
UG-351 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Circuit Description................3 Equipment Needed ................1 Handling Considerations ..............3 Documents Needed ................1 Evaluation Board Schematics and Artwork ........4 General Description ................. 1 Ordering Information ...............5 Printed Circuit Board Layout............1 Bill of Materials ................5 Revision History ................ -
Page 3: Evaluation Board Hardware
Evaluation Board User Guide UG-351 EVALUATION BOARD HARDWARE EVAL-ADXL362Z has two sets of 0.1 inch spaced vias for reducing analog supply noise and C1 (located between VDDIO population of 5-pin headers to provide access to all power and and GND) is for reducing digital clocking noise. -
Page 4: Evaluation Board Schematics And Artwork
EVALUATION BOARD SCHEMATICS AND ARTWORK 10µF 0.1µF ADXL362 VDDIO RESERVED 0.1µF RESERVED VDDIO MISO RESERVED MOSI SCLK SCLK MOSI INT1 MISO INT2 H1 H2 H3 H4 QFN16 VDDIO INT2 INT1 Figure 2. EVAL-ADXL362Z Schematic Rev. 0 | Page 4 of 8... -
Page 5: Ordering Information
BILL OF MATERIALS Table 1. Item Reference Designator Description Manufacturer Part Number Ultralow power MEMS accelerometer Analog Devices, Inc. ADXL362BCCZ-ENG C1, C2 0.1 µF ceramic capacitor, 50 V, 10%, X7R CAL-CHIP GMC10X7R104K50NTLF 10 µF tantalum capacitor, 10 V, 10% CAL-CHIP... - Page 6 UG-351 Evaluation Board User Guide NOTES Rev. 0 | Page 6 of 8...
- Page 7 Evaluation Board User Guide UG-351 NOTES Rev. 0 | Page 7 of 8...
- Page 8 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
