One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Using the
EVAL-ADXRS290Z-M
FEATURES
Flexible inertial sensor evaluation platform
Single main board operates with interchangeable satellite
boards
Separates device under test (DUT) from the larger main
board for accurate environmental testing
Continuous stream to file data recording
Standard USB cable for power and communications
PC-based graphical user interface (GUI)
Fast, easy installation
DOCUMENTS NEEDED
ADXRS290
data sheet
EQUIPMENT NEEDED
Evaluation kit contents
Main (mother) board and satellite board
A USB A to mini-B cable
An 18-inch, 20-pin ribbon cable
PC running Windows®
USB 2.0 port
Required software
ISEB USB Driver
ISEB Run-Time Engine
ADXRS290 Evaluation GUI Installer
Design and integration files
Schematics and layout files
GENERAL DESCRIPTION
The iMEMS®
ADXRS290
inertial sensor evaluation system is an
easy-to-use evaluation tool targeting bench or desktop
characterization of Analog Devices, Inc., inertial sensor products.
The
EVAL-ADXRS290Z-M
system contains the inertial sensor
evaluation board (ISEB) and the
board. In addition, a USB A to mini-B cable is included to connect
the ISEB to a PC, and an 18-inch, 20-pin ribbon cable is included
to connect the ISEB to the satellite board. The USB connection
provides both communications and power to the board. The
ribbon cable allows users to easily manipulate the satellite board
for testing or to be separately placed into an environmental
chamber for temperature or humidity testing.
Separate the boards to mitigate corruption of data due to the
temperature and humidity effects of other components.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Inertial Sensor Evaluation System for the
EVAL-ADXRS290Z-S
satellite
Rev. 0 | Page 1 of 14
EVAL-ADXRS290Z-M User Guide
TYPICAL SETUP FOR THE INERTIAL SENSOR
EVALUATION SYSTEM
The ISEB is a universal main board and is used with various
satellite boards of Analog Devices inertial sensors, including
accelerometers and gyroscopes. The different products are
evaluated by means of separate GUIs that are customized for
performance and characterization measurements relevant to the
inertial sensor being evaluated. Different shunt resistors are
used to detect power consumption because the power consumption
of the gyroscope is relatively high compared to that of the acceler-
ometers. The differences between the
-M devices, such as
ADXL345Z-M
in the circuit used to detect power consumption.
Full details about the parts are available in the
sheet, which should be consulted when using the
ADXRS290Z-M.
UG-783
ADXRS290

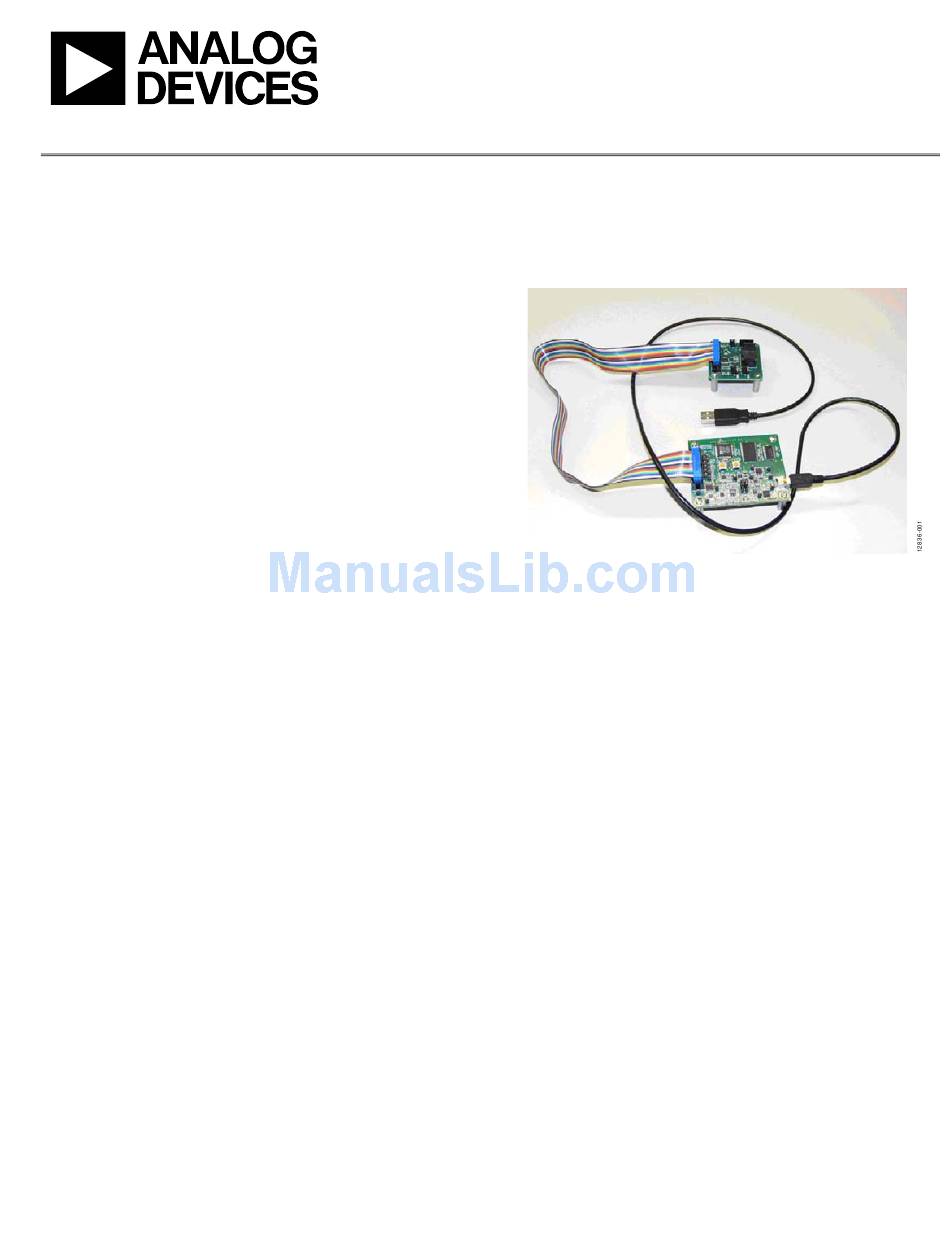

Figure 1.
ADXRS290Z-M
and other
or ADXL362Z-M, are only
ADXRS290
EVAL-
data
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADXRS290Z-M
Summary of Contents for Analog Devices EVAL-ADXRS290Z-M
-
Page 1: Features
The ISEB is a universal main board and is used with various easy-to-use evaluation tool targeting bench or desktop satellite boards of Analog Devices inertial sensors, including accelerometers and gyroscopes. The different products are characterization of Analog Devices, Inc., inertial sensor products. -
Page 2: Table Of Contents
UG-783 EVAL-ADXRS290Z-M User Guide TABLE OF CONTENTS Features ....................1 Jumper Settings ................7 Documents Needed ................1 Evaluation Board Circuitry ............7 Equipment Needed ................1 How to Use the Software for Testing ..........8 Typical Setup for the Inertial Sensor Evaluation System..... 1 Getting Started ................8... -
Page 3: Getting Started
GUI. If you have ever reprogrammed the microcontroller unit (MCU) for other applications, or the firmware or GUI is updated by Analog Devices, you need to download the corresponding firmware for evaluating the ADXRS290. The firmware and GUI installer on the site must always match each other. - Page 4 Sensor Evaluation System (COM4) is listed with an from any EVAL-ADXL3xxZ-M.zip, EVAL-ADXL3xxZ- assigned COM port number in parenthesis (see Figure 6). MLP.zip, or EVAL-ADXRS290Z-M.zip files at ftp://ftp.analog.com/pub/iMEMS_Sensor_Eval/). The ARMWSD dialog box displays information about the downloader, as shown in Figure 7.
- Page 5 EVAL-ADXRS290Z-M User Guide UG-783 Figure 7. ISEB ARMWSD Firmware Downloader Figure 9. Configuration for the Downloader Click Browse… and select the ADI_ISEB_FW_XRS290.hex When the COM port is selected, click OK to accept the changes file. and go back to the ARMWSD box (shown in Figure 7).
- Page 6 ISEB microcontroller, the evaluation GUI on the corresponding website is sufficient. If the firmware used is obtained from the Analog Devices website, use the most recent version of the evaluation GUI, which is also located on the site.
-
Page 7: Evaluation Board Hardware Setup Procedures
Figure 1 shows typical bench characterization about the axes normal to the sides of the package around an setup used to evaluate the EVAL-ADXRS290Z-M. in-plane axis. Angular rate data is formatted as 16-bit twos First, the... -
Page 8: How To Use The Software For Testing
Program Menu > because it causes the ISEB and the software GUI to lose sync Analog Devices - Inertial Sensor Eval and to your desktop. To and the evaluation system to no longer function properly. -
Page 9: Configuration Tab
EVAL-ADXRS290Z-M User Guide UG-783 CONFIGURATION TAB Figure 15. Configuration Tab The Configuration tab allows you to set the operating conditions D7 through D0 indicators to set the value. If an indicator is lit, for the ADXRS290, as well as to read to/write from the contents the value written to that bit is a Logic 1, whereas an unlit indicator of the memory map. -
Page 10: Real Time Data Tab
UG-783 EVAL-ADXRS290Z-M User Guide REAL TIME DATA TAB Figure 16. Real Time Data Tab The Real Time Data tab configures the inertial sensor evaluation For example, if you name the first text file ADXRS290Test.txt in system and the ADXRS290 for real-time angular velocity the pop-up dialog box and save it on your desktop, the other 10 text files, which are named ADXRS290Test_1.txt,... -
Page 11: Noise Tab
EVAL-ADXRS290Z-M User Guide UG-783 NOISE TAB Figure 17. Noise Tab The Noise tab configures the ADXRS290 for real-time angular Ensure that the evaluation board is in a vibration free velocity monitoring and noise calculation. This tab contains an environment when you test the noise performance. Any... -
Page 12: Power Consumption Tab
UG-783 EVAL-ADXRS290Z-M User Guide POWER CONSUMPTION TAB Figure 18. Power Consumption Tab The Power Consumption tab contains two oscilloscope-like consumption. To prevent software conflicts, many of the option interfaces that show the output of the two axes of the gyroscope and... -
Page 13: Temperature Tab
EVAL-ADXRS290Z-M User Guide UG-783 TEMPERATURE TAB Figure 19. Temperature Tab To avoid measurement error, use the following precautions: The Temperature tab, as shown in Figure 19, is designed to facilitate temperature testing of the ADXRS290. This tab Keep the temperature sweep ramp rate low (<2°C/minute) determines the device offset stability with respect to temperature. - Page 14 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
