ADXL362 Real-Time Evaluation System
This page is under construction.
Resources
Kit Contents

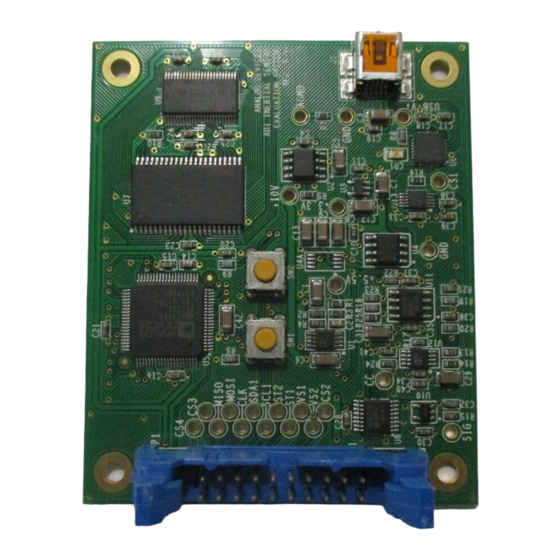

1 x Low-Power Inertial Sensor Evaluation Board (LP-ISEB) (also referred to as Motherboard)
1 x ADXL362 Satellite Board
1 x ADXL362 Micropower MEMS Accelerometer
1 x Ribbon Cable (connects Motherboard to Satellite board)
1 x USB cable (connects Motherboard to computer)
8 x Standoffs + screws (stabilize the Motherboard and Satellite board on a flat surface)
Design and Integration Files
Schematics:
Motherboard Satellite Board
Layouts:
Motherboard Satellite Board
Installation Files
Driver installer:
.zip
LabView environment and GUI installer:
Rev 03 Jan 2013 19:42 | Page 1
www.analog.com
.zip
Advertisement
Related Manuals for Analog Devices EVAL-ADXL362Z-MLP
Summary of Contents for Analog Devices EVAL-ADXL362Z-MLP
- Page 1 One Technology Way · P.O. Box 9106 · Norwood, MA 02062-9106 · Tel: 781.329.4700 · Fax: 781.461.3113 · www.analog.com ADXL362 Real-Time Evaluation System This page is under construction. Resources Kit Contents 1 x Low-Power Inertial Sensor Evaluation Board (LP-ISEB) (also referred to as Motherboard) 1 x ADXL362 Satellite Board 1 x ADXL362 Micropower MEMS Accelerometer 1 x Ribbon Cable (connects Motherboard to Satellite board)
- Page 2 Quick Start Guide For first-time installations If you've never used ANY of Analog Devices' Inertial Sensor Evaluation Kits before*, start here! *This includes any of EVAL-ADXL###Z-M, EVAL-ADXRS###Z-M and EVAL-ADXL###Z-MLP. Begin by installing the drivers. Click on the link above to download the driver installer. Extract the entire contents of the folder and run the file ADI_ISEB_USB_Drivers.exe.
- Page 3 the menu in the lower left corner. Follow these instructions if you do not know which COM port to use. Selecting the appropriate COM port and clicking Connect should enable all GUI functionality. To end the program, click the “Quit Program” button at the bottom right corner of the GUI screen, and then use the X at the top right to close the window.
- Page 4 Start the GUI and try again. The GUI The ADXL362 Evaluation System GUI includes 4 tabs for evaluation of various paramaters: View and save real-time acceleration measurements under Real-time data: user-input settings. Power consumption: View real-time power consumption under user-input settings. Temperature: View the effect of temperature on acceleration output.
- Page 5 real-time acceleration monitoring. The tab contains an oscilloscope-like interface that you can use to view the output of the accelerometer and adjust the relevant parameters, such as output data rate, measurement range, output format, different work mode for power/noise tradeoff and Self Test (see figure above).
- Page 6 Current: shows the current consumption of the ADXL362 in µA. Current VDD I/O [V]: shows the measured supply voltage to the digital portion of the ADXL362 (digital logic and SPI communication). Temp [degC]: shows the ambient temperature, as measured by a sensor on the satellite board. Output Values Shows x-, y-, and z-axis output values in LSBs and in g's.
- Page 7 Modes of Operation Measurement: Configures the accelerometer for measurement mode, in which acceleration is sampled continuously at the specified data rate. Standby: Configures the accelerometer for Standby. The device is non-operational and consumes only 10 nA. Auto Sleep: Configures the accelerometer for autosleep. When inactivity is detected, the accelerometer enters a low-power, low-bandwidth mode;...
- Page 8 Configuration Rev 03 Jan 2013 19:42 | Page 8...
