Note 2: The displays will be automatically activated after they are plugged in and ECR is turned on.
Note 3: The customer display must be connected; without this display the ECR won't work.

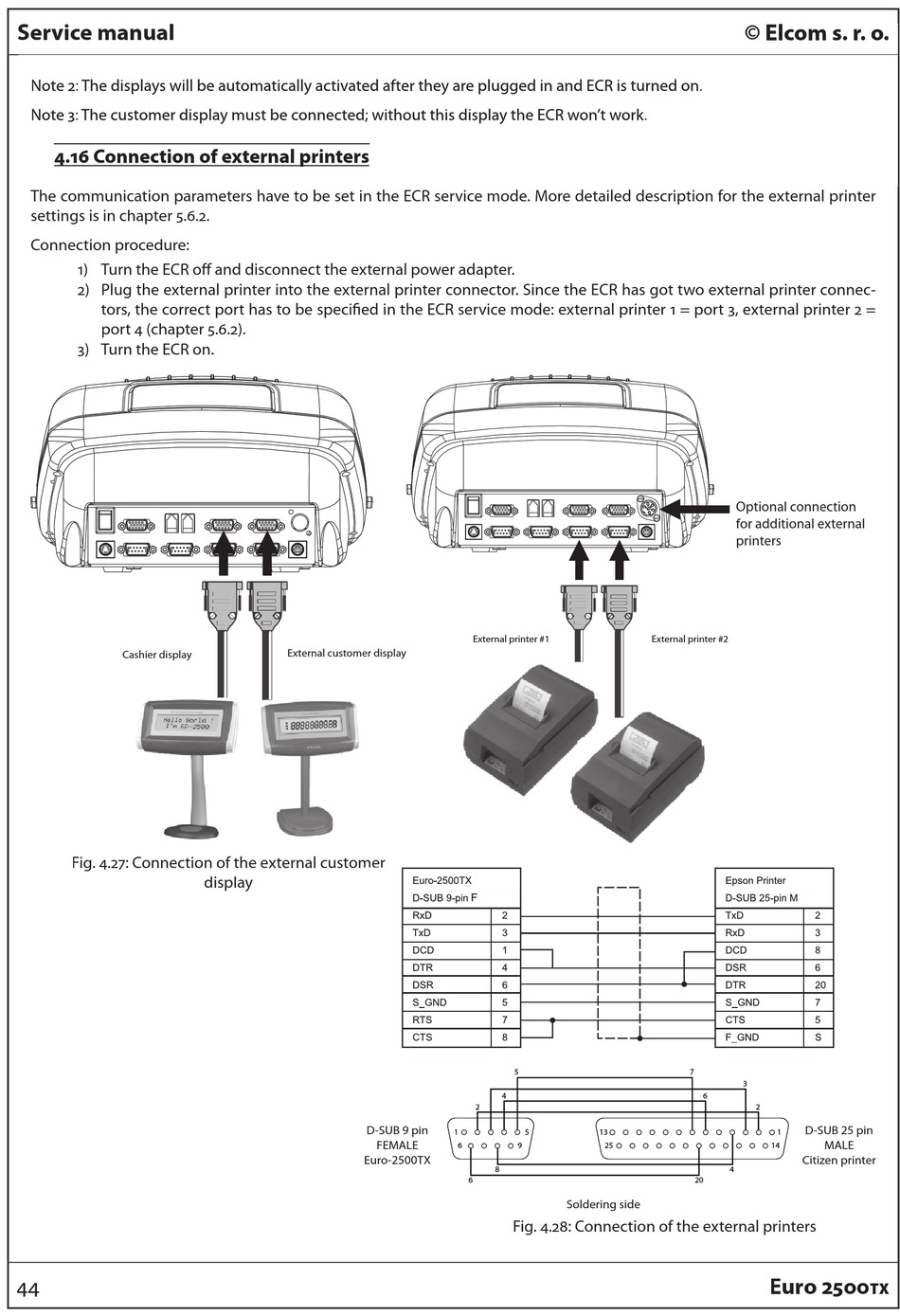

4.16 Connection of external printers

4.16 Connection of external printers
The communication parameters have to be set in the ECR service mode. More detailed description for the external printer
settings is in chapter 5.6.2.
Connection procedure:
1) Turn the ECR off and disconnect the external power adapter.
2) Plug the external printer into the external printer connector. Since the ECR has got two external printer connec-
tors, the correct port has to be specified in the ECR service mode: external printer 1 = port 3, external printer 2 =
port 4 (chapter 5.6.2).
3) Turn the ECR on.
���������������
Fig. 4.27: Connection of the external customer
44
�������������������������
display
�����������
�����������
�������������������
�
�
�
� �
������
� �
�
�
Fig. 4.28: Connection of the external printers
�������������������
�����������������������
��������
�������������������
�
�
��
��
�
��
��������������
