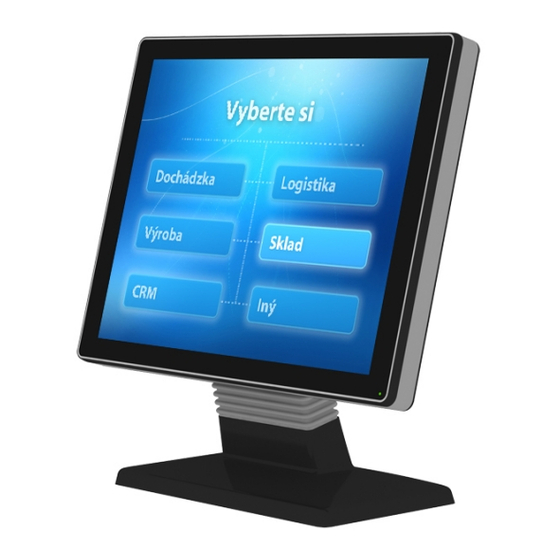

ELCOM Uniq 150 Service Manual
  1. Manuals
  2. Brands
  3. ELCOM Manuals
  4. Touch terminals
  5. Uniq 150
  6. Service manual

ELCOM Uniq 150 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

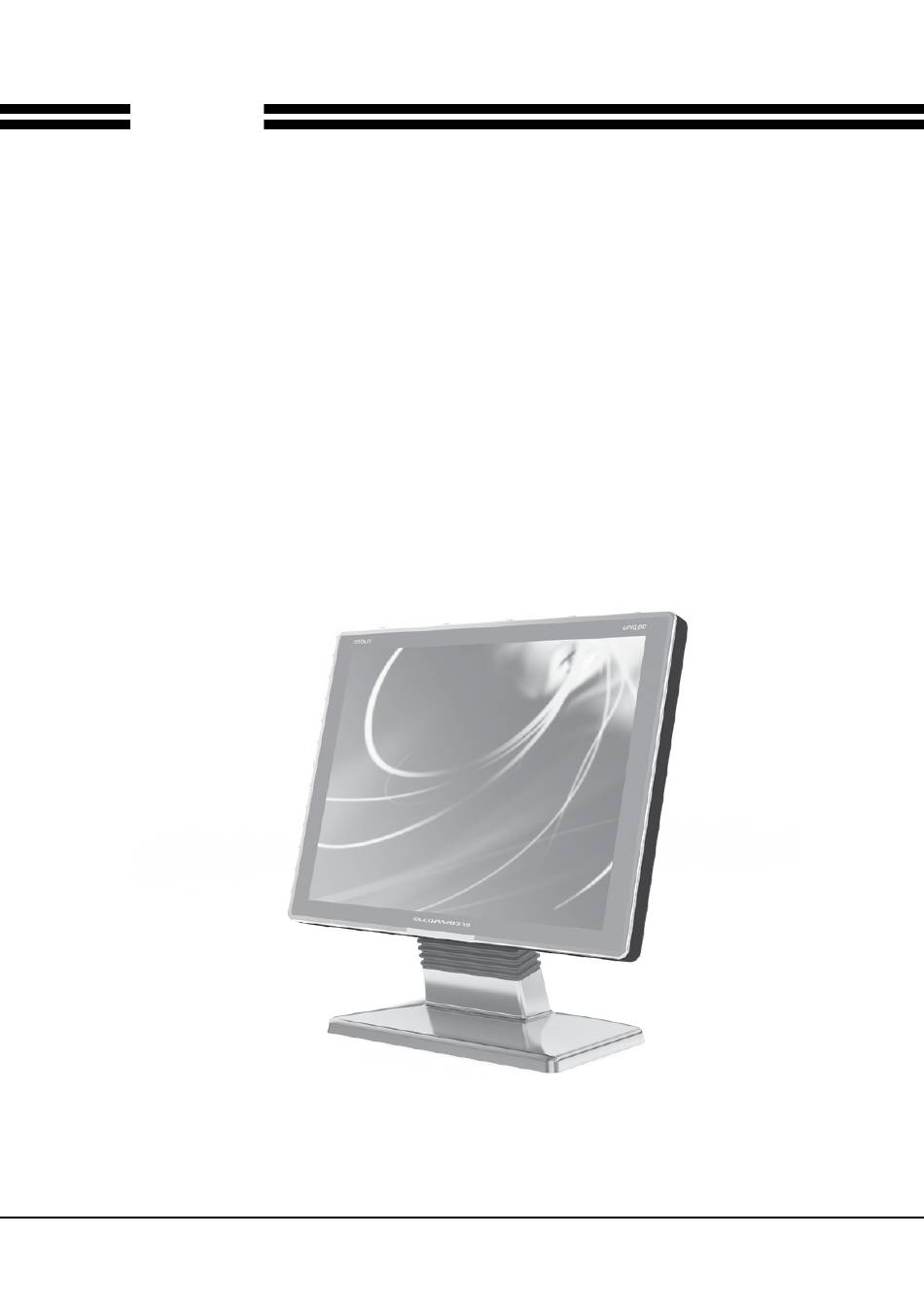

Uniq 150
Uniq 150
Service manual
version 1.4
© Elcom, spoločnosť s ručením obmedzeným, Prešov

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Uniq 150 and is the answer not in the manual?

Questions and answers

Related Manuals for ELCOM Uniq 150

Summary of Contents for ELCOM Uniq 150

  • Page 1 Uniq 150 Uniq 150 Service manual version 1.4 © Elcom, spoločnosť s ručením obmedzeným, Prešov...
  • Page 2 This guide has not undergone language proofreading. This guide, as well as any part of it, may not be copied, repro- duced or otherwise circulated without the permission of the publisher. All rights of the company Elcom are reserved.

  • Page 3: Table Of Contents

    2.19. Installation of VESA holder ........................40 2.19.1. Installation of standard VESA holder....................40 2.19.2. Installation of waterproof VESA holder ....................41 2.20. Installation of waterproof leg ........................42 2.21. Installation of wall holder .......................... 43 Elcom, spoločnosť s ručením obmedzeným, Prešov...
  • Page 4 Uniq 150 Service manual 2.22. Installation of TDC-5000 to Uniq 150 ......................45 2.22.1. VGA cable to interconnection of Uniq 150 with TDC-5000 ..............46 2.23. Installation of ED-5000 to Uniq 150 ......................46 2.23.1. Adjustment of ED-5000 leg ....................... 46 2.23.2.

  • Page 5: General Specification

    Service manual Uniq 150 1. General specification Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 6: Basic Technical Parameters

    0 – 40°C temperature 0 – 40°C Operating conditions humidity 80% at 35°C and lower humidity 80% at 35°C and lower humidity 80% at 35°C and lower humidity 100% (optional) humidity 100% (optional) humidity 100% (optional) Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 7: Structural Part

    Service manual Uniq 150 2. Structural part Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 8: Opening Uniq Pc

    – adhesive foil 1A87015 clear ø11 mm × 2 - M030292 to overlap the buttons, protecting them against tape glue. Adhesive foil is needed only to opening PC execution of Uniq 150. front cover – Phillips screwdriver side buttons –...

  • Page 9: Sticking Of Front Foil

    Perform sticking in gloves to prevent the transfer of fingerprints. Note: It is recommended to entrust the replace foil for aesthetic reasons to Elcom professional who are pro- perly equipped for such an operation.

  • Page 10: D525

    Heat Uniq Display pad material stick on particular components of the mainboard! Cooling is very important part of Uniq 150 and omission occurs malfunction, respectively destruction of Uniq 150! Figure 2.2.2.

  • Page 11: Pcb Invertor And Pcb Tp Controler Replace

    Note: We recommend set cables according to original layout! It is necessary to memorize the layout before dismounting of HDD Strips are fixed to HDD with next four screws through insulation pads for better shock absorbtion. Figure 2.4. – HDD replace Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...
  • Page 12 Uniq 150 Service manual Service manual Uniq 150 6-pins connector 5-pins connector Figure 2.5.2. – Interconnection Figure 2.5.3. – Uniq Display interconnection for D525 and eTurbotouch Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 13: Cable Holder Removal

    Release four Allen screws to remove hinge. Note: Note, that Tube Holder execution consists of cables, which are connected tightly inside of Uniq 150 and they going through inside of Tube Holder stand! We recommend dismount Uniq 150 and disconnect/...

  • Page 14: Connectors Module Removal

    Screw M3 × 4 mm DIN7985A Figure 2.7.2. – Tx execution Hinge – front part Screw M4 × 10 mm DIN912 2.8. Connectors module removal N270: Disconnect connector XC1 from PCB Pico Power. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 15: Connectors Pcb Removal

    Connectors holder 2.9. Hinge replace It is necessary to release all Uniq 150 hinge in some cases. It is possible to put out all hinge after open- ing Uniq 150, leg and connectors removal, just release four Allen screws. Pull out hinge cuff.

  • Page 16: Ms Reader Installation

    It is possible to set hinge tilt after its removing and setting marked screws (stoppers) and actually change Uniq 150 execution. It is necessary to adjust lock hinge and change direct cuff to angled cuff when change execution from standard to N3 or T1.
  • Page 17 Adjusted reader cable connect to mainboard, connector USB01 (N270) or USB2 (D525). Fix reader holder on Uniq 150 with screws M2,5 × 10 mm DIN965 after covers are closed and side profile MS reader is sticked.

  • Page 18: Rf Reader Installation

    6. Put upper box cover on bottom cover. 7. Connect USB cable to free USB connector on mainboard. 8. Fix reader holder to the Uniq 150 after closing Uniq 150 covers and installation side profile. 2.12. Barcode reader installation 9. Bond reader to the holder with doublesided sticker tape. Reader cable must be tucked completly inside! Figure 2.11.

  • Page 19: Bluetooth And Wifi Installation

    M310122 Intel 6235 wifi s BT mPCIe M310111 Mini PCIe full size card M310024 Screw of MiniPCIe card adapter M310025 Tubing 9 mm 2 × 55 mm M010017 Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 20: Wifi Installation Into Milled Covers

    2.13.3. WiFi installation into milled covers Some of the Uniq 150 covers has already milled cavities for setting WiFi antennas. In this case is more suitable set VGA port is connected to mainboard to connector VGA1 (Uniq PC) or to connector CN1 (Uniq Display).

  • Page 21: Installation Of Vga Connctor Holder Into Leg

    M190218 Tubing 2,4 × 10 mm M010004 Connector D-SUB 9M on cable 1/1 port M190011 Cable flat RM1mm 40pin colored 0,45 m/1 port M200155 * Max. 4 ports Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 22: Installation Of Holder Of Extended Connectors

    2.16. Installation and interconnection of audio connector Cable holder is in the Uniq 150 fitted as standard. If it was lack of cable holder width, is given a wider holder assembly process.

  • Page 23: Installation And Interconnection Of Ps2 Connector

    7 – 7. With thick tubing cover all wires together. 8. Plug the cable to connector KB_MS1 (KB/MS1) on mainboard. 9. Catch the PS2 cable to cable holder. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 24: Installation Of Vesa Holder

    1. To installation of standard VESA holder on Uniq 150 with leg or tube is necessary to change streghtened jumb of 1. As by standard VESA holder installation it is necessary to change strenghtened jumb of rear cover and therefore is rear cover.

  • Page 25: Installation Of Waterproof Leg

    Preparing before installation on a wall: Note: If the standard Uniq 150 with leg or tube is reworked, surely will be necessary to adjust cables. In order 1. Drill hole to the leg of diameter 4 mm to manipulation with locking screw M4 × 25 mm.

  • Page 26: Installation Of Tdc-5000 To Uniq 150

    4. Fix Uniq 150 on the holder with screws M3 × 12 mm. the left upper side. 2. Uniq 150 hang on screws (latches) of wall holder. It is important press well the Uniq 150 against holder to propper latches set because it is needed to press the rubber squares.

  • Page 27: Vga Cable To Interconnection Of Uniq 150 With Tdc-5000

    4. Solder 2-pin connector on the remains of 2-wire cable from previous step and oposit end of the cable solder to PCB Installation means conjunction Uniq 150 and ED-5000 to a one device. ED-5000 and Uniq 150 as one Pico Power on XC1.It is necessary to observe polarity! Soldered places cover with tubing.

  • Page 28: Installation Of Ed-5000 On Rear Uniq Pc 150 Cover

    1. Adjust rear Uniq PC 150 cover according to figure and dismount ED-5000 display. 2. Cable move through hole in the Uniq 150 cover and through leg with rear display cover. 3. Solder the cable with 5-pin connector and the DB 9F cable. Cover soldered places with tubing. Connect 5-pin connector to XC2 connector of display PCB.

  • Page 29: Display And Touch Panel Replacement

    Hor_L_Top_CapNor_Res 2.25. Display and touch panel replacement The disassembly of front cover is the most demanding operation on service of Uniq 150. It is necessary Ver_L_Lef_CapNor_Res to work in dust-free and clean environment because it is not possible to clean some parts after installation.

  • Page 30: Replacement Of Display With Capacitive Touch Panel (Vandalproof)

    Put silicone in the gap and level it with spatula. Use assigned solution to achive of glossy silicone sur- face. Using the solution also facilitate work with silicone. Time of silicone solidification is about 24 hours. Note: We recommend to entrust the touch panel installation for aesthetic reasons to Elcom professional who Touch panel 15“ resistive are properly equipped for such an operation.

  • Page 31: Note

    AUO display version, but they can by used for Turbo touch too. In case of AUO verzion, there is neccesary to take out original display. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 32: Replacement And Interconnection Of Led Diode

    Note: Diode must be installed, so that no water can seep through diode hole into the device! Pattex must cover all diode hole. Otherwise the IP54 protection class cannot be guaranteed. IrDA diode Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 33: Pcbs

    THP1, THP2 M200133 * Cable 2-pin. 500 mm 1H AWG18 THP1, THP2 M240234 PCB UniqPC Connectors v1.0 — * Black wire soldered on THP1 and red on THP2. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 34: Pcb Pico Power

    Cond. 1nF 50V 0603 MLCC X7R M120180 Cond. 100uF 6,3V 1210 X5R C6, C7, C13 M120177 Cond. 1uF 16V 10% 0603 X7R C8, C17 M120102 Cond. 1n5 0603 SMD X7R Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 35: Tests

    4. After installation you will be prompted to restart. Wait while „Elcom Rescue“ package is started. 5. The screen will display a dialog to select a communication language of „Elcom Rescue“ package. Choose English. 6. The screen will display main menu in choosen language: Note: Option 1 –...

  • Page 36: Process Of Testing Of Various Product Part

    Draw following pattern on the touch panel. Note if drawn line appears under pen nib during drawing. Shutdown PC in „Elcom rescue“ main menu. This option turn off the PC panel. Confirm turning off with Watch display upright, not at an angle! ENTER.
  • Page 37 Place tested UniqPC nearby WiFi access point, but not too close. Minimum distance 1 m. iii. Tap on button „Search Wlan“. List of accessible wireless nets appears after while together with signal quality indication. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 38: Test Of Single Touch Panel

    Test of magnethic card reader (RFID/Card reader) Tap on „RFID/Card reader“ button in Unitest application. ii. Scan magnethic card in the reader. The text string from magnethic card must appear in the window. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 39: Calibration Of Single Touch Panel

    2. Put finger or pointer nib the most accurate to the center of blinking spot and hold while blinking spot appears on the UniqPC desktop. the other place. 1. Run calibration utility MosArt RMTP On-line Utility v2.5. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...

  • Page 40: Calibration Of Multi Touch Panel

    In this case turn off calibration application and correct the file „RMTP_Calibration.ini“, which is situated in the same needed to repair. folder as EXE application file by values in controller. Sample of correction by table abowe: Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...
  • Page 41 7. The linearity test starts immediately after 49-points calibration. Execute the test according to previously described process. Calibration and/or testing repeat untill linearity deflection is less then 1% in both directions. Elcom, spoločnosť s ručením obmedzeným, Prešov Elcom, spoločnosť s ručením obmedzeným, Prešov...
