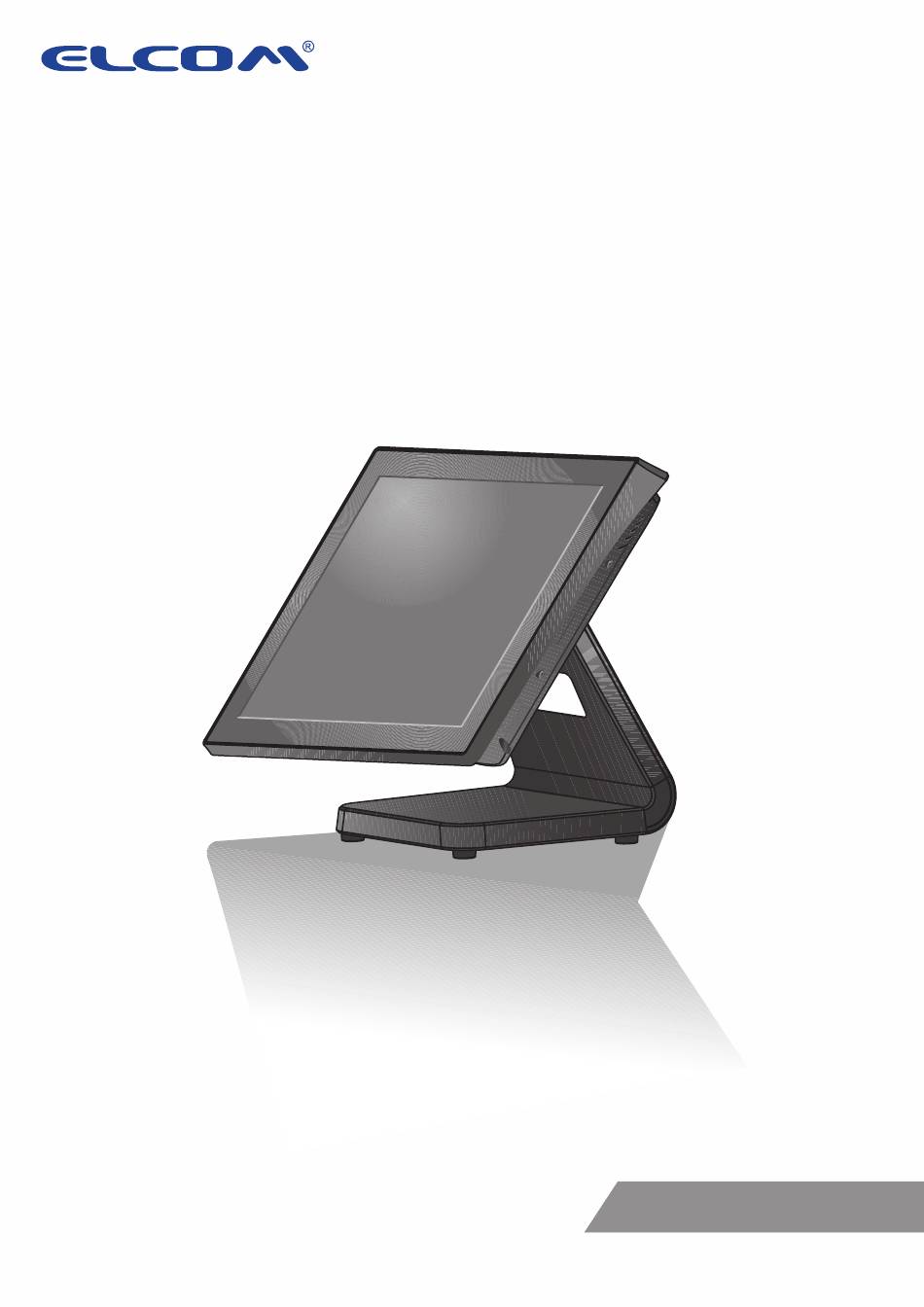

  • Page 1 Wonder Series W-615 User Manual Version 1.0...
  • Page 2 About this Manual Thank you for purchasing Wonder Series Touch Terminal. This terminal offers highly enhanced features, with easy connection to various optional devices for optimal performance. This user manual describes how to setup and connect your terminal. Copyright © Copyright 2017 All rights reserved.
  • Page 3 • If there is any of the following situation arise, notify a qualified service technician immediately: ◊ The power cord or plug is damaged. ◊ Liquid has been spilt on to the equipment. ◊ The equipment has been dropped and damaged. ◊...
  • Page 4 Federal Communications (FCC Statement) This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesirable operation.
  • Page 5 CB/LVD Statement • A Class III equipment with an enclosure made of HB material and using a non-special connector for the a.c./d.c. input has to have a marking stating the following: “Use only power supplies listed in the user instructions” or “For applicable power supplies see user instructions”.

  • Page 6: Table Of Contents

    Contents Chapter 1: Introduction ............8 Package Contents ..................8 Overview of Wonder Series ..............9 Front View ....................9 Rear View ....................9 Physical Dimensions ................. 11 Specifications ..................15 Touch Terminal Specifications ..............15 Peripherals Specifications .................16 Chapter 2: Preparing For the Installation ......20 System Default Settings ................
  • Page 7 Chapter 4: Frequently Asked Questions (FAQ) ....32 Question 1: ..................... 32 How do I clear CMOS? ................32...

  • Page 8: Chapter 1: Introduction

    INTRODUCTION Chapter 1 Introduction Congratulations on your purchase of this Touch Terminal. Your easy-to-use POS terminal is designed to help you enhance your business flexibility by offering superior customer experience. Chapter 1: Introduction Package Contents Before setting up your Touch Terminal, check that the package contains the following items. If any of the items is missing or damaged, contact your vendor immediately.

  • Page 9: Overview Of Wonder Series

    INTRODUCTION INTRODUCTION Overview of Wonder Series The figures in this section illustrate the components (including input and output ports) located at the front and rear of your Touch Terminal. Front View Standard Type Rear View Standard Type...
  • Page 10 INTRODUCTION I/O Ports Item Description DC OUT jack 12V DC power output DC IN jack 24V DC power input COM ports COM1/2/3/4 connectors DK port Cash Drawer output E-SATAp port E-SATA + USB connector USB2.0 ports USB2.0 connectors USB3.0 ports USB3.0 connectors LAN port Gigabit LAN connector...

  • Page 11: Physical Dimensions

    INTRODUCTION INTRODUCTION Physical Dimensions Standard Display...
  • Page 12 INTRODUCTION VFD Customer Display...
  • Page 13 INTRODUCTION INTRODUCTION 10” Secondary LCD Display...
  • Page 14 INTRODUCTION 15” Secondary LCD Display...

  • Page 15: Specifications

    INTRODUCTION INTRODUCTION Specifications Touch Terminal Specifications Wonder 615 Model number LCD & Touch Panel LCD Panel 15” LED-backlit display Resolution 1024 x 768 (default) Brightness 250 cd/m Touch Screen Flat Projected Capacitive Touch (USB) System Configuration Intel Celeron® J1900 2.0GHz/2.4GHz (burst) (Quad-core) ®...

  • Page 16: Peripherals Specifications

    INTRODUCTION Wonder 615 Model number Safety & Environment Product Certification CE / FCC / CB / LVD certificated Operation Temperature 0°C to 40°C Storage Temperature -25°C to 70°C Windows 7/ POSReady 7 / Windows 10/ Linux Kernel 3.0 or above O/S Compatibility Peripherals Specifications 2nd LCD Display...
  • Page 17 INTRODUCTION INTRODUCTION 15" LCD Display Model no. KEKLC-3316A LCD Panel 15" Touch Resolution 1024x768 Aspect Ratio Viewing Angle 80° (H) / 80° (V) Response Time 8ms (typical) Contrast Ratio 600:1 Brightness 250 cd/m2 Interface Power Supply 12V DC / 1.5A Vacuum Fluorescent Display (VFD) Model no.
  • Page 18 INTRODUCTION Single Identification Reader MSR Reader Model no. IE-10L ISO Track 1/2/3 single/dual/ triple tracks of magnetic card, support ANSI/ ISO Standards7810, 7811 1/5, 7812 & 7813. USB HID Keyboard mode interface Fingerprint iButton Identification RFID Identification Identification Reader Reader Reader Model no.
  • Page 19 INTRODUCTION INTRODUCTION 2-in-1 Identification Reader MSR + Fingerprint MSR + iButton MSR + Fingerprint Identification Reader Identification Reader Identification Reader Model no. IE-20 ISO Track 1/2/3 single/dual/ triple tracks of magnetic card, support ANSI/ ISO Standards7810, 7811 1/5, 7812 & 7813. USB HID Keyboard mode interface Biometric Digital Personal U.

  • Page 20: Chapter 2: Preparing For The Installation

    • Wonder Series do not support PCI slot. • Do not insert or remove any device or component from the Wonder Series while the power is turned on. • If using Wonder Series in a dusty environment, clean the Touch Terminal regularly.

  • Page 21: System Default Settings

    PREPARING FOR THE INSTALLATION PREPARING FOR THE INSTALLATION System Default Settings The following is the information on default settings for Touch Terminal serial ports. W-615 COM1 COM2 COM3 COM4 COM5 COM6 IRQ4 IRQ3 IRQ5 IRQ10 IRQ5 IRQ10...

  • Page 22: Main Board Jumper Setting And Connector Definition

    PREPARING FOR THE INSTALLATION Main Board Jumper Setting and Connector Definition W-615 Connector/Jumper Description LINE OUT Audio line output connector VGA output LAN1 LAN connector USB1 USB2.0 *2 connector USB2 USB3.0 *1 connector USB2.0 *1 connector ESATA1 E-SATA + USB connector CASHDRAW1 Cash Drawer output COM1...
  • Page 23 PREPARING FOR THE INSTALLATION PREPARING FOR THE INSTALLATION COM6 connector for RS-232 POS input device LVDS1 2x15 LVDS connector SPK_R1 Speaker connector SPK_L1 Speaker connector CONVERTER1 LED backlight inverter connector SATA1 SATA Connector SO-DIMM1 DDR3/DDR3L SO-DIMM Power Button Connector LCD Panel Power Selection Pin 1-2 Short/Closed 3.3V 1 2 3...

  • Page 24: Voltage Output Definition

    PREPARING FOR THE INSTALLATION Voltage Output Definition W-615 Connector with Voltage Output Location Power Support DC5V/DC12V COM 1 for extension interface (9 PIN of DB-9) Main Board Select by BIOS DC5V/DC12V COM 2 for extension interface (9 PIN of DB-9) Main Board Select by jumper DC5V/DC12V...

  • Page 25: Setting The Lcd Brightness

    PREPARING FOR THE INSTALLATION PREPARING FOR THE INSTALLATION Setting the LCD Brightness W-615 1.Press <F2> when system boot. Select <Advanced> tab, then select <Video configuration>. 2.Select <Brightness Control Level> to adjust LCD brightess level.

  • Page 26: Setting The Serial Port (Com 1) Voltage

    PREPARING FOR THE INSTALLATION Setting the Serial Port (COM 1) Voltage 1. Press <F2> when system boot. Select <Advanced> tab, then select <S10 FINTEK F81866A>. 2. Select <Voltage Selectore, then click <OK>...

  • Page 27: Chapter 3: Hardware Installation

    HARDWARE INSTALLATION HARDWARE INSTALLATION Chapter 3 Hardware Installation Installing the Power Cord, Power Adapter, and Network Cable 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down. Remove the cable compartment cover. 2. Connect the network cable to the LAN port. Then connect the power adapter to the DC IN jack.

  • Page 28: Installing The Customer Display (Optional)

    HARDWARE INSTALLATION Installing the Customer Display (Optional) ARNINNG: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. To configure the COM port voltage setting to +5V, refer to "Main Board Jumper Setting and Connector Definition" on page 23 1.

  • Page 29: Installing The Secondary Lcd Display (Optional)

    HARDWARE INSTALLATION HARDWARE INSTALLATION Installing the Secondary LCD Display (Optional) ARNINNG: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down. Remove the cable compartment cover.

  • Page 30: Installing The Identification Reader (Optional)

    HARDWARE INSTALLATION Installing the Identification Reader (Optional) ARNINNG: Be sure to turn off the power of the Touch Terminal before making any connection or disconnection. 1. Remove the identification reader compartment cover. 2. Firmly connect the identification reader connector into the slot inside the compartment. 3.

  • Page 31: Installing The Vesa Mount (Optional)

    HARDWARE INSTALLATION Installing the VESA Mount (Optional) NOTE: • Use only wall mount kits approved by the manufacturer. Wall mount kits are sold separately. • The Touch Terminal device is compatible with a VESA mounting hole pattern of 75x75mm. 1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down. Remove the cable compartment cover.
  • Page 32 HARDWARE INSTALLATION Chapter 4 Frequently Asked Questions (FAQ) Question 1: How do I clear CMOS? W-615 Answer: To clear CMOS, do the following: 1. Turn off power and pull out the power cord. 2. Insert the jumper cap to clear CMOS PIN and remove the jumper cap from clear CMOS PIN.
