Pin # Description
79 PAP2
80 TC
81 HU
82 POSUC
83 POSZU
84 SW
85 BUZZER
86 GND
87 KB-CLK
88 RSI
89 IRQu
90 IRQtl
91 CS0
92 GND
93 A1P
94 B1P
95 PRINTMOD1
96 PRINTMOD2
97 CS6
98 CS5
99 CS4
100 A20
Tab. 2.1: Pin description for E-2500N (cntd.)

2.2.2 Memory circuits

2.2.2 Memory circuits
ECR memory used by the microcontroller is divided into two basic parts:
• programme memory
• data memory
The programme storage is provided by the EPROM memory of the 512 kB capacity, which is activated using the CS0 signal.
The data memory uses the static RAM (SRAM) of the 512 kB capacity, which is activated using the CS41 signal. The ECR acces-
sories also contain the SRAM extension module that extends the ECR memory by up to 3 × 512 kB RAM.
The Euro-2500TX ECR uses the memory circuits with ultra low input that lower the power supply demands and significantly
prolong the memory power backup via the accumulator. Exchange of these memory circuits with others with the same ca-
pacity could lead to worse memory operation, greater bus interference, and shortened memory power backup. It is therefore
recommended to use the original memory circuits only.
16
Type Signal description
I Scanning paper ribbon presence in printer
I Scanning printer head temperature
I Scanning printer head machinery position
I Receipt shifting request
I Journal shifting request
I Scanning auto cutter final position
O Buzzer control
I GND
I Clock impulse input from external PC keyboard
I Interruption from serial channel for PC
I Interruption from USB/UART circuit
I Interruption from ribbon shifting buttons
O Program memory activation
I GND
O Control of 1.direct phase of 1. printer stepping motor
O Control of 2.direct phase of 1. printer stepping motor
O 1-bit of printing mode control
O 2-bit of printing mode control
O USB/UART, RTC, LATCH activation
O DUART activation
O RAM memory activation
O Address conductor

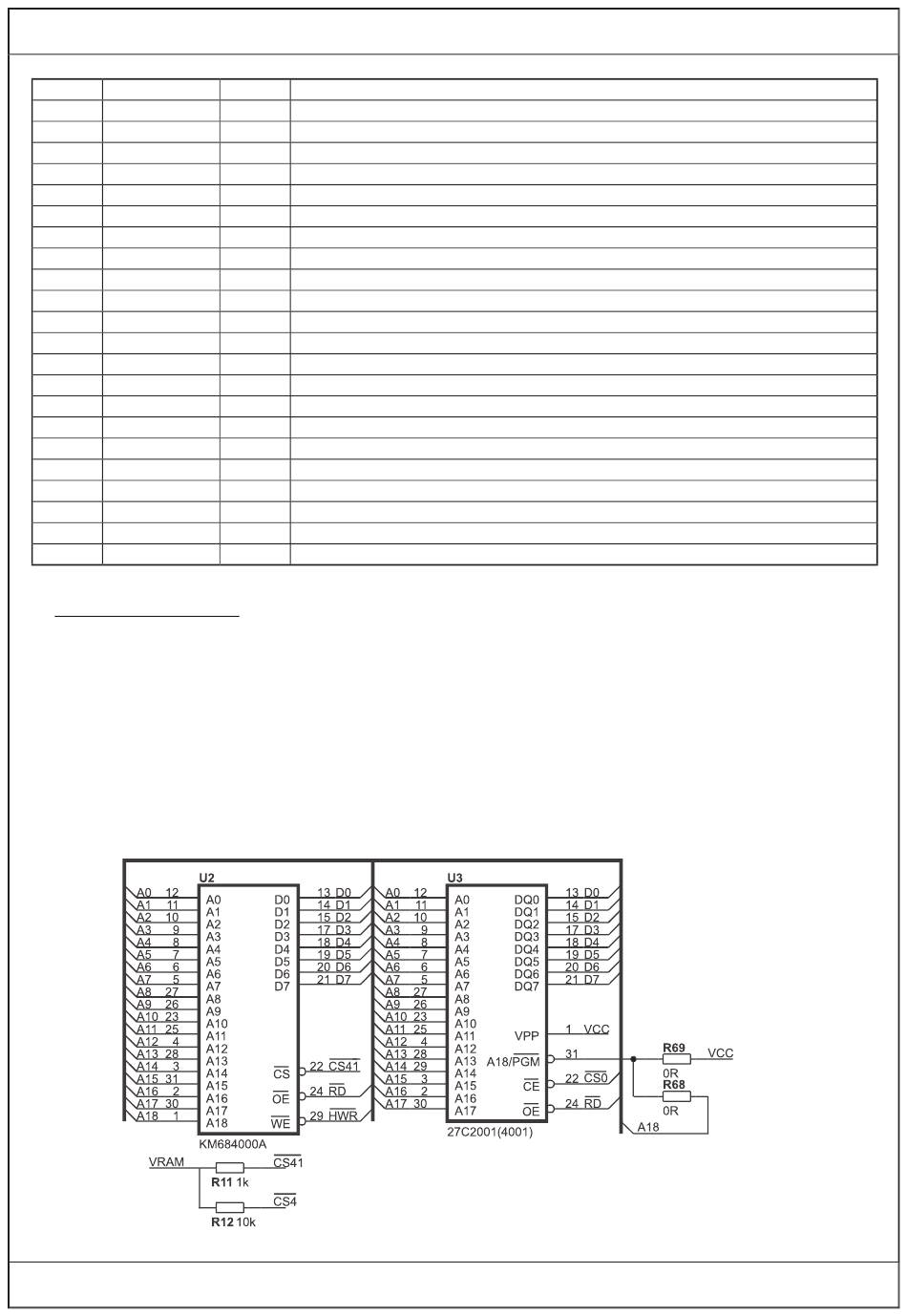

Fig. 2.6: Memory connection scheme
