Tab. 4.5: Table Of Viewed Parts - ELCOM EURO-2500 Service Manual

Service manual Service manual Service manual Service manual Service manual Service manual Service manual Service manual Service manual Service manual

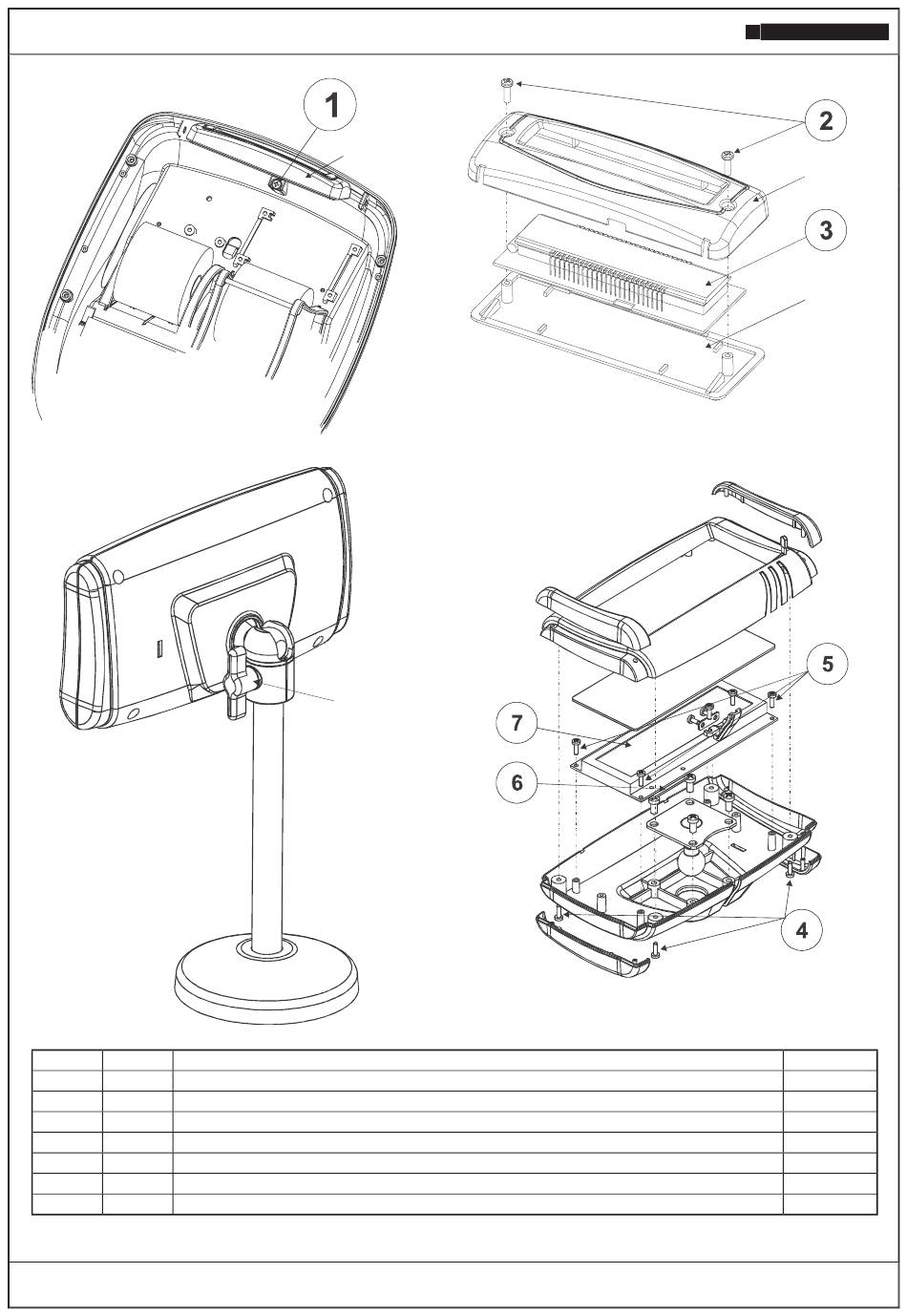

Fig. 4.17: Customer segment display fitting
Fig. 4.19: Butterfly screw Fig. 4.19: Butterfly screw
placed on the joint of the placed on the joint of the
LCD stand
Index Quantity Description
1 1 Screw 3,9 x 9,5
2 2 Screw 2,9 x 9,5
3 1 Customer display module
4 4 Screw 2,9 x 9,5
5 4 Display module screw 2,9 x 6,5
6 1 PCB of external display
7 1 Extermal display module

Tab. 4.5: Table of viewed parts

40
����������������������
Fig. 4.18: Screws holding the customer display cover
���������������
Fig. 4.20: Alphanumerical display composition
© Elcom s. r. o.
�������������������
������������������
Code
M250036
M250018
M090014
M250018
M250017
P017040007
M090018
Euro 2500
TX
