9.7.2.1 Technical Data

Table 19: Technical Data for Mechanical Brake Option
Voltage
Voltage
Pel
Maximum brake torque

9.7.2.2 Dimensions

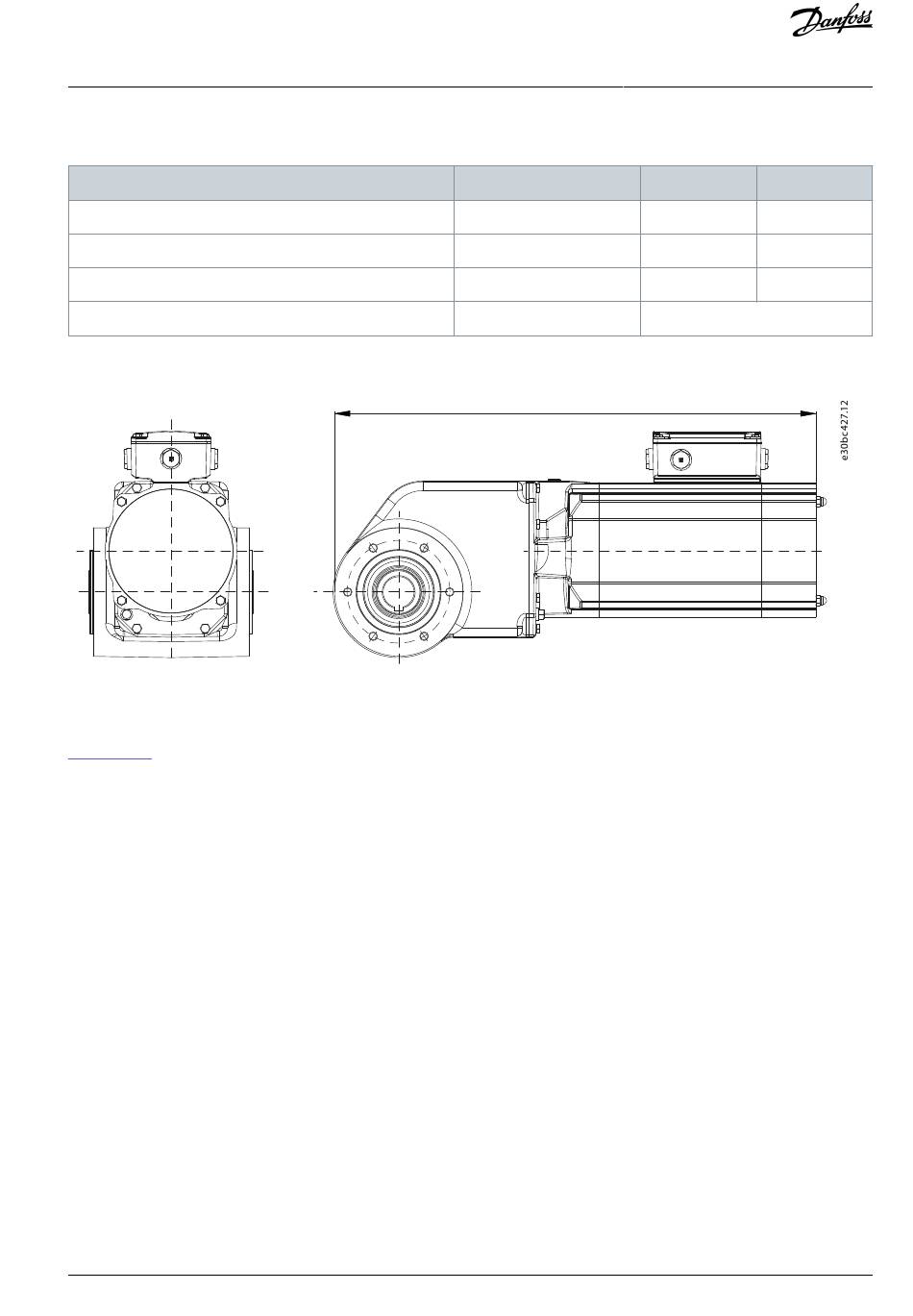

Illustration 31: Dimensions of VLT® OneGearDrive® with Mechanical Brake Option

9.7.2.3 Connections

Illustration 32 shows the cage clamp and the connections to the VLT® AutomationDrive FC 302.
Danfoss A/S © 2020.12
Unit
V DC
V AC
W
Nm (in-lb)
546
[21.50]
AQ347551551757en-000101 / 130R0239 | 37
Specifications
B180 B220
180 220
400 480
18 19
10 (88.5)
