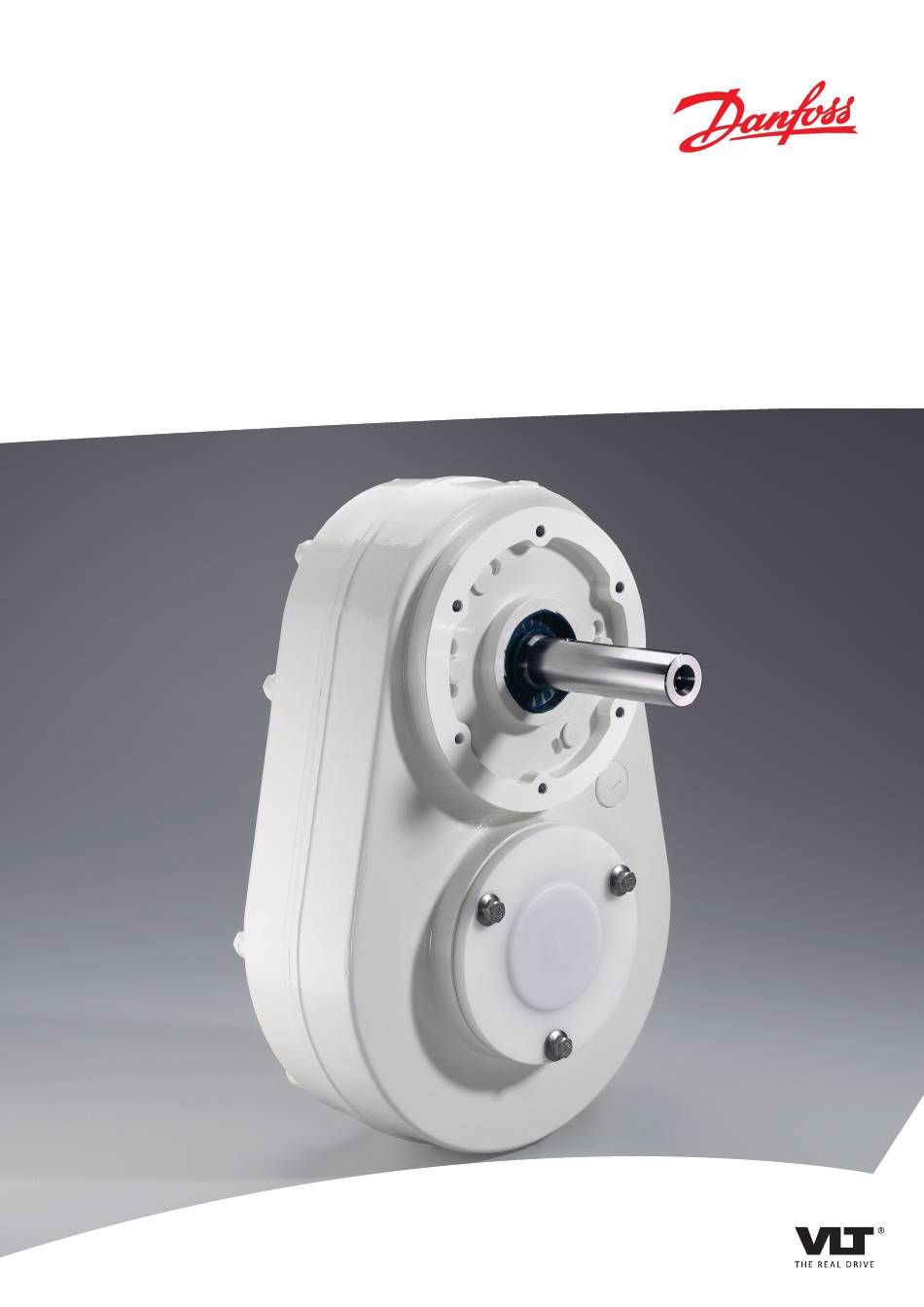

- Page 1 MAKING MODERN LIVING POSSIBLE Installation Guide ® OneGearDrive ExtensionBox™ vlt-drives.danfoss.com...
-
Page 3: Table Of Contents
2.1 Items Supplied 2.2 Mounting 2.2.1 Torque Arm 2.2.2 ExtensionBox ® 2.2.3 VLT OneGearDrive 3 Specifications 3.1 General Specifications and Environmental Conditions 3.2 Dimensions 3.2.1 ExtensionBox 3.2.2 Adapter Flange 3.2.3 Torque Arm for ExtensionBox MI75A102 Danfoss A/S © 02/2015 All rights reserved. -
Page 4: Safety Warnings
The purpose of this installation guide is to describe the ® installation of the VLT OneGearDrive ExtensionBox. Danfoss assumes no responsibility of any sort for damage attributable to improper use. NOTICE CAUTION The information is limited to that required for qualified personnel in normal working situations. -
Page 5: Installation
All other specifications can be found in chapter Assembly ExtensionBox to determine the position of the fastening ® ® Kit in the VLT OneGearDrive Operating Instructions. set. Also see chapter 2.2.3 VLT OneGearDrive for optional mounting positions. MI75A102 Danfoss A/S © 02/2015 All rights reserved. -
Page 6: Extensionbox
® in the VLT OneGearDrive Operating Instructions for further information. Assemble the ExtensionBox in 30° steps (see ® chapter 2.2.3 VLT OneGearDrive). Close the hollow shafts with the cover (see Illustration 2.4). Danfoss A/S © 02/2015 All rights reserved. MI75A102... -
Page 7: Vlt ® Onegeardrive
Adapter flange screw positions Table 2.1 Possible Adapter Flange Positions Tighten all 6 screws as shown in Illustration 2.3. Grease the ExtensionBox shaft. Mount the OneGearDrive to the ExtensionBox shaft as shown in Illustration 2.4. MI75A102 Danfoss A/S © 02/2015 All rights reserved. - Page 8 OneGearDrive ExtensionBox™ Position Quantity Item Comments Adapter – Washer DIN 125, A10.5 Adapter screw DIN 912, M10 x 30, tightening torque: 20 Nm Illustration 2.3 Assembly of the Adapter Flange to the OneGearDrive Danfoss A/S © 02/2015 All rights reserved. MI75A102...
- Page 9 Fit the plastic cap [2] (supplied) to close the hole on the ExtensionBox. Fit the hollow shaft cover [3] to the ExtensionBox. ® Refer to the VLT OneGearDrive Operating Instructions for further information. MI75A102 Danfoss A/S © 02/2015 All rights reserved.
-
Page 10: Specifications
[Nm] 0–850 [RPM] 0–31 Weight [kg] Table 3.1 General Specifications and Environmental Conditions 3.2 Dimensions 3.2.1 ExtensionBox All dimensions are in mm (inch). 543.4 (21.39) 224.4 (7.17) (8.83) Illustration 3.1 ExtensionBox Dimensions Danfoss A/S © 02/2015 All rights reserved. MI75A102... -
Page 11: Adapter Flange
(0.94) Illustration 3.2 Adapter Flange Dimensions 3.2.3 Torque Arm for ExtensionBox All dimensions are in mm (inch). (14.96) ±0.5 ±0.0197 (13.78) 86.5 (3.41) 31.5 13.5 (0.53) (1.24) Illustration 3.3 Torque Arm Dimensions MI75A102 Danfoss A/S © 02/2015 All rights reserved. - Page 12 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
