4.12 Final Assembly

1

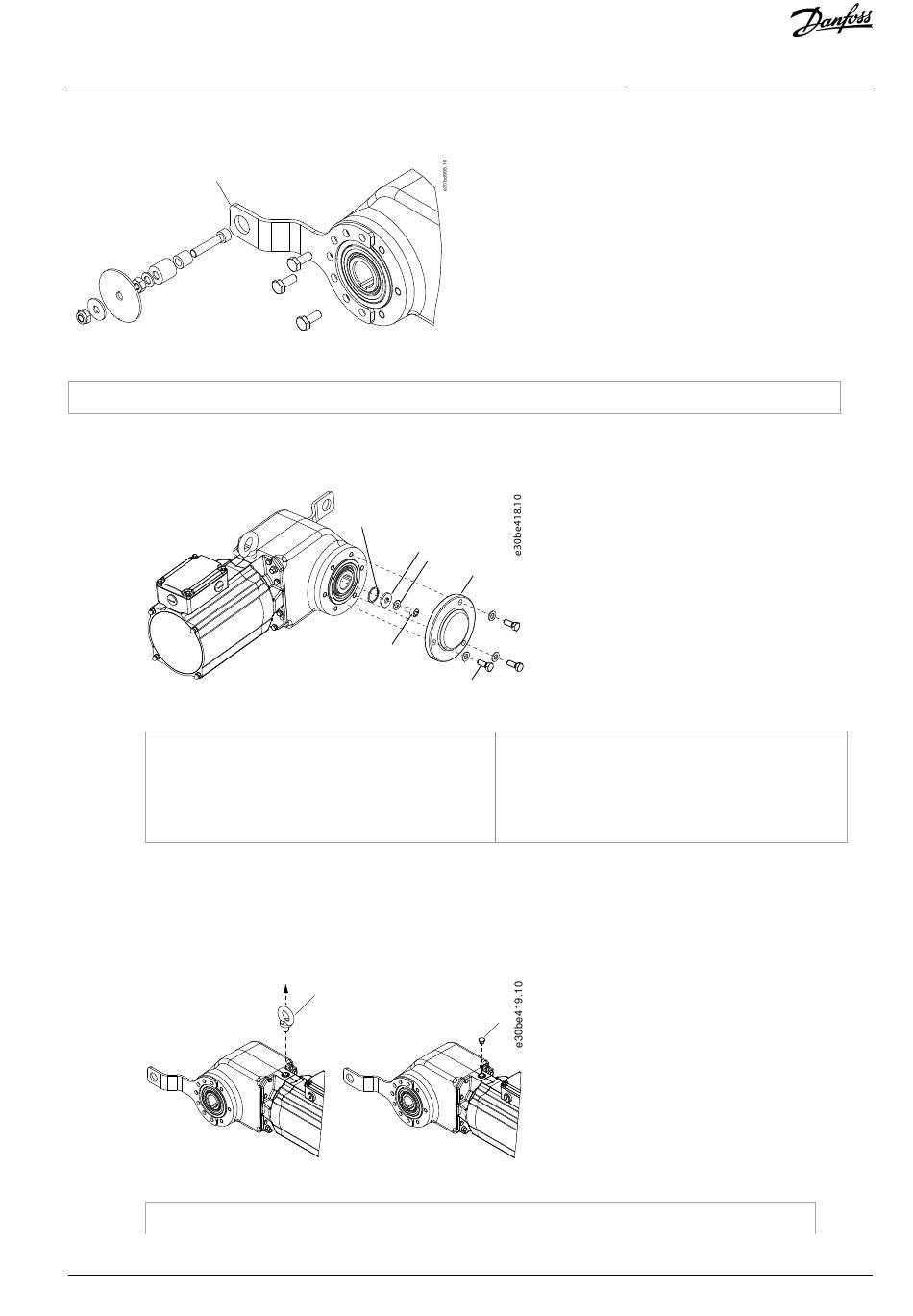

Illustration 4: Final Assembly
1 Torque arm (optional)
Procedure
1.
Assemble the VLT® OneGearDrive® to the shaft with the assembly kit.
-
Illustration 5: Assembly of the Mounting Arrangement and the Hollow Shaft Cover
1 Retaining ring
2 Disk
3 Lock washer, DIN 7980
2.
Assemble the hollow shaft cover [3] onto the VLT® OneGearDrive® using the 3 shaft cover screws [4].
- Fasten the screws by hand.
- The tightening torque is 4.5 Nm (39.8 in-lb).
3.
After installation, remove the eyebolt [1] and cover the hole with the plastic cap [2]. This ensures the hygienic features of a
smooth surface.
-
Illustration 6: Exchanging the Eyebolt with the Plastic Cap after Installation
1 Eyebolt
Danfoss A/S © 2020.12
1
2
3
4
6
5
1
4 Shaft cover
5 Shaft cover screws
6 Screw (not included)
2
AQ347551551757en-000101 / 130R0239 | 15
