VLT® OneGearDrive®
Operating Guide
Table 15: Oil Volume
Oil volume [l (fl oz)]
1 P1 is no longer available in the Danfoss DRIVECAT configurator. Use P2 also for P1 installations.

8.5.4 Changing the Oil

DANGER OF BURNS
The surface of the VLT® OneGearDrive® and the oil in the VLT® OneGearDrive® can reach high temperatures during operation.
-
Do not touch the VLT® OneGearDrive® until it has cooled down.
-
Do not carry out an oil change until the oil has cooled sufficiently.

8.5.4.1 Draining the Oil

1

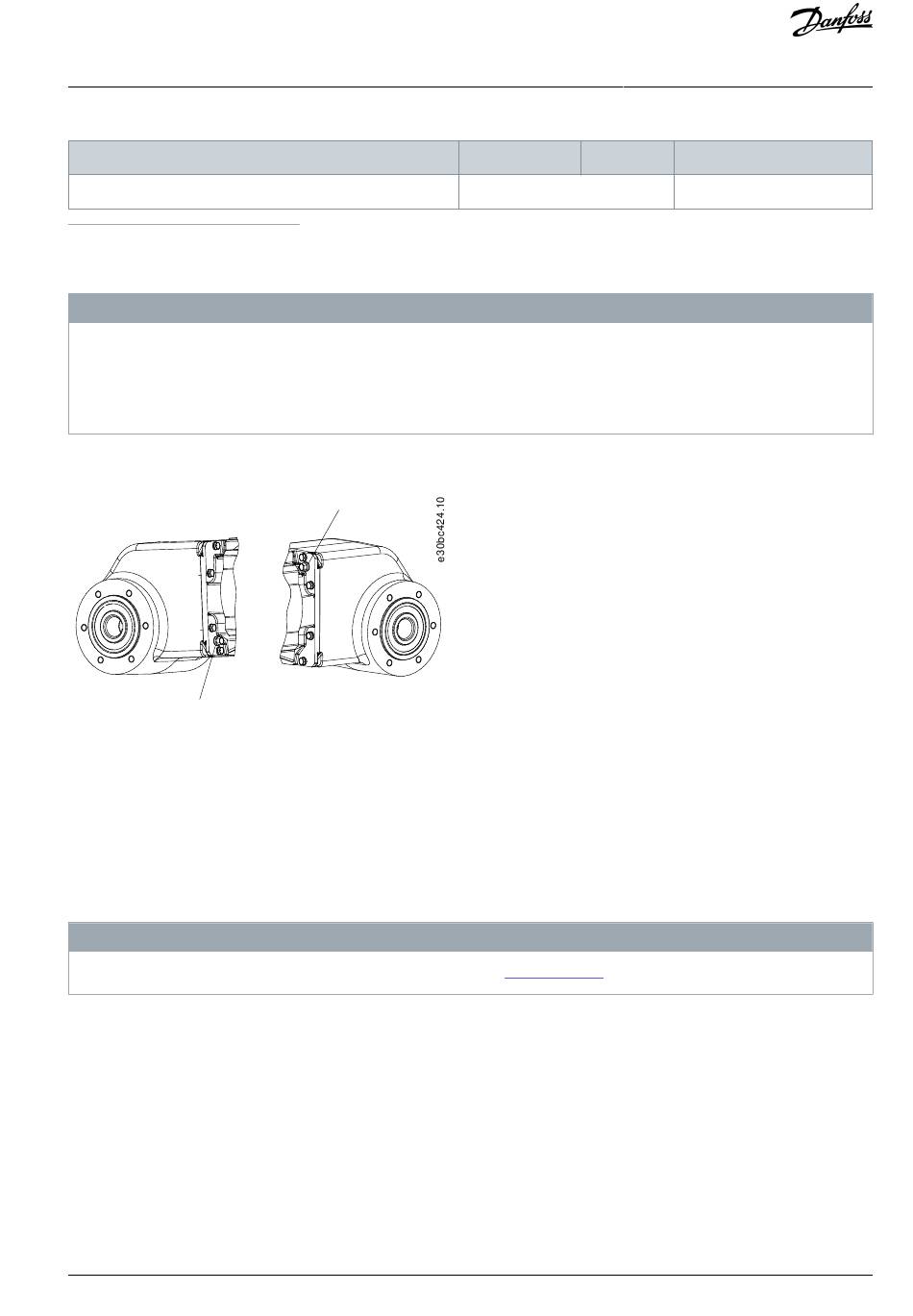

Illustration 13: VLT® OneGearDrive® Oil Screws 1 and 2
Procedure
1.
Once the VLT® OneGearDrive® and the oil have cooled down, remove the VLT® OneGearDrive® from the system.
2.
Bring the VLT® OneGearDrive® into a vertical position and remove oil screws [1] and [2].
3.
Turn the VLT® OneGearDrive® into a horizontal position and drain the oil through screw hole [1] into a suitable container.
4.
Turn the VLT® OneGearDrive® back into a vertical position.

8.5.4.2 Filling the Oil

-
The required oil quantities can be found on the nameplate and in
Procedure
1.
Fill the VLT® OneGearDrive® with the appropriate amount of oil through screw hole [1].
2.
Check that the oil level is correct using the oil dipstick supplied with the optional oil check service kit
3.
Remove all traces of oil from the surface of the VLT® OneGearDrive® using a soft cloth.
4.
Reinsert and tighten oil screws [1] and [2] with tightening torque 7 Nm (61.96 in-lb).

8.6 Spare Parts

Contact the local Danfoss sales company for information on spare parts.
Danfoss A/S © 2020.12
P1
(1)
N O T I C E
2
N O T I C E
8.5.3 Oil
Maintenance, Decommissioning,
P2 P3
2.2 (74.4) 3.1 (105)
Volume.
AQ347551551757en-000101 / 130R0239 | 27
and Disposal
