Element Management Transponder Installation/Replacement

The Flex Max901e can be monitored and controlled through the Value Max transponder. The
transponder collects all Management Information Base (MIB) and electronic Module Architecture
Profile (eMAP) data and transmits it to the headend. A laptop can be connected to a transponder on
an individual module in order to monitor and control the module's parameters.

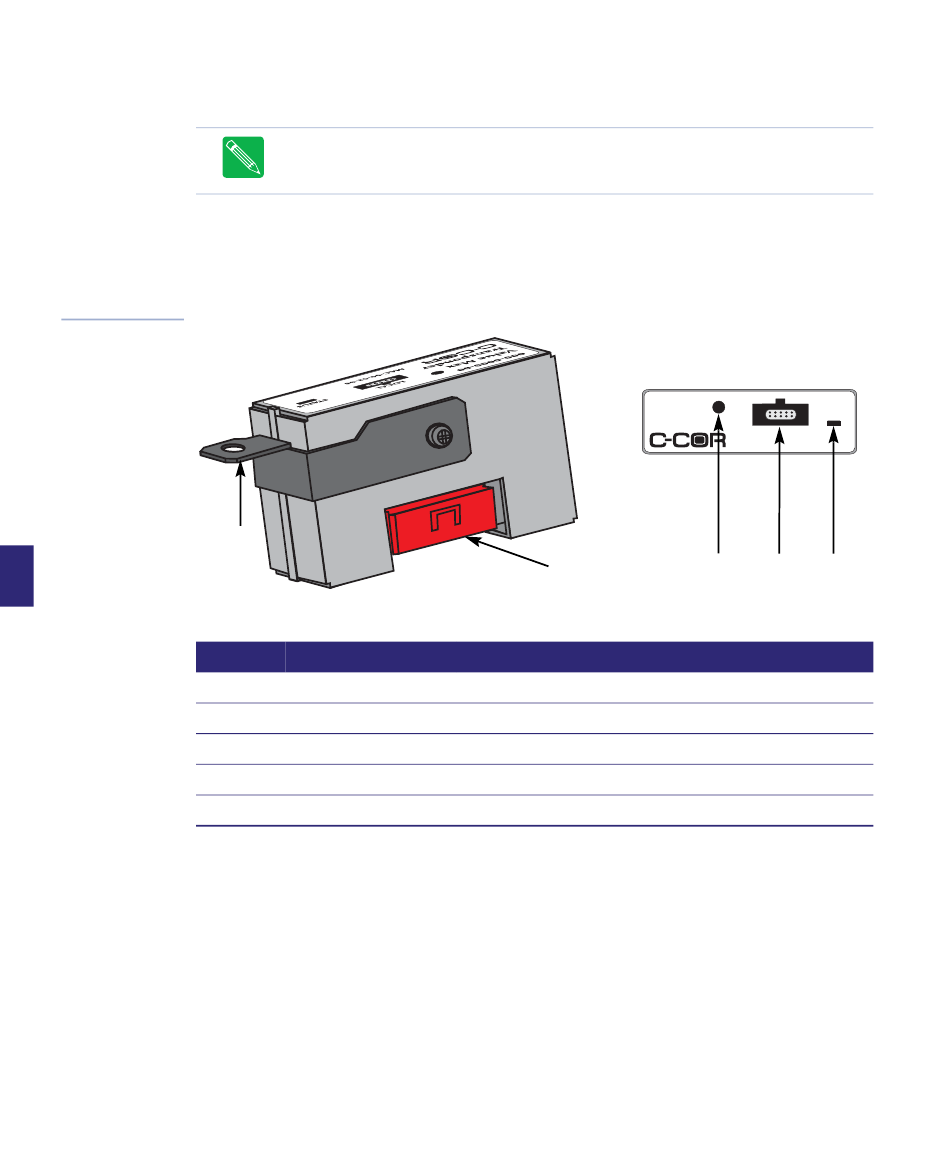

Figure 7.4
Transponder
Identification
7
7-10 Flex Max901e 1GHz Trunk and Bridger Amplifiers
Note Using element management software, the transponder monitors and controls
Flex Max901e functions. The element management software will automatically
recognize the transponder. Requires Windows 2000 or higher.
1
Table 7.2 Transponder Identification
Item Label
1 Grounding Bracket
2 Interface Connector
Tamper Photo Detector
3
4 LOCAL
5 STATUS
2
Function
Connects transponder to ground
Provides connection to RF board and element management system
Detects open lid
Provides local port for bench interface procedures
LED indicates transponder status
Actual size
LOCAL
Value Max
STATUS
Transponder
xx-xx-xx-xx-xx-xx
MAC ADRS:
xxxxxx
AM ADRS: H
3 4 5
