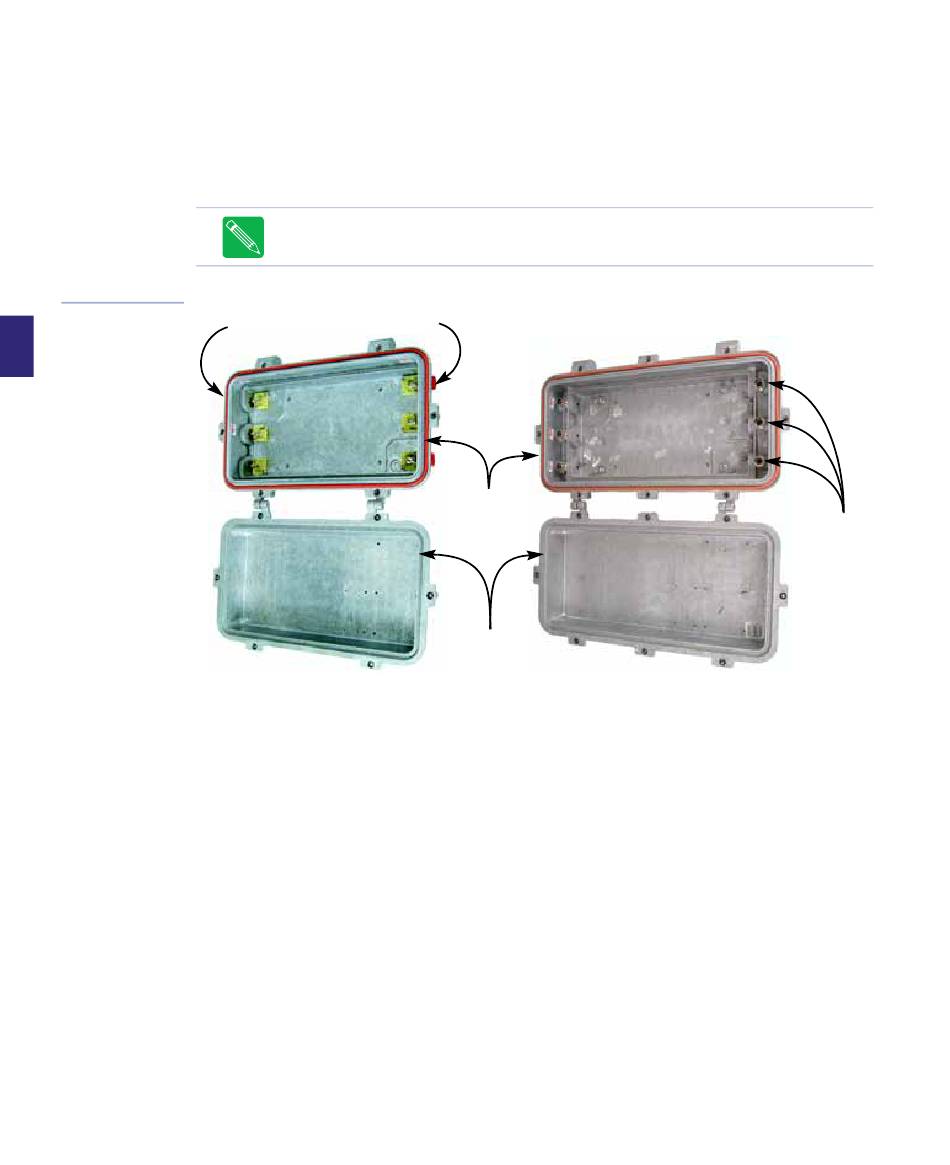

Figure 4.2
Housing Inspection
(Inside)
4
4-4 Flex Max901e 1GHz Trunk and Bridger Amplifiers
3. Open the housing. Refer to Housing Opening on page 4-5 as needed.
4. Inspect the inside of the housing:
a. Inspect the rubber gasket on the housing base.
b. Inspect the metal mesh gasket on the housing lid.
c. Be certain they are well seated and unbroken.
Note The rubber gasket can be replaced. If the metal mesh is damaged, the housing
must be replaced.
Port 4
Port 1
Standard 6-port Housing
5. Before closing the housing:
a. Determine the orientation of the module in the housing for your application. See
Figure 7.3 on page 7-8 for the orientation options and RF Module Replacement on
page 7-7 for instructions on installing an RF module. Install the module now or after
the housing is mounted. Cable attachment may be easier without a module installed.
Refer to RF Module Replacement on page 7-7 for instructions on installing an RF
module.
b. If desired, install plug-in accessories. Installing accessories at this point is often
more convenient than after the housing is mounted. Always install the accessories
before the unit is powered on in order to prevent damage to the hybrid. Accessory
values can be found on system maps.
6. Close the housing. Refer to Housing Closing and Tightening on page 4-19, as needed.
7. If additional space is needed between the unit and the strand or structure, ensure that you
have the appropriate extension mounting bracket (EMB) kit. Refer to Strand/Pedestal
Mounting With Extension Mounting Brackets (EMBs) on page 4-8 or Wall Mounting With
Extension Mounting Brackets (EMBs) on page 4-12. EMBs are not included with the unit but
may be purchased separately. Contact your C-COR sales professional for ordering
information.
Rubber
Gasket
Mesh
Gasket
Bypass 6-port Housing
Bypass Port
Connections
