Housing Closing and Tightening

To close the housing
1.
2.
3.
4.
5.

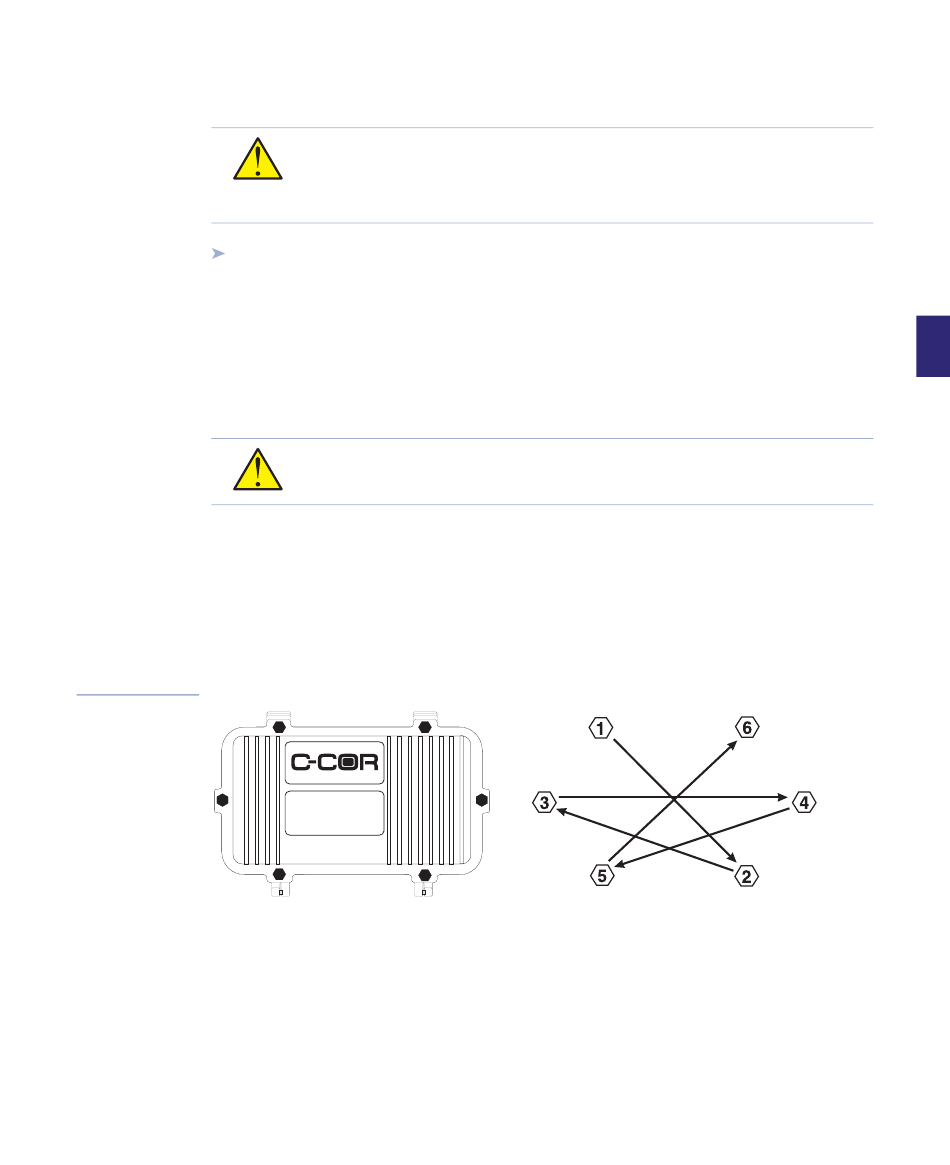

Figure 4.12
Housing Closing and
Tightening Sequence
1502154 Rev D
CAUTION Ensure that no wire scraps or foreign materials remain within the
.
housing
CAUTION Close the housing whenever it is left unattended to keep moisture out of
the unit and protect the network from RF interference.
Examine the rubber gasket and mesh seal. Remove all foreign materials that could interfere
with proper sealing. Dry any moist areas.
Close the lid until it is flush with the rubber gasket. Thread all six bolts finger tight to hold
the lid in place. Ensure that the lid seats evenly on the rubber gasket.
Tighten the lid bolts with a 7/16 inch (11 mm) nutdriver, following the pattern shown in
Figure 4.12. Observe that the lid seats on the rubber gasket.
CAUTION Do not torque the lid bolts more than 40 in-lbs (4.5 N·m).
Overtightening may warp the housing—allowing moisture to enter and damage the
components—or cause the threaded inserts to spin.
Continue the tightening sequence, torquing to between 35 and 40 in-lbs (4.0 and 4.5 N·m)
with a torque wrench. The lid should now seat evenly and compress the rubber gasket to
create a weatherproof seal.
If the housing is equipped with external testpoints, install testpoint caps on all testpoints
and finger tighten. Use a wrench to tighten the caps an additional one quarter to one half
turn.
